Installation
5 · G&D DVI-Extender-F
Installing the transmitter
The computer, whose video signal is transmitted to the console is connected to the
transmitter (DVI-Extender-F-CPU).
Connecting the interfaces on the back panel
Service: When asked by the service team, connect the service cable (USB-Service-2) to
this interface.
DVI-D CPU: Connect the computer’s video output to this interface. For this purpose,
use the DVI-D-SL-M/M-2 cable.
Connecting the interfaces on the front panel
The transmitter’s front panel provides interfaces that are described in the following.
Transmission: Insert the SC plug of the fibre optic cable, which is available as acces-
sory, into this interface. Connect the other end of the cable to the Transmission inter-
face of the receiver.
Power: Insert the supplied power pack.

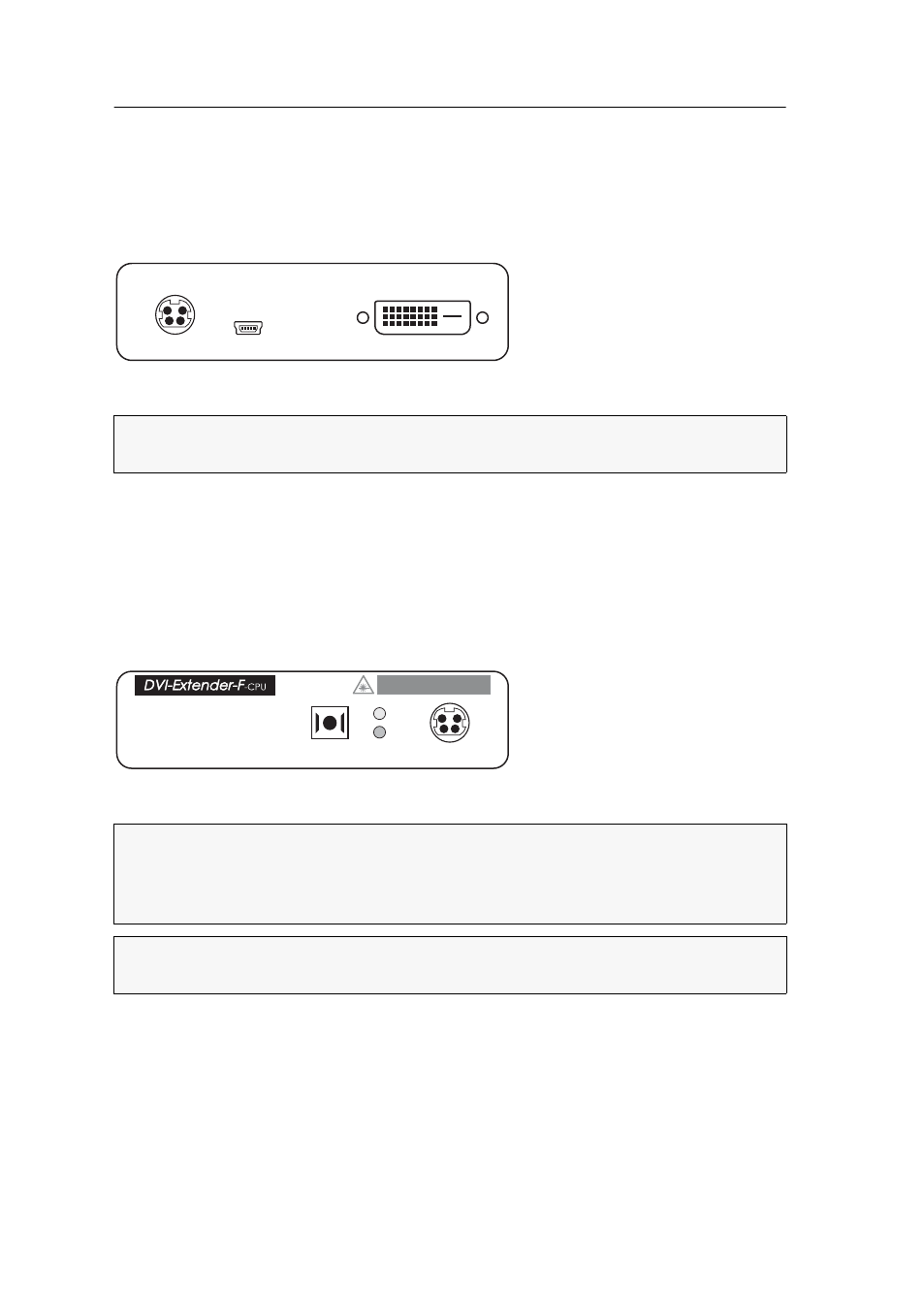

Figure 1: Back view of the transmitter
NOTE: Information on how to supply another xtender with power using the
Power Loop interface is given on page 7.
Figure 2: Front view of the transmitter
IMPORTANT: The device uses components with laser technology which comply
with laser class 1M. Although class 1M laser are considered as being nonhazard-
ous, direct eye contact should be avoided. Do not stare into the beam or view
directly with optical instruments.
NOTE: Remove the protection cap from the Transmission interface and from the
cable plug.
Service DVI-D CPU Power Loop
Class 1 M Laser Product
Power In Transmission
Video
Link
