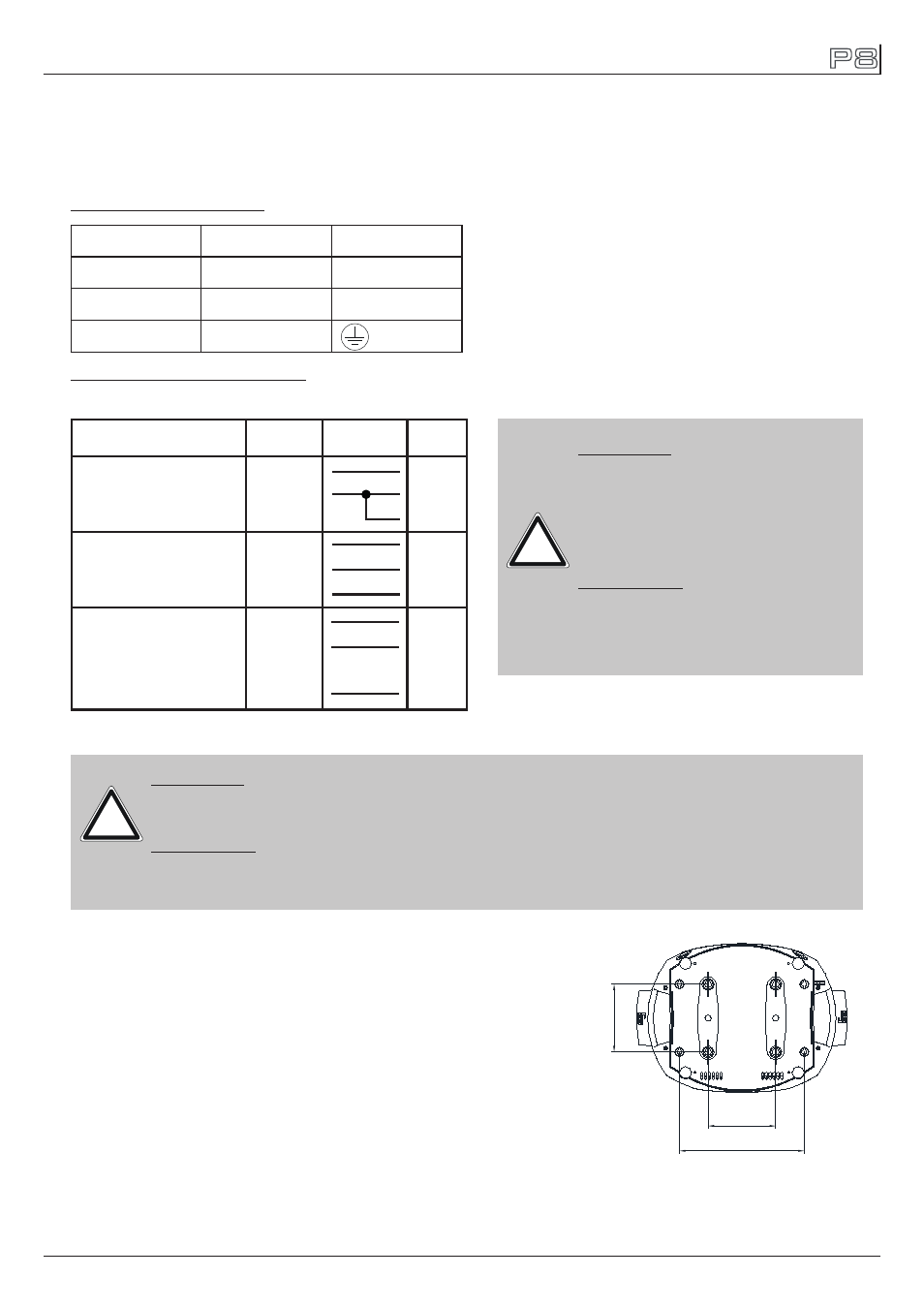

Connection non EU-modell:
The P8 may only be connected to mains supply systems according to this drawing:
mains P8
2 conductor
1 phase L
N L
N
PE
3 conductor
1 phase L
N
L L
PE
N
4 conductor
3 phase L
1
L
2
L
3
N
L
N
PE
WARNING:
P8 only can be used in
Canadian mains supply system
with 2 cond., 1 phase with max.
120V!
ATTENTION:
Le A8 peut être utilisé au Cana-
da avec 2 conducteurs, 1 phase
et une tension maximal de 120V!
!
4.2 Rigging the fixture
WARNING: Keep fixtures at least 3,0 m away from inflamable articles!
Always use a safety cable attached to the base!
ATTENTION: Respecter une distance minimale de 3,0 m entre le projecteur est
d‘éventuelles objets inflammables! Sécuriser toujours le P8 avec
une élingue de sécurité appropriée!
!
The P8 can either be placed on the floor or hang on a
trussing system in any position. When placing the unit
on the floor make sure that it stands on rigid ground,
because the air inlets in the base must not be covered
with anything! To mount the unit on a trussing system
use two of the original JB-Lighting omega brackets with
Camloc-connectors. The Camlocs must snap in to be
locked propperly. Always attach a safety cable to secure
the unit.
The P8 is supplied with a power cable with a Neutrik PowerCon connector. Install a 3-prong
grounding type plug that fits your supply. US model comes without power cable and connectors.
Required cable type see 3.5 page 24. Connected load: voltage 100-240 V, frequency 50 - 60 Hz
Connection EU-modell:
Color Function Symbol
brown Live „L“
blue Neutral „N“
green/yellow Ground
140
258,4
140
