27
VARYSCAN 4 COMPACT PLUS 575 HMI
3. JB-lighting 6 channel drive mode
channel 1 x-motor
channel 2 y-motor
channel 3 gobo
channel 4 colour
channel 5 dimmer/shutter
channel 6 iris/gobo rotation

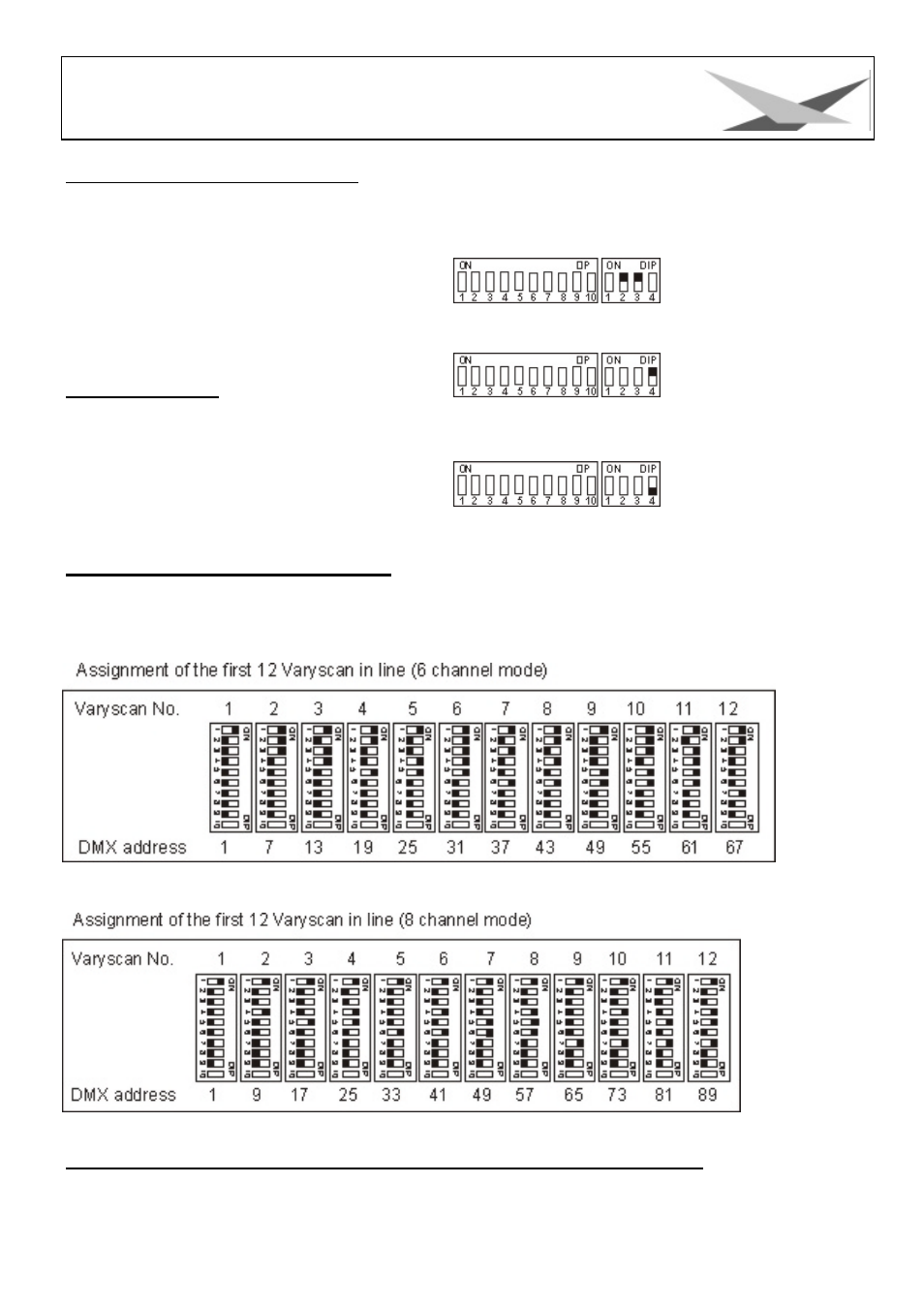

DIP-switch position: DIP-switch No.2 switch 2 and 3 on
Reset on DMX :
DIP-switch No.2 switch 4
If you would like to reset your Varyscan
® from your DMX-desk, turn switch 4 on at DIP-switch No.2. Now you have
the possibility to reset your Varyscan ® , if you transmit DMX-factor 255 via gobo channel.
If switch 4 at DIP-switch No.2 is turned off, reset on
DMX is not possible.
Adjustment of DMX-Addresses : DIP-switch No.1 switch 1-9
Depending on the optional drive mode, you have to adjust DMX-addresses as follows. The addressing works by a
binary numeral system and in 6 channel drive mode it has to follow in six steps.
In 8
channel drive mode addresses have to be adjusted in 8 steps.
Definition of DIP-switch positions for defined DMX-addresses
