VARYSCAN 4 COMPACT PLUS 575 HMI

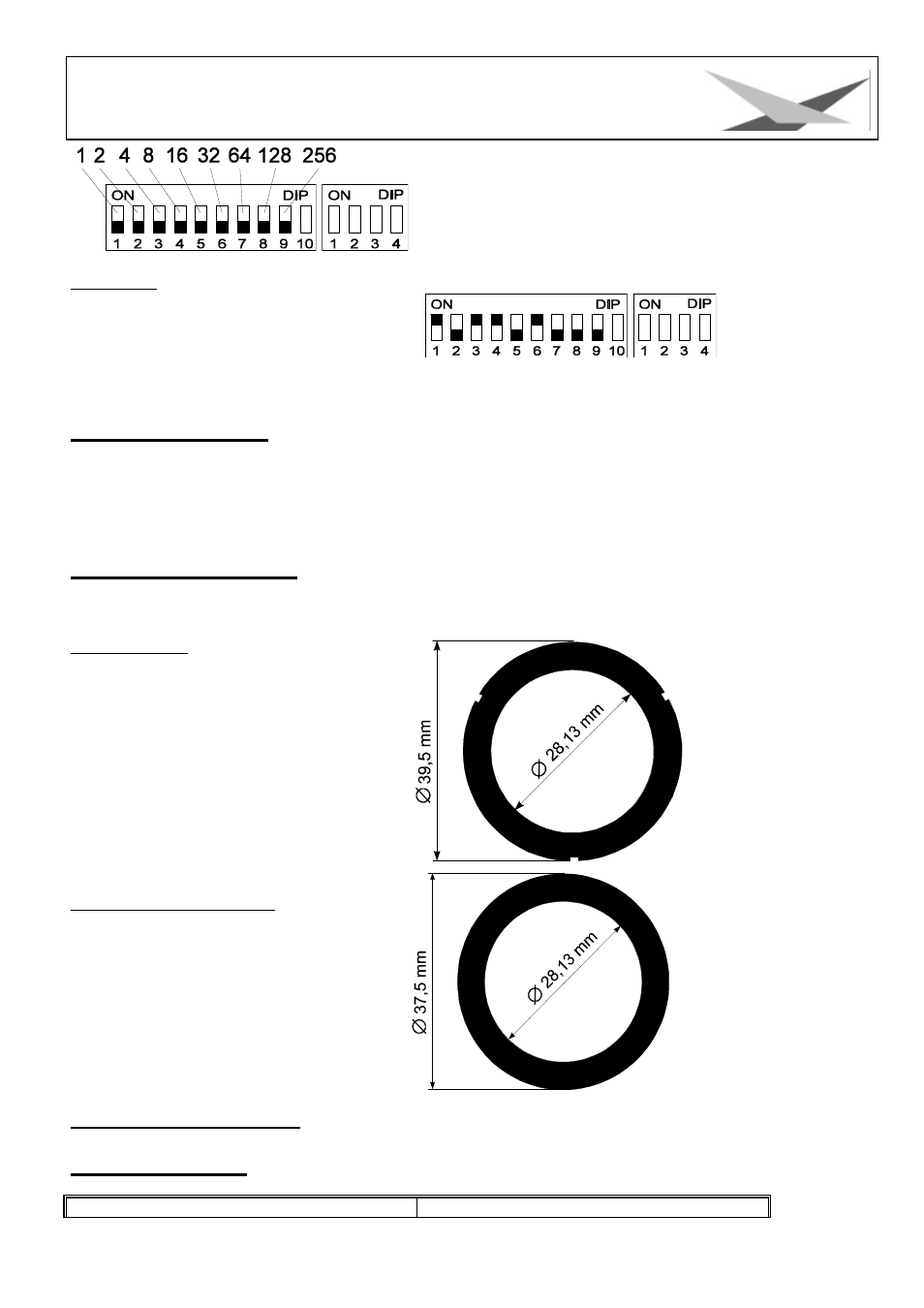

Every single DIP-switch responds to the above designated
figures. If you would like to adjust a defined DMX-address, you
have to add up the single figures to get it.
For example: DMX-address "45"
32 + 8 + 4 + 1 = 45
SW6 SW4 SW3 SW1
on on on on
All remaining DIP-switches SW9 SW8 SW7 SW5 SW2 stay in position "OFF".
Changing of gobos
Open the lid with the label Varyscan
® 4 Compact Plus 575 HMI, by screwing off the four screws. After opening you
should unscrew the silver screws on the side of the Varyscan ® to put out the slides. Now you are able to press the
gobos at the gobo wheel out of their holder and then put in other gobos. Take care that the gobo engages exactly
with it's slits in the holder. If the gobo is put in correctly, it moves easily inside the holder. Now you can close the lid.
GOBO measurements
With your Varyscan ® , you have the chance of using two different gobo sizes.
1. Gobos JB-size
Outside diameter:
39,5 mm
Use diameter: 28,13 mm
The three slits are placed in an angle of
120° and they are 3,2mm long and 1mm
deep
2. Standard size (E-size)
Outside diameter:
37,5 mm
Use diameter: 28,13 mm
B Service instructions
Repair of defects
Defect Reparation
