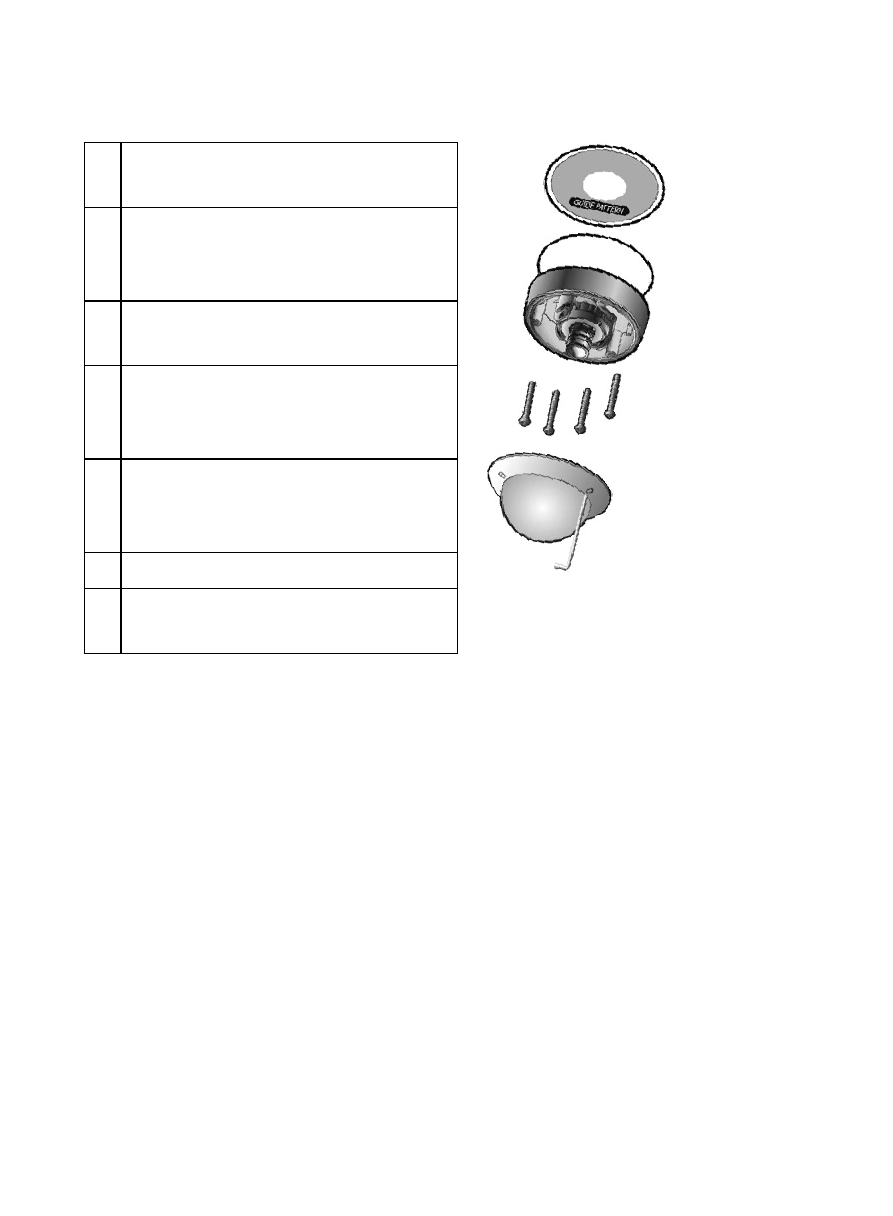

Guide pattern
Dome base
Mounting screw
Rubber
Dome cover
L-wrench
4. Mounting of the Surface Housing (VKCD-1335SMH/VF, # 92577)
1 Stick the guide pattern on the wall
or ceiling.
2 Drill four holes according to the
guide pattern then insert anchors
into the drilled holes.
3 Draw out power / video wires to
the connecting places.
4 Attach the camera base to the
celling or wall using the supplied
four screws.
5 Adjust desired focus and scene
by turning and moving the 3-axis
camera bracket by hand.
6 Put the dome cover over the base.
7 Fix the dome cover on the base by
L-wrench.
