5. Installation and Function
1 Tilt rotation Adjusting the vertical angle
2 Pan rotation Adjusting the horizontal angle
3 Horizontal rotation Adjusting the horizontal position of the screen
4 Focus handle Focus (Far or Near)
5 Zoom handle Zoom (Tele or Wide)
VKCD-1335SMH/VF, # 92577
VKCD-1333SM/49, # 92575 and
VKCD-1334SM/210, # 92576

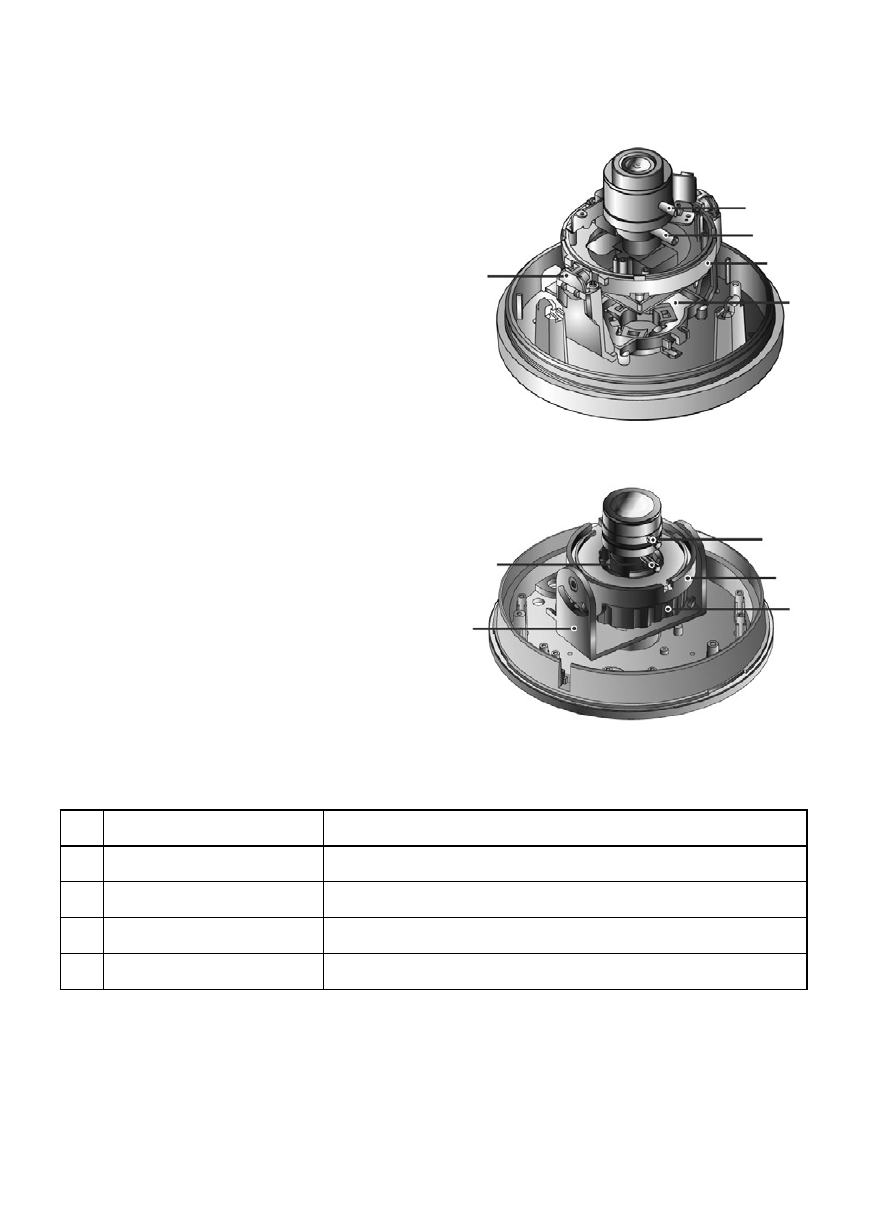

Camera Lay-out
