ENG14
Engl
ish
Connection
General information
x
Assure that the device is switched off and unplugged.
x
Read the manual of your TV and attend to the safety instructions.
x
Please establish an accurate connection.
x
Please check the video output settings.

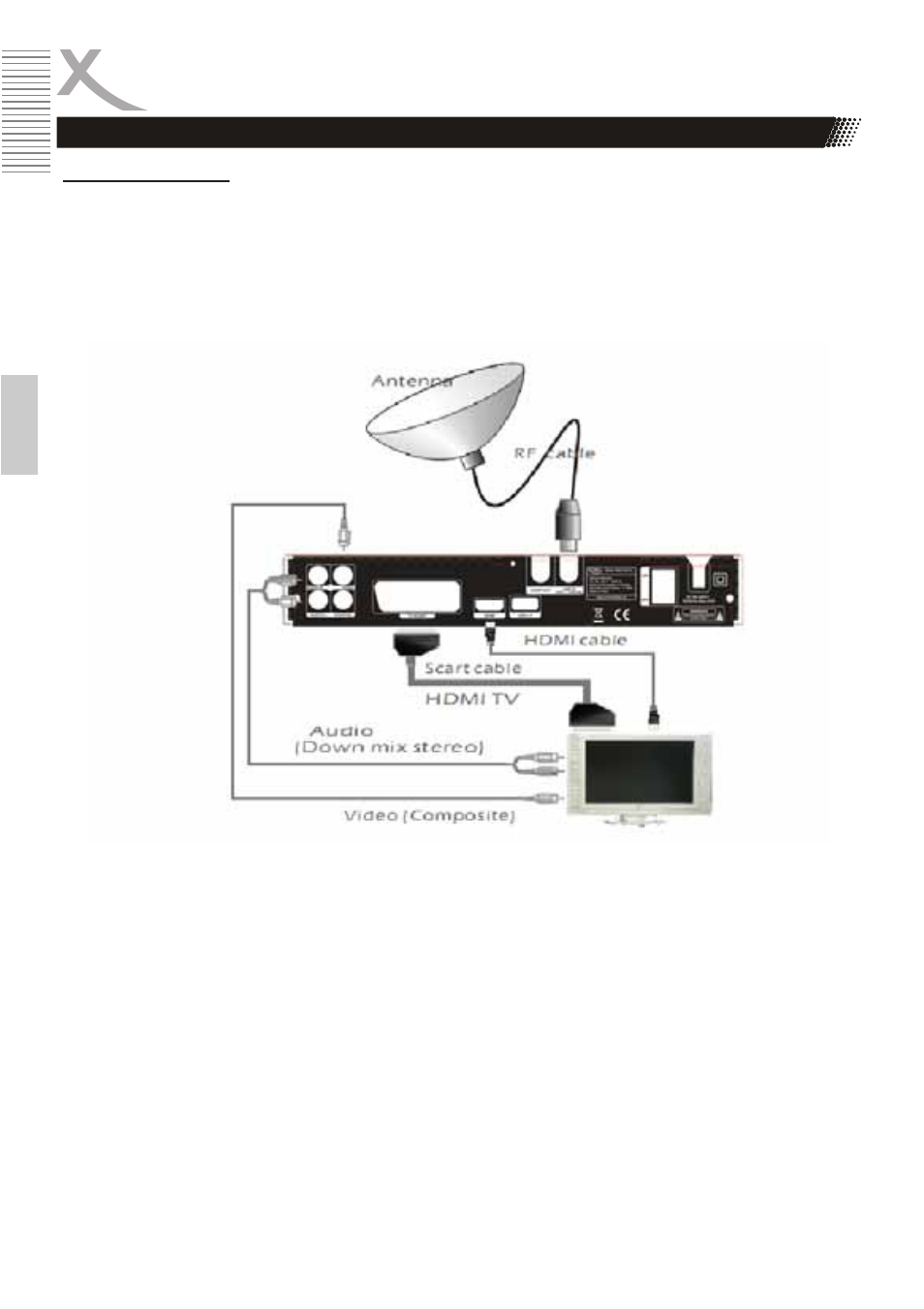

The schematic picture shows the connection of the Receiver to the satellite dish and the TV.
Installation Guide
1.
Connect a SCART or HDMI cable to the DVB-S receiver.
2. Connect the aerial cable to the aerial input (LNB IN) of the Receiver. Screw the plug to the
input.
3. Connect the SCART or HDMI cable to the TV set.
3. Plug the power cable to the wall outlet.
4. Switch on your DVB-S receiver and the TV set.
5. Choose the correct input (SCART or HDMI) at your TV.
Notes:
1.
By using the loop through connector you can connect for example a second DVB-S Receiver.
2. You can connect the receiver as well by Video Composite cable (CVBS) to the TV set.
Connecting to the dish and TV
