3. Using multiple satellites via DiSEqC 1.1
The distribution of analogue and digital signals from the Astra and Eutelsat is using DiSEqC™ (Digital
Satellite Equipment Control) is possible if only one cable to be laid to the satellite receiver. This new
tax system complements the conventional switching criteria, 13/18 Volt or 22 kHz, and removes the
restrictions on maximum 4 switching states. The simplest version of DiSEqC™ is used between two
universal LNB switch . The 22 kHz switching circuit is used for the lower and upper frequency band
LNB.
How to do:
1. Select multi satellites in Satellite List
menu, and confirm the selection with the OK
button.
2. Press “EXIT” button to exit the Satellite List
menu.

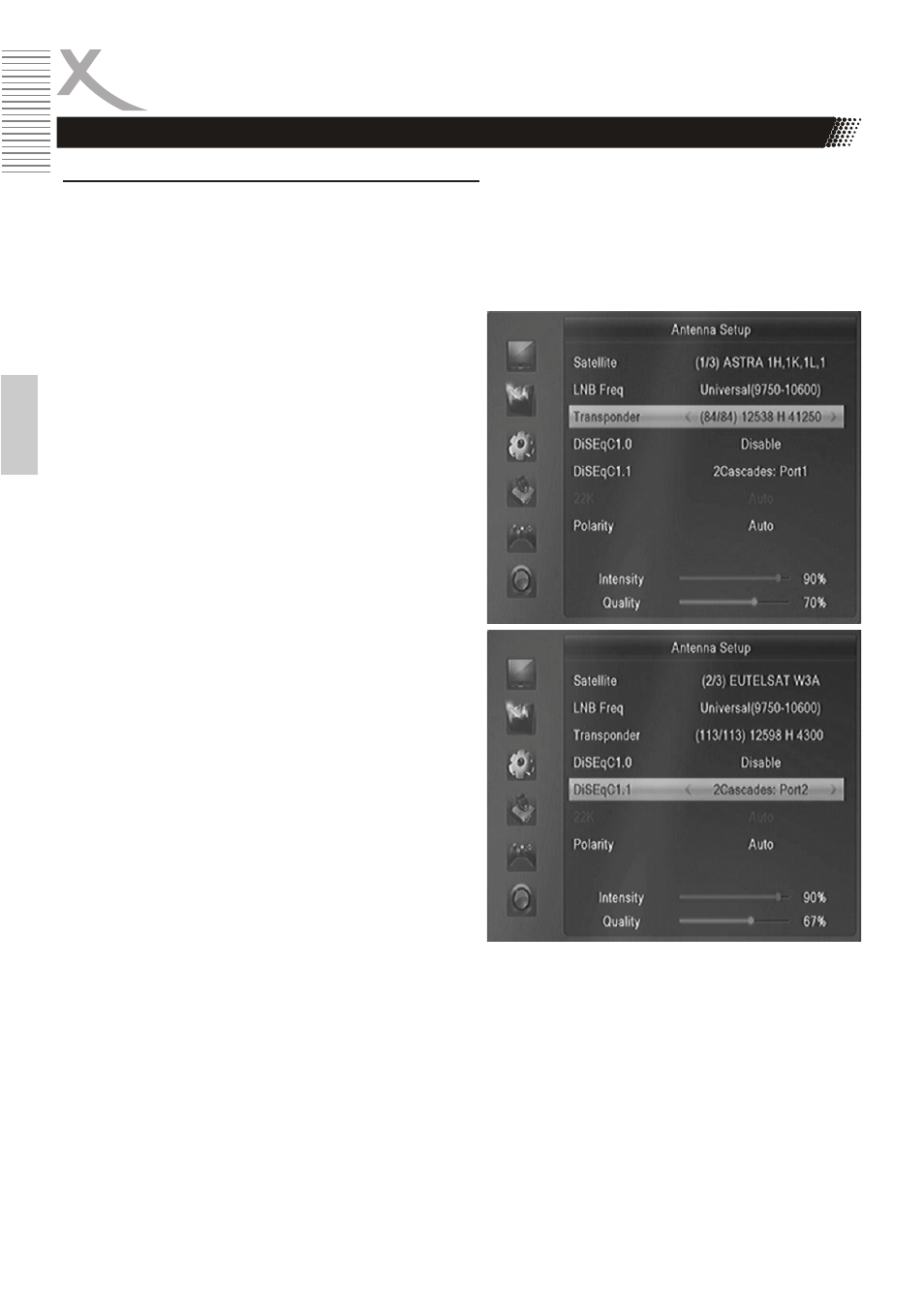

3. Enter the Antenna Setup menu for set the
configuration of the satellite.
4. Navigate with the arrow key DOWN to the
DiSEqC1.1 . Select the “2Cascades:Port1”
with LEFT/RIGHT key .
5. Navigate with the arrow key DOWN to the
Satellite . Select the other satellite you want
with LEFT/RIGHT key
6. Navigate with the arrow key DOWN to the
DiSEqC1.1 . Select the “2Cascades:Port2”
with LEFT/RIGHT key.
7. And so on
8. Press EXIT button to exit the Antenna Setup
menu.
9. Enter the search menu (Single satellite
search/Multi satellite search/TP search).
Navigate with the arrow key DOWN to the
Search . And then start searching with OK
button

You have the option of up to 16 satellites. And then enter search menu to scan. In search menu,
G
you
can specify additional search parameters (see previous pages). The satellites are searched in order.
All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio
stations in the two lists are stored and the unit goes into the live image of the first TV station.
