13
40
80
25
ML+27
6
M6
(M5)
M6
(M5)
50
ISO 4762 M6
(ISO 4762 M5)
ISO 4762 M6
(ISO 4762 M5)
35
ISO 7092 6
(ISO 7092 5)
ISO 4762 M6
ISO 4032 M6

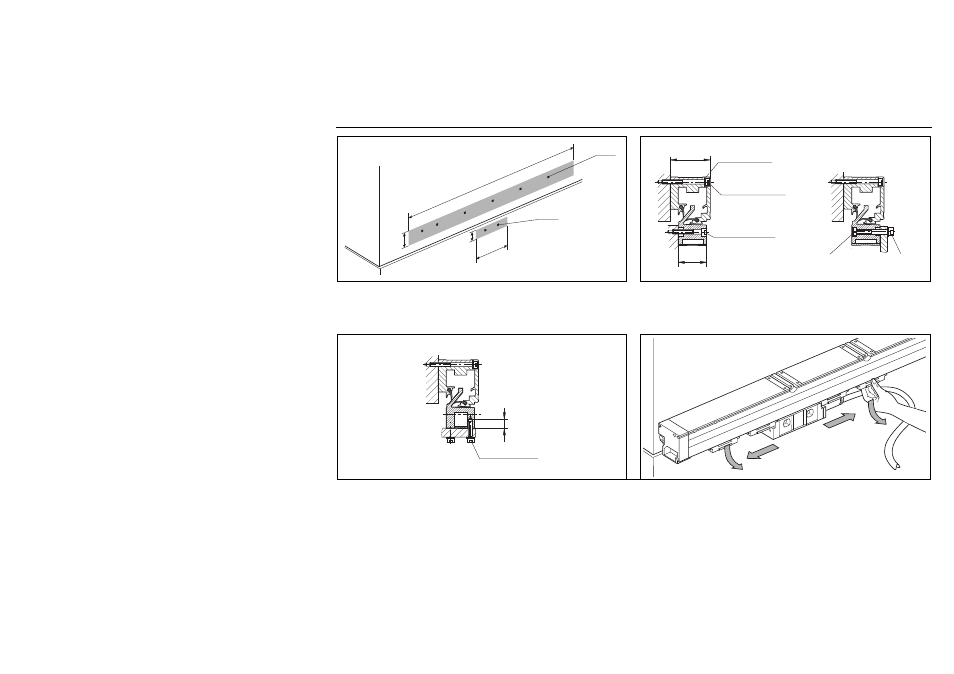

Bohrungen bzw. Gewinde anbrin-
gen. Die Anbaufläche muss lack-
frei sein.
Drill and tap fixing holes. Remove
paint from mounting surface.
Messgerät befestigen.
Schrauben lose anziehen.
Secure the encoder.
Attach screws loosely.
8
ISO 4762 M5
Befestigungsmöglichkeit am
Deckel der Abtasteinheit.
Schrauben lose anziehen.
Mounting possibility on the cover
of the scanning unit. Attach
screws loosely.
Transportsicherung seitlich
herausschieben und abziehen.
Slide shipping braces away from
scanning unit and remove them.
Befestigung
Mounting
