HEIDENHAIN LB 382 Benutzerhandbuch
Seite 22
22
Spannungsversorgung
DC 5 V ± 0,25 V/150 mA (mit
Abschlusswiderstand Z
0
= 120 )
Power supply
5 V ± 0.25 V DC/150 mA (with
terminating resistor Z
0
= 120
)

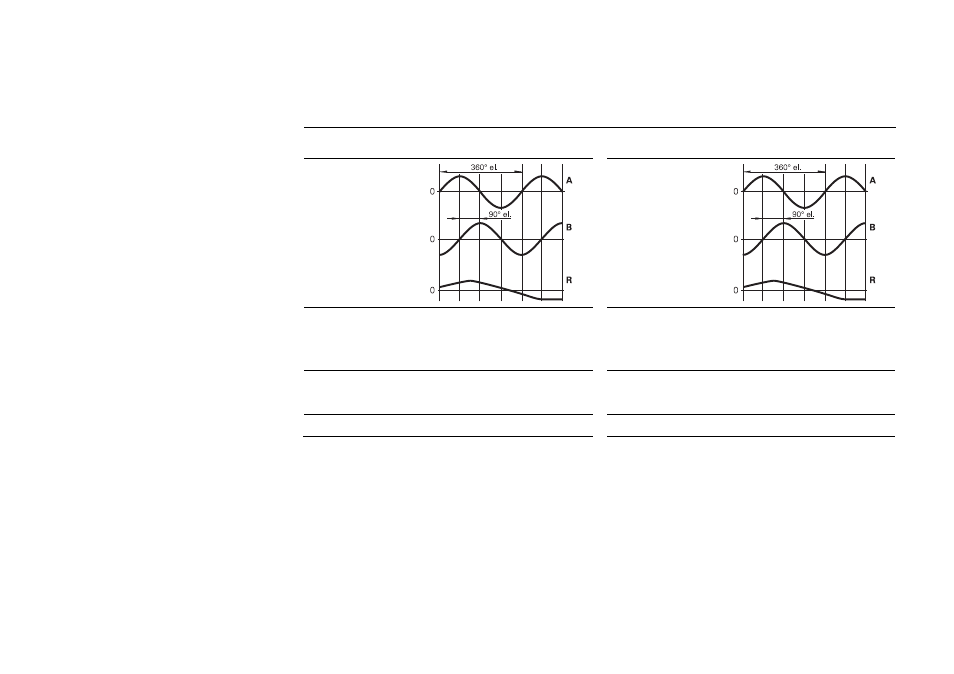

Ausgangssignale
Output signals
Inkrementalsignale
2 annähernd sinusförmige Signale A
und B
Incremental signals
2 sinusoidal signals A and B
Signalgröße
A ca. 1 V
SS
mit Abschlusswiderstand
Z
0
= 120
B ca. 1 V
SS
mit Abschlusswiderstand
Z
0
= 120
Signal amplitude
A approx. 1 V
PP
with terminating resistor
Z
0
= 120
B approx. 1 V
PP
with terminating resistor
Z
0
= 120
Referenzmarkensignal
Eine (LB 382) oder mehrere (LB 382 C)
Signalspitzen R
Reference mark signal
One (LB 302) or several (LB 302 C)
signal peaks R
Signalgröße
R ca. 0,4 V (Nutzanteil) mit Abschluss-
widerstand Z
0
= 120
Signal amplitude
R approx. 0.4 V (usable component) with
terminating resistor Z
0
= 120
Kabellänge zur Folge-
Elektronik
Max. 150 m
Cable length to subsequent
electronics
Max. 150 m
Elektrische Kennwerte
LB 382/LB 382 C
Electrical Data
LB 382/LB 382 C
