Multi-Contact MA082 Benutzerhandbuch
Seite 4
Advanced Contact Technology
4 / 16
www.multi-contact.com
2
3
5
4
6
A
B
C

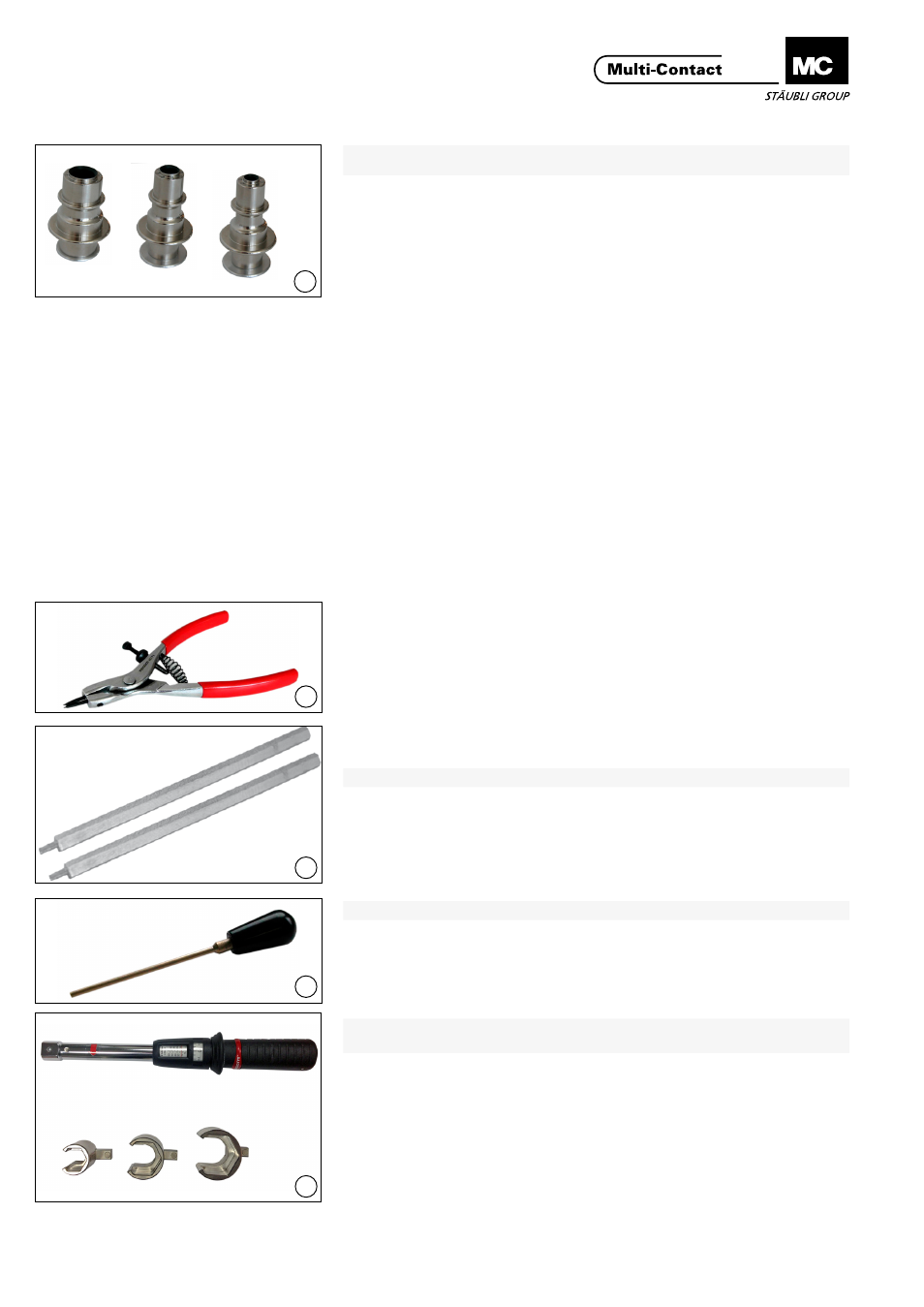

2. Montage der Haltering
2. for retaining rings mounting
(ill. 2)
Für Stecker von 19.2202 bis
19.2207
+ Haltering 19.2620
Haltering Montagewerkzeug für Kon-
takte Ø 8 mm MPC-S-XAC
Typ: MPC-TO/S-XAC/CT-S8
Bestell-Nr� 19�2911
(ill. 2)
for male contacts 19.2202 up to
19.2207
+ retaining ring 19.2620
Mounting tool for retaining ring for
male contact Ø 8 mm MPC-S-XAC
Type: MPC-TO/S-XAC/CT-S8
Order No� 19�2911
Für Stecker von 19.2212 bis
19.2225
+ Haltering 19.2621
Haltering Montagewerkzeug für Kon-
takte Ø 14 mm MPC-S-XAC
Typ: MPC-TO/S-XAC/CT-S14
Bestell-Nr� 19�2912
for male contacts 19.2212 up to
19.2225
+ retaining ring 19.2621
Mounting tool for retaining ring for
male contact Ø 14 mm MPC-S-XAC
Type: MPC-TO/S-XAC/CT-S14
Order No� 19�2912
Für Stecker von 19.2230 bis
19.2234
+ Haltering 19.2623
Haltering Montagewerkzeug für Kon-
takte Ø 20 mm MPC-S-XAC
Typ: MPC-TO/S-XAC/CT-S20
Bestell-Nr� 19�2913
for male contacts 19.2230 up to
19.2234
+ retaining ring 19.2623
Mounting tool for retaining ring for
male contact Ø 20 mm MPC-S-XAC
Type: MPC-TO/S-XAC/CT-S20
Order No� 19�2913
(ill. 3)
Für Buchsen von 19.2302 bis
19.2334 + Haltering 19.2620,
19.2622, 19.2624
Öffnungszange
für Haltering
(z�B�: FACOM ref 467)
Typ: MPC-TO/PL-OP - 19�2933
(ill. 3)
for female contacts 19.2302 up to
19.2334 + retaining ring 19.2620,
19.2622, 19.2624
Opening pliers for retaining rings
(example: FACOM ref 467)
Type: MPC-TO/PL-OP - 19�2933
Ausbauwerkzeuge
Dismounting tools
3. Haltering Ausbau
3. for retaining rings dismounting
(ill. 4)
Für Stecker von 19.2205 bis
19.2234
Lange, gerade Verlängerung für Halte-
ringzange
Typ: MPC-TO/PL-OP
(ill. 4)
for male contacts19.2205 up to
19.2234
Long straight extension for retaining
ring pliers
Type: MPC-TO/PL-OP
4. Stiften Ausbau
4. for coding pin dismounting
(ill. 5)
Ausbau Werkzeug für Kodierstift,
Kennzeichnungsstift und Blockierstif
Typ: MPC-TO/LP-CP-MP
Bestell-Nr� 19�2930
(ill. 5)
Dismounting tool for coding pin,
marking pin and locking pin
Type: MPC-TO/LP-CP-MP
No� de Cde� 19�2930
5. zum Anziehen der Kabelver-
schraubung
5. for tightening the cable glands
(ill. 6)
Drehmomentschlüssel (nicht durch
MC geliefert) und Einsätze:
A - MPC-TO/CGM-A/2, 19�2926 (M20)
B - MPC-TO/CGM-B/2, 19�2927 (M32)
C - MPC-TO/CGM-C/2, 19�2928 (M40)
(ill. 6)
Torque wrench (not provided by MC)
and inserts:
A - MPC-TO/CGM-A/2, 19�2926 (M20)
B - MPC-TO/CGM-B/2, 19�2927 (M32)
C - MPC-TO/CGM-C/2, 19�2928 (M40)
