The »UserCenter CAT8« expansion
2 · G&D UserCenter CAT8
The »UserCenter CAT8« expansion
The number of consoles that can be connected to the G&D matrix switches is lim-
ited due to the available console ports:
By applying the UserCenter CAT8 expansion, four target modules can be connected
to eight different G&D matrix switches.
This enables you to access the target modules from all consoles of the eight matrix
switches.
Scope of delivery
1 × UserCenter CAT8
1 × power cable (PowerCable-2 Standard)
1 × installation guide
1 × 19“ RM-Set-435
Matrix switch
Number of consoles
CATCenter NEO16
16
CATCenter X8
8
CATCenter X4
4
CATCenter X2
2
Table 1: Number of the console ports of some G&D matrix switches
EXAMPLE: You want to access four different target modules from 64 consoles.
For this, connect the four target modules to the UserCenter CAT8 expansion.
Now, connect the expansion to eight different CATCenter X8 matrix switches.
Through this connection type, the four target modules are available at all 64 con-
soles (eight per CATCenter X8).

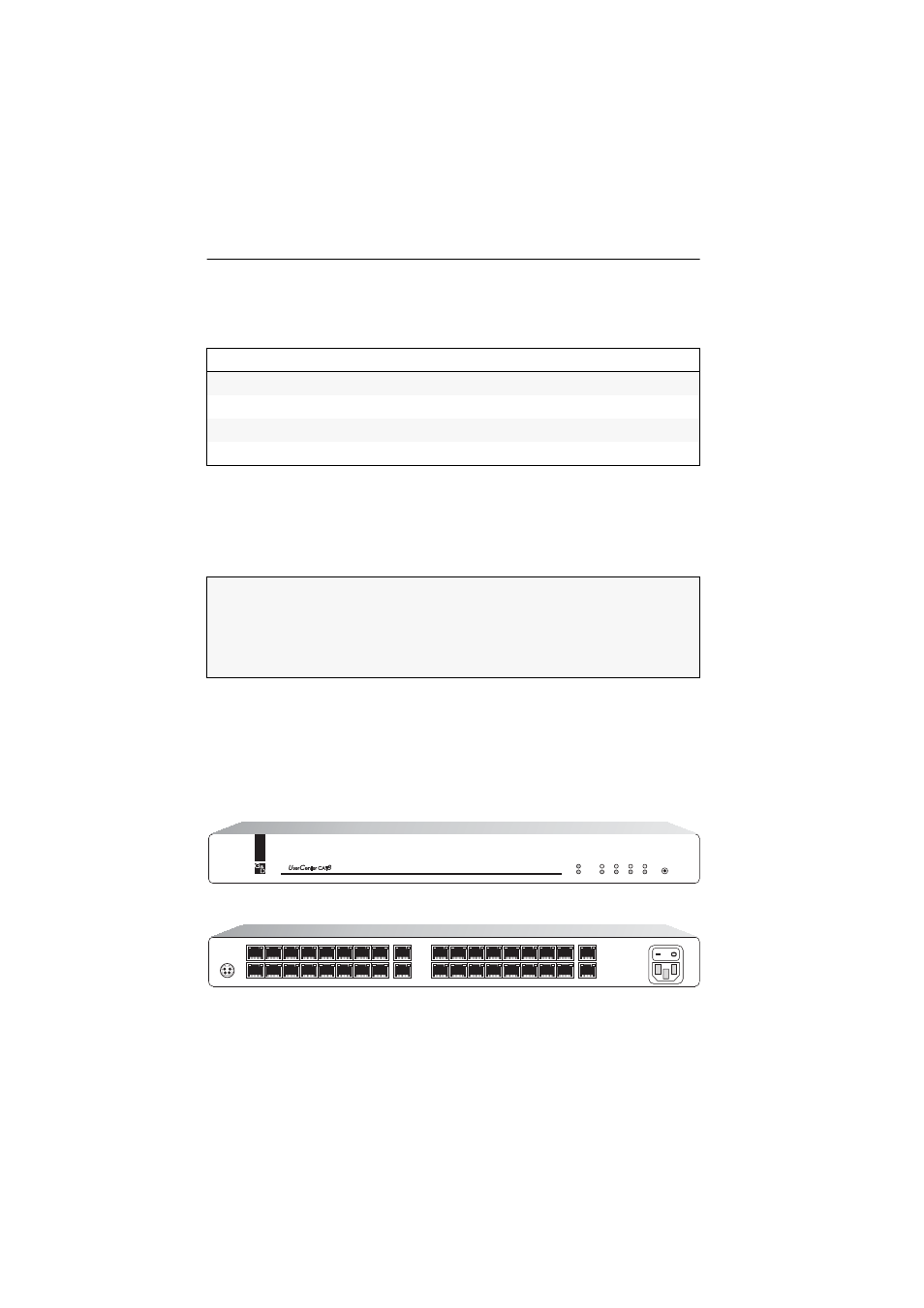

Figure 1: Front view of the
UserCenter CAT8 expansion
Figure 2: Back view of the
UserCenter CAT8 expansion
Red.
Main
Active
Status
Power
1
2
3
4
Service
3.1
3.2
3.3
3.4
3.5
3.6
3.7
3.8
CPU 3
Cluster
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
CPU 1
Cluster
4.1
4.2
4.3
4.4
4.5
4.6
4.7
4.8
CPU 4
Cluster
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
CPU 2
Cluster
Red. Power
Main Power
