5. Installation

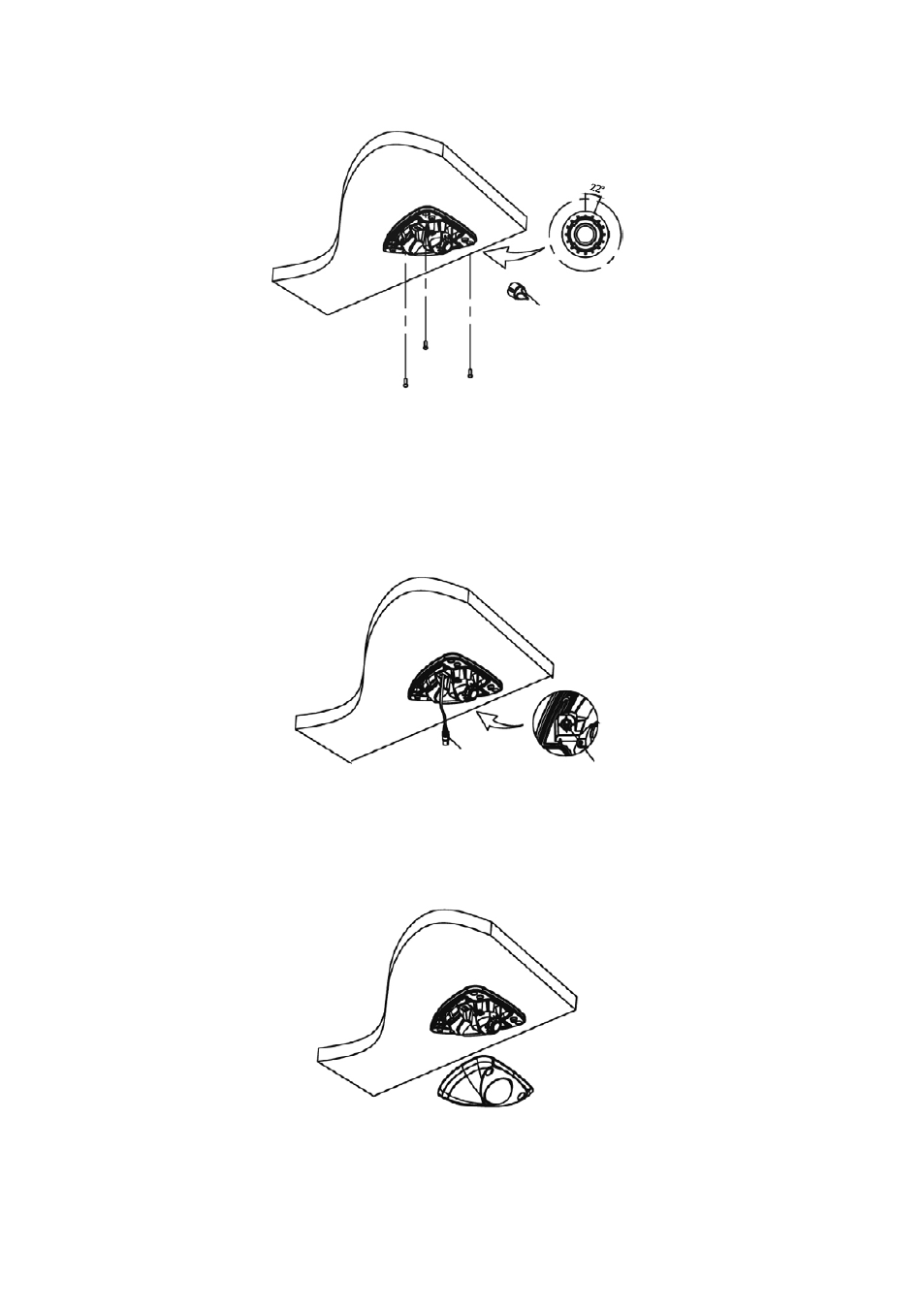

. Attach the FLAT DOME on the ceiling, using the screws provided, after giving due consideration to the camera
angle required for the surveillance function.
. After attaching use the LENS ANGLE TOOL to direct the lens to the desired location.
3. The LENS adjustable viewing angle should be .5 degrees (see the picture above).
4. Connect the VIDEO OUT CABLE and check the video image.
Change the SETTINGS accordingly using the OSD menu or a keyboard controller.
5. After the LENS SETTING is completed, install the TOP COVER.
Lens angle tool
Controller
Video out cable
