9

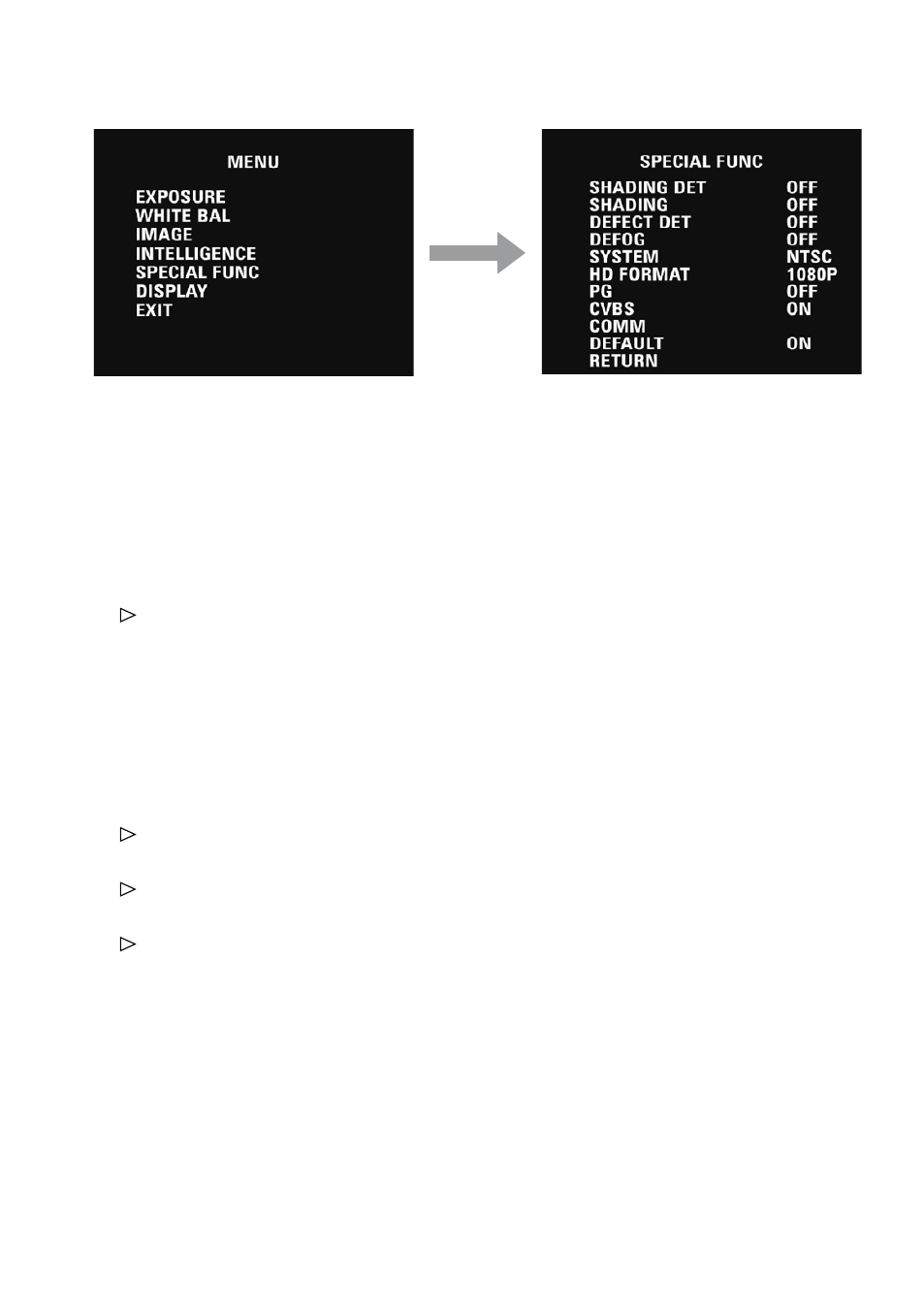

7.6 Special Function
• SHADING DET: Sets the shading calibration that the Lens will perform.
Only occurs if the entire screen is viewed in white light (OFF / ON).
• SHADING: Select Lens shading compensation (OFF / ON)
• DEFECT DET: Compensates for bad pixels that may appear. Occurs when the whole screen is fully black, or
if there is bad pixelation, and it changes the THRS values until the screen is fixed (OFF / ON).
• DEFOG: Carry out defog function
OFF / ON
LEVEL: Adjust amount of fog viewed on the display screen
0 ~ 0
NOTE: When DEFOG is ON, ACE and WDR/BLC functions do not turn on.
• SYSTEM: Select NTSC or PAL (NTSC / PAL)
• HD FORMAT: Select Digital Output 080P or 70P (080P / 70P)
• PG: Select Colour pattern generator (OFF / ON).
• CVBS: Select Composite signal (OFF / ON)
• COMM: Set up the camera ID, baud rate, protocol
ID: Select the Camera ID
 ~ 55
BAUD RATE: Select serial communication speed
400 / 4800 / 9600 / 900 / 38400 / 57600 / 500bps
PROTOCOL: Select operating protocol
PELCO-D / PELCO-P / UPDATE
• DEFAULT: All the settings will be restored to their factory defaults.
