3

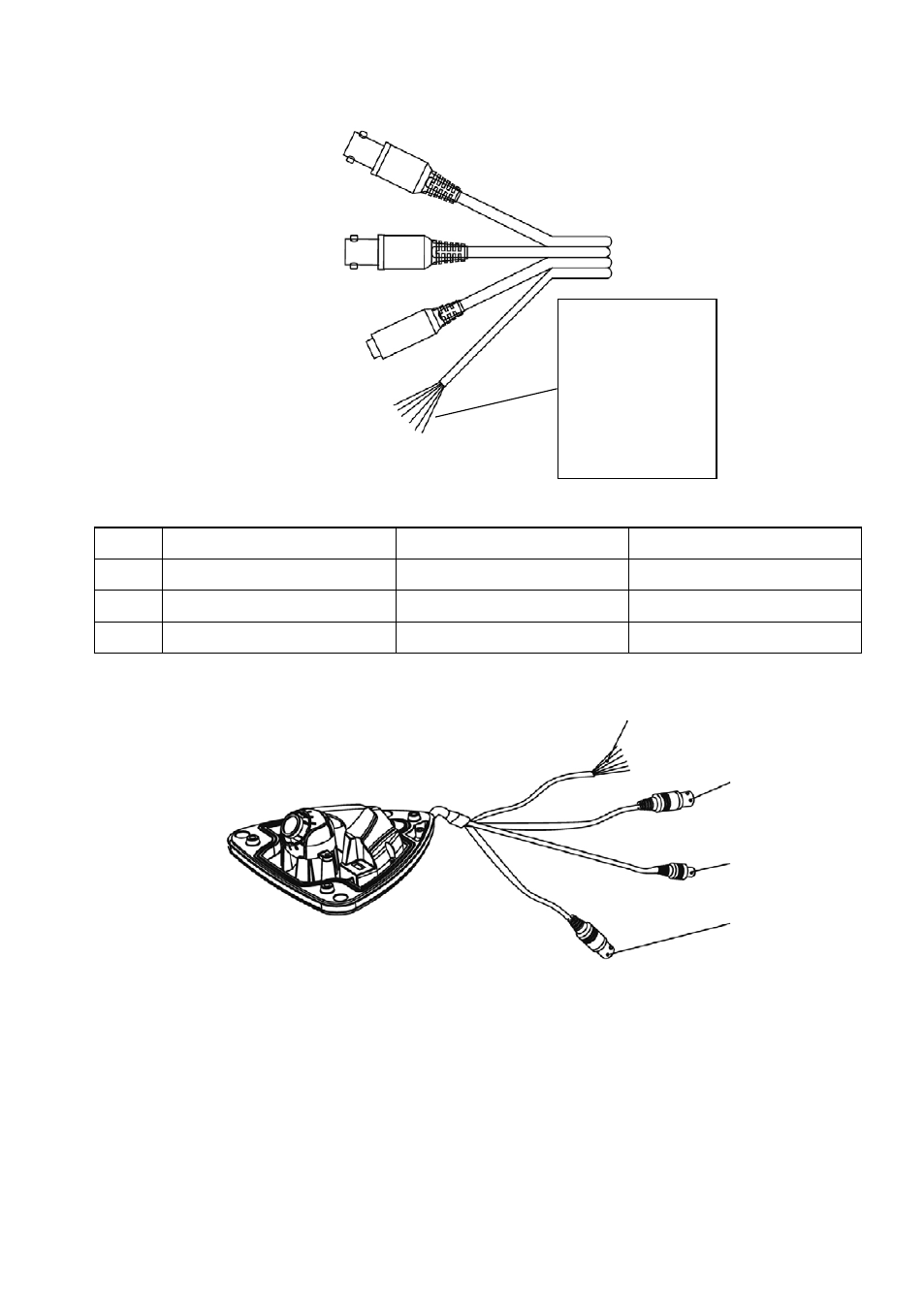

6. Connection
#1 HD-SDI (blue)
#2 CVBS (yellow)
#3 Power (red)
485(+) gray
485(–) white
D/N IN blue
MD OUT yellow
TRIGGER purple
GND green
No. Function Colour Specification
1 HD SDI cable blue HD SDI
2 Analog video cable yellow CVBS
3 Power red VDC
RS-485
HD video cable
Video cable
Power
