5
Assembly
FGW 84 A1
GB
IE
Required assembly material
Hammer
Philips-type screwdriver
Open-ended spanners SW 8 mm, SW 13 mm
IMPORTANT
To avoid possible injury, the screw heads should always face outwards. ►
First tighten all screw connections down when the assembly is complete,
this will help avoid undesirable material tensions.

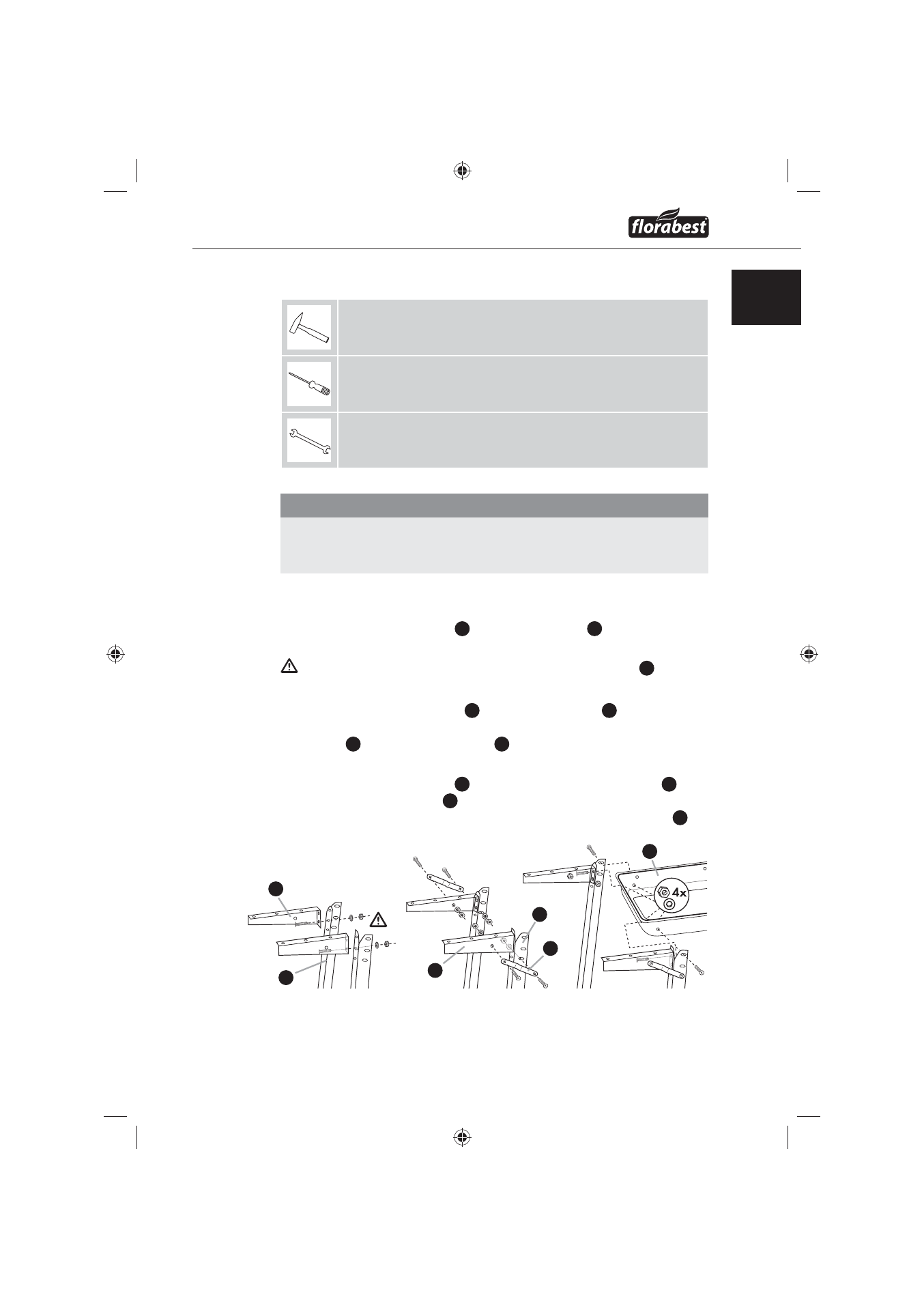

Step 1
Connect the storage holder ♦ 15 with the wheel brace 14 by means of the
washers Ø 5.4, M5 x 10 screws and nuts M5.
Please take note that only the lower hole of the storage holder 15 is to be
used for the screws.
Secure the reinforcing braces ♦ 16 with the wheel braces 14 by means of
the washers Ø 5.4, M5 x 10 screws and nuts M5. Secure the reinforcing
braces
16 with the storage holders 15 by means of the washers Ø 5.4,
M5 x 10 screws and nuts M5.
Assemble the wheel braces ♦ 14 , with the assembled storage holder 15 ,
to the left of the fi re bowl 6 by means of the washers Ø 5.4, 2 M5x12
screws and nuts M5. For this, use the upper hole in the wheel braces 14 .
15
15
14
14
16
6
