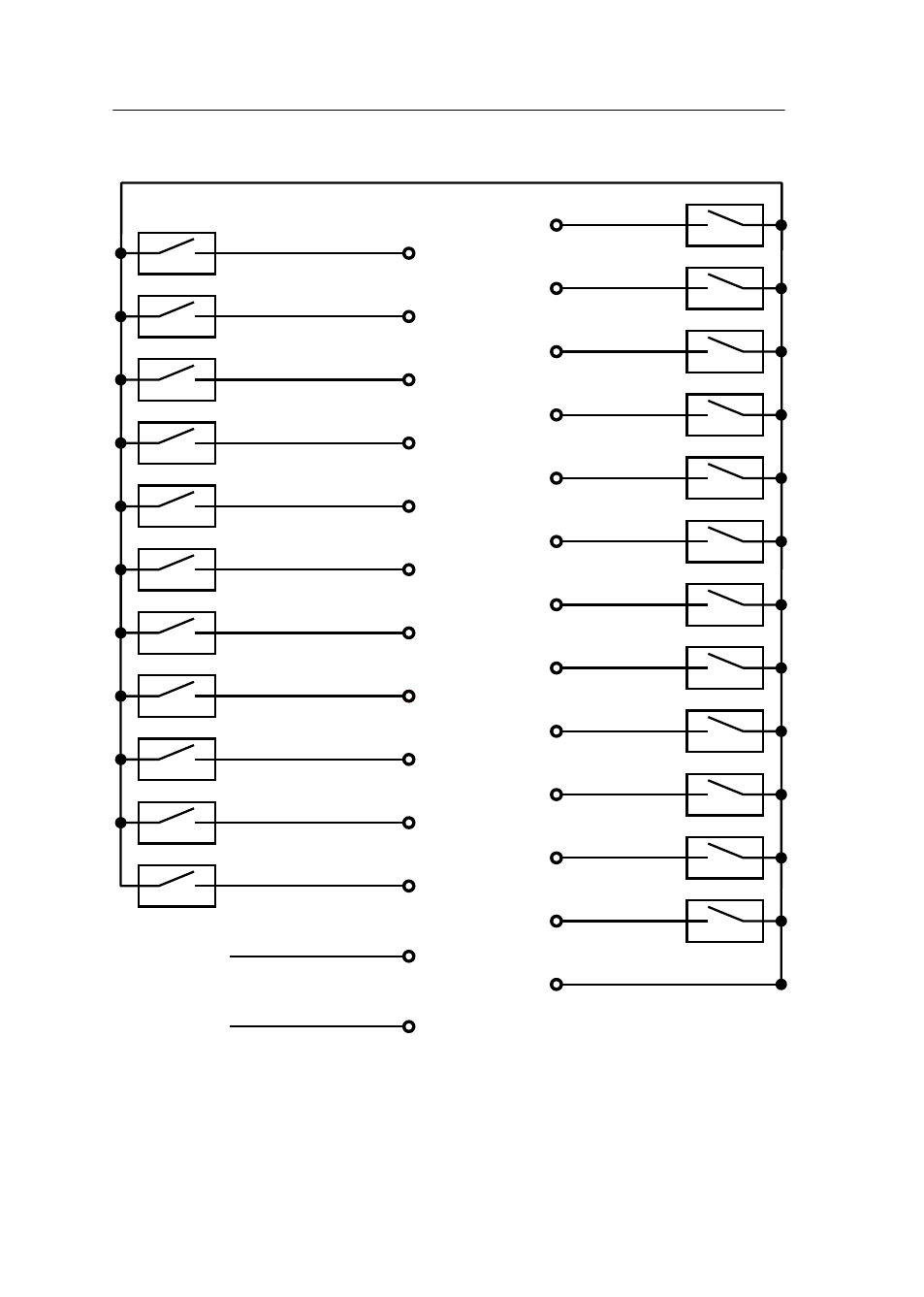

Pin-Belegung der D-Sub25-Buchse
13 · G&D HK-Controller 20
Pin-Belegung der D-Sub25-Buchse
Button 1
black
Pin 1
brown
Pin 2
Button 2
red
Pin 3
Button 3
orange
Pin 4
Button 4
yellow
Pin 5
Button 5
green
Pin 6
Button 6
blue
Pin 7
Button 7
purple
Pin 8
Button 8
grey
Pin 9
Button 9
white
Pin 10
Button 10
pink
Pin 11
Button 11
dark green
Pin 12
Button 12
red/white
Pin 13
+5V/200mA
shield
Connector shell
Button 13
orange/white
Pin 14
Button 14
dark green/white
Pin 15
Button 15
blue/white
Pin 16
Button 16
purple/white
Pin 17
Button 17
brown/white
Pin 18
Button 18
white/black
Pin 19
Button 21
yellow/black
Pin 22
Button 19
red/black
Pin 20
Button 22
green/black
Pin 23
Button 23
grey/black
Pin 24
pink/black
Pin 25
GND
orange/black
Pin 21
Button 20
