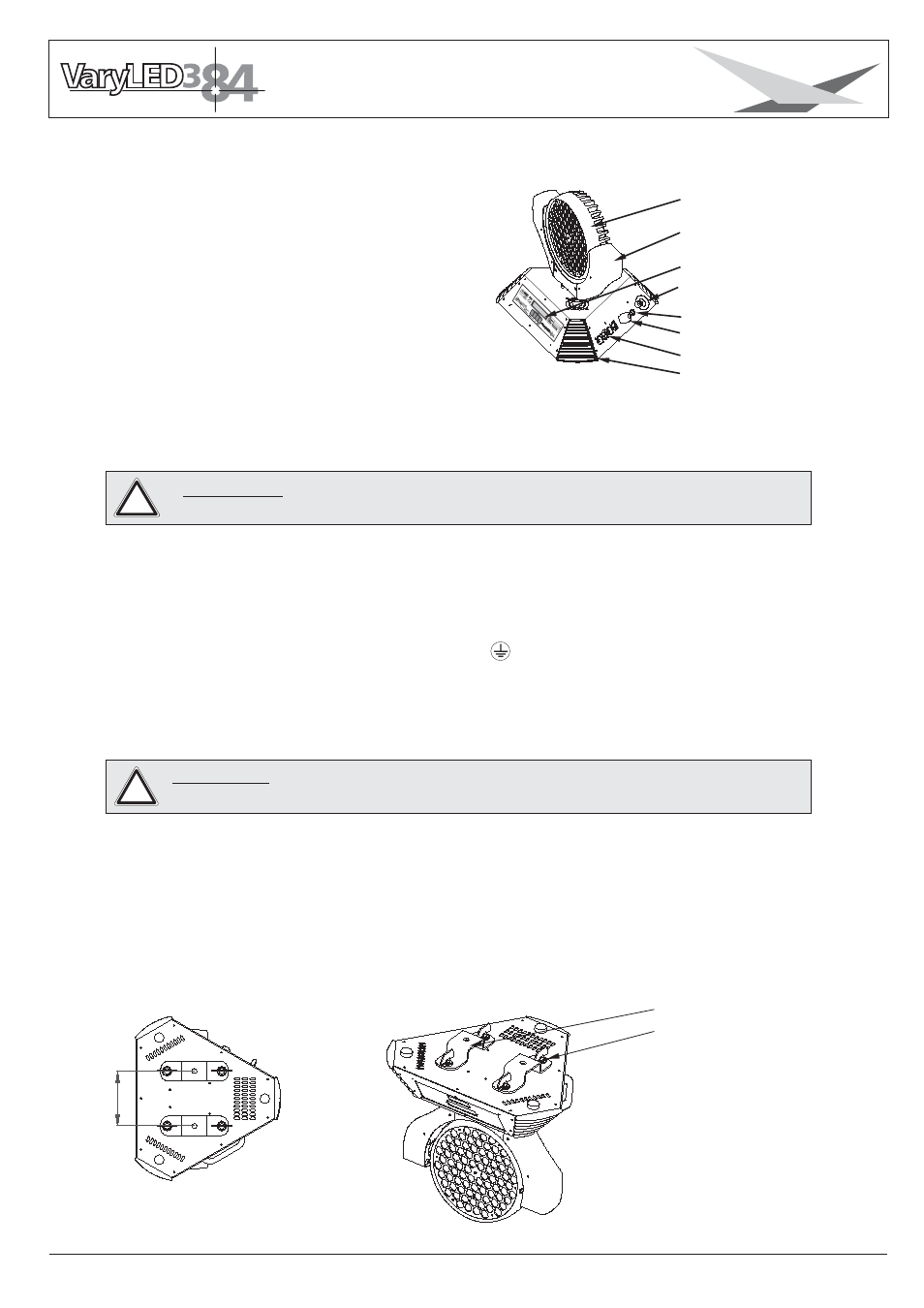

2.1 Powering the fixture
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon +49 (0)7304-9617-0
2.2 Rigging the fixture
The VaryLED 3*84 can either be placed on the floor or hung on a trussing system
in a vertical or horizontal way. When placing the unit on the floor make sure that it
stands on rigid ground, because the air inlets in the base must not be covered with
anything!
To mount the unit on a trussing system use the original JB-lighting omega brackets
with Camloc-connectors. The Camlocs must snap in to be locked propperly.
Always attach a safety cable to secure the unit.
WARNING: Keep fixtures at least 0,5 m away from inflamable articles!
Always use a safety cable attached to the base!
!
Install a 3-prong grounding type plug that fits your supply.
Connected load: voltage 230 V, frequency 50 Hz
brown live “L”
blue neutral “N”
yellow/green ground
WARNING: To ensure propper installation of the plug consult
a qualified technician!
!
weight: 12 kg
Power connection: 230 V, 50-60 Hz
Power consumtion: 330VA
max. amb. temp.: 40°C
2. Installation
XLR-connector
base
Yoke
head
control panel
power supply
ring eye for safety cable
attachement
Va ry LE D 3* 84 24 0 VA 23 0V 50 H z
CA UTI ON! Dis co nn ec t m ain s bef ore op en in g
fuse
omega bracket
camloc connector
