23

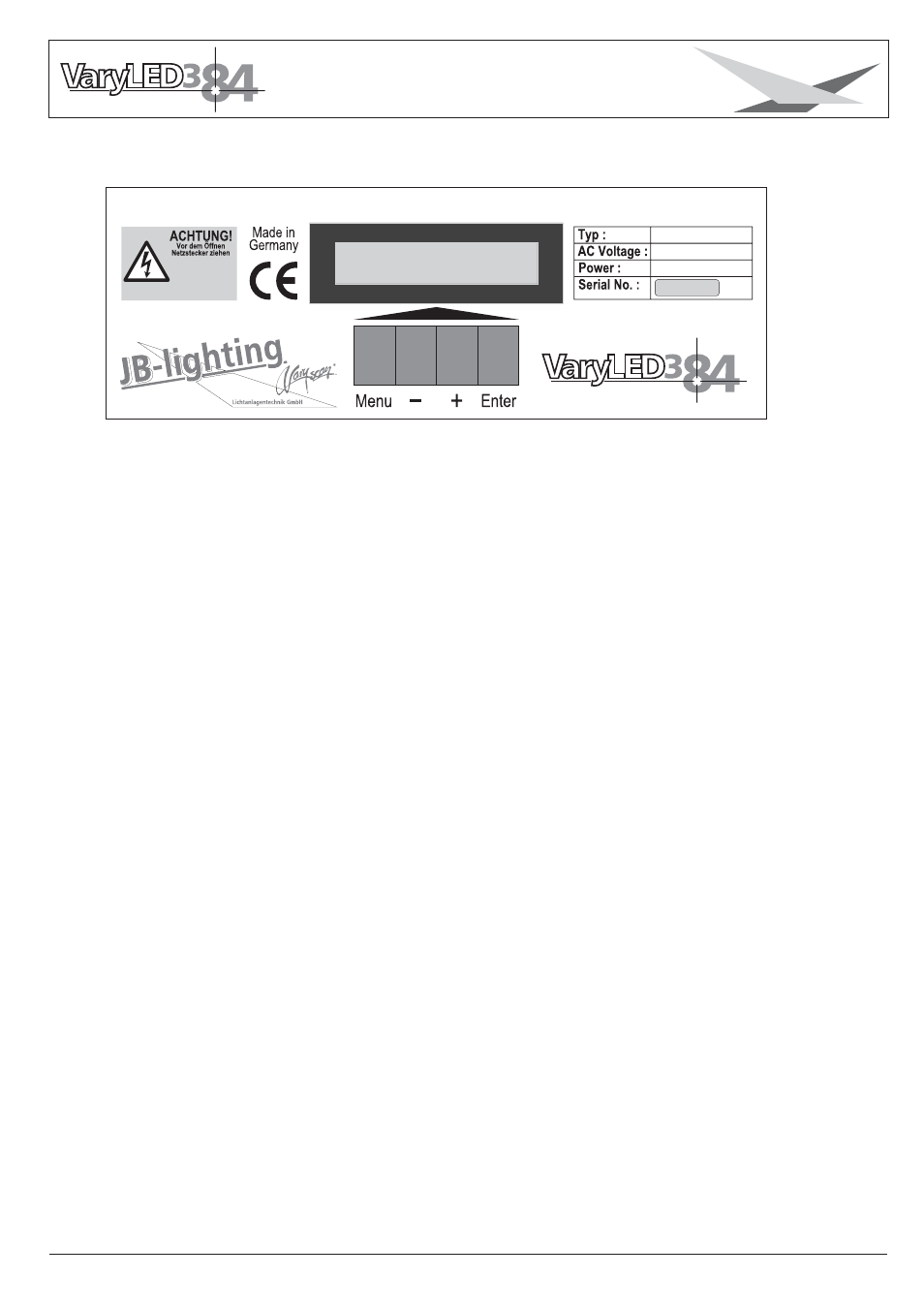

3. Control panel
JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein Telefon +49 (0)7304-9617-0
To adjust the personal setting of the VaryLED 3*84 use keys located on the
control panel. Functions see menu on the following page.
To enter the menu press "Menu" key one time. Use keys "-" and "+" to move
within the menu. Use key "Enter" to select the function and to recall the next
menu section. To escape press key "Menu".
During reset the display is not illuminated.
Slow flashing of the display illumination means no DMX signal is connected.
Fast flashing of the display illumination showing
means a failure
was reported and stored in the ERROR LIST (To clear - see menu navigation on
page 8).
Fast flashing of the display illumination showing an error message means an
current failure is reported, e. g.
- please contact your dealer or
our service department.
If the VaryLED receives a DMX-signal the display illumination dims down after 30
seconds in order not to irritated during standard opperation.
Special functions are assigned to the display lighting:
VaryLED 3/84
*PAN TIMEOUT
VaryLED 3*84
330 VA
230V 50-60Hz
CAUTION!
Disconnect mains
before opening
