Seite 23
3 Sensor des Inline-Refraktometers
19
© Copyright K-Patents 2014. All rights reserved.
3.1.4 Ummantelung des PR-33-S-Sensors, um den Sensor vor Fremdlicht zu schützen
Die Ummantelung schützt den Sensor vor Fremdlicht. Das Material aus Teflongewebe
ist haltbar und widersteht den meisten chemischen Substanzen und Dämpfen. Die
Ummantelung wird montiert, indem sie um den Sensor gewickelt und durch Klettband

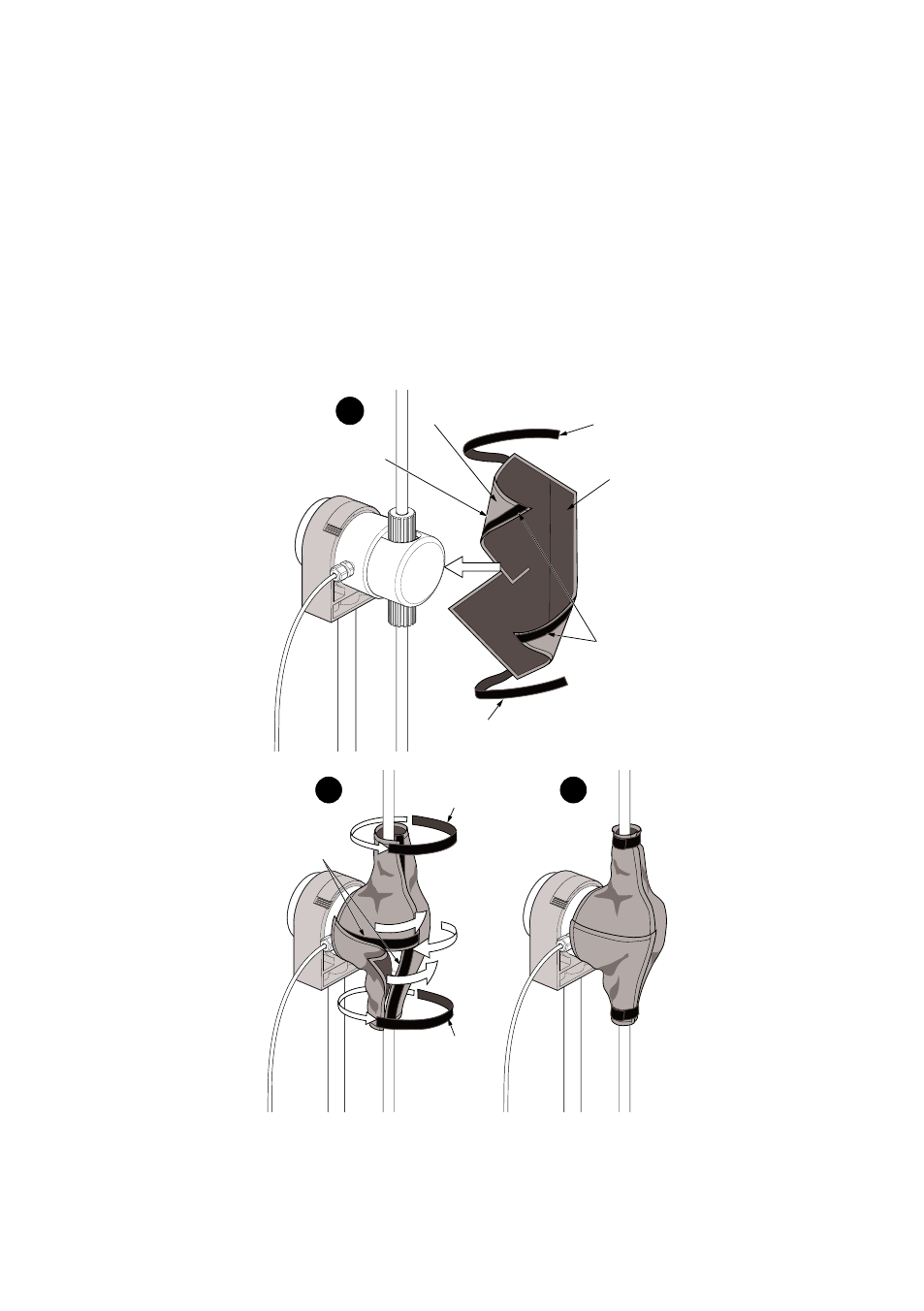

befestigt wird. Abbildung 3.1 zeigt wie, die Ummantelung auf dem Sensor zu montieren
ist.
1
2
3
4
4
Velcro tape
Inner lining
(black side)
Exterior
(water resistent teflon)
Velcro strips
Velcro strips
Velcro tape
Velcro tape
Sensor jacket
Velcro tape
1
2
3
1
2
3
4
4
Velcro tape
Inner lining
(black side)
Exterior
(water resistent teflon)
Velcro strips
Velcro strips
Velcro tape
Velcro tape
Sensor jacket
Velcro tape
1
2
3
Abbildung 3.1
PR-33-S Installation Ummantelung
