Selecting DDC information
G&D DVISplitter2-DL · 6
Reading out a monitor’s DDC information
In addition to selecting preset DDC information, you can also read out the DDC
information of a monitor to provide it to the computer.
If the monitor’s DDC information cannot be transmitted over a long distance due to
a weak signal, the video source can access the DDC information stored in the
DVISplitter2-DL.
How to read out DDC information:
Switch position DDC profile/function
Def. Transparent transmission of DDC information (standard)
1 2560 × 1600 pixels, 60 Hz (CVT-R)
2 2560 × 1440 pixels, 60 Hz (CVT-R)
3 2048 × 2048 pixels, 60 Hz (CVT-R)
4 1920 × 1200 pixels, 60 Hz (CVT-R)
5 1920 × 1080 pixels, 60 Hz (CEA/DMT)
6 1680 × 1050 pixels, 60 Hz (CVT)
7 1280 × 1024 pixels, 60 Hz (DMT)
User Use the monitor’s read-out DDC information
Learn Read out monitr’s DDC information
1. Unplug the DVI-D video cable from the DVI-D DL Out 1 interface.

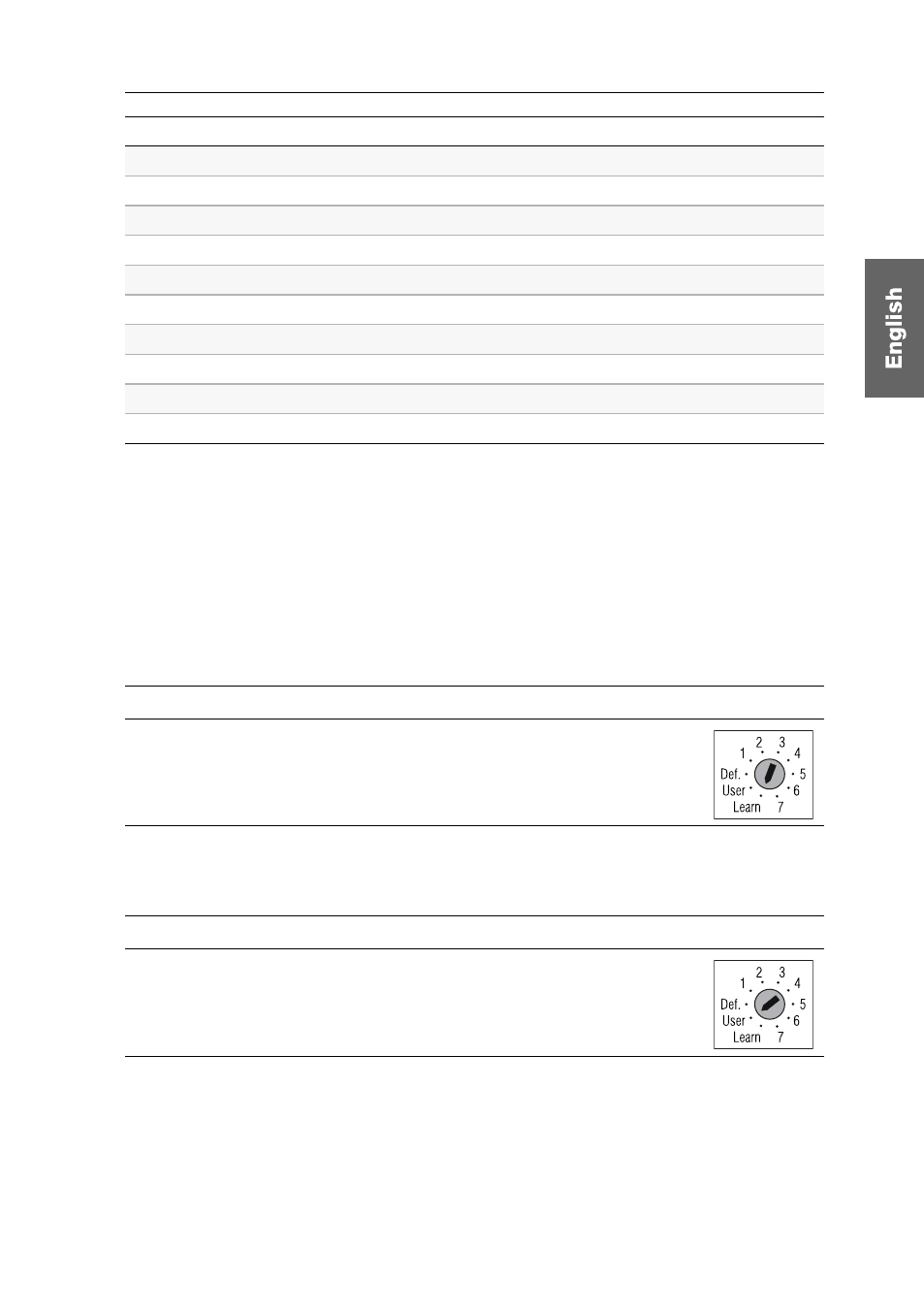

2. Move the DDC switch to the Learn position.
The status LED shows indicate that the Learn mode is now active
(see Status displays on page 4).
3. Connect the monitor to the DVI-D DL Out 1 interface to store its DDC information.
The LEDs show that the DDC information is read in successfully (see Status
displays on page 4).
4. Remove the monitor cable from the DVI-D DL Out 1 interface.
5. Move the DDC switch to the User position.
The DVI-D DL CPU interface transmits the read-in DDC informa-
tion to the video source.
