26
Assembly
CAUTION!
For your safety the heads of the screws should
always point outward, otherwise injuries can
occur.
Only firmly tighten all screw connections after
assembly is concluded, otherwise undesired
material tension can occur.
1. Insert an ash collecting sheet holder (J) and a
stand reinforcement (H) above each upper end
of a stand element (I + O). Mount the stand
elements (I + O) on the fire bowl (G) in the
arrangement shown. Use the M6x30 screws
and Ø6.4xØ18 diameter washers.
2. Hook the front tab of the wire holder (L) into
the lower bore of the stand element (O).
Guide the ends of the wire holder (L) through
the lower bores in the stand elements (I).
Mount the wheels (K) to the ends of the wire
shelf (L) using the Ø8xØ18 washers and M8 lock
nuts.
3. Screw two of the handles (A) onto the fire bowl
(G) via the M6x10 screws, Ø6.4xØ12 washers,
and M6 nuts. Fasten the hood holder (D) to
the handle (A) on the inside of the hood (C) via
M6x10 screws, Ø6.4xØ12 washers, and M6 nuts.
4. Fasten the vent plates (B) on the fire bowl (G)
and on the hood (C) from the outside with
M4x10 screws, Ø4.2 washers, and M4 nuts.
5. Clamp the ash collection sheet (N) into the ash
collection sheet holder (J) between the stand
elements (I + O).
6. Insert the charcoal grate (F) and the grill
element (E) in the fire bowl (G). If needed place
the charcoal divider (P) on the charcoal grate (F).
Note the comments on the following pages.
WARNING!
The grill must be placed on a stable and firm
substrate during operation, otherwise it can
tip over.

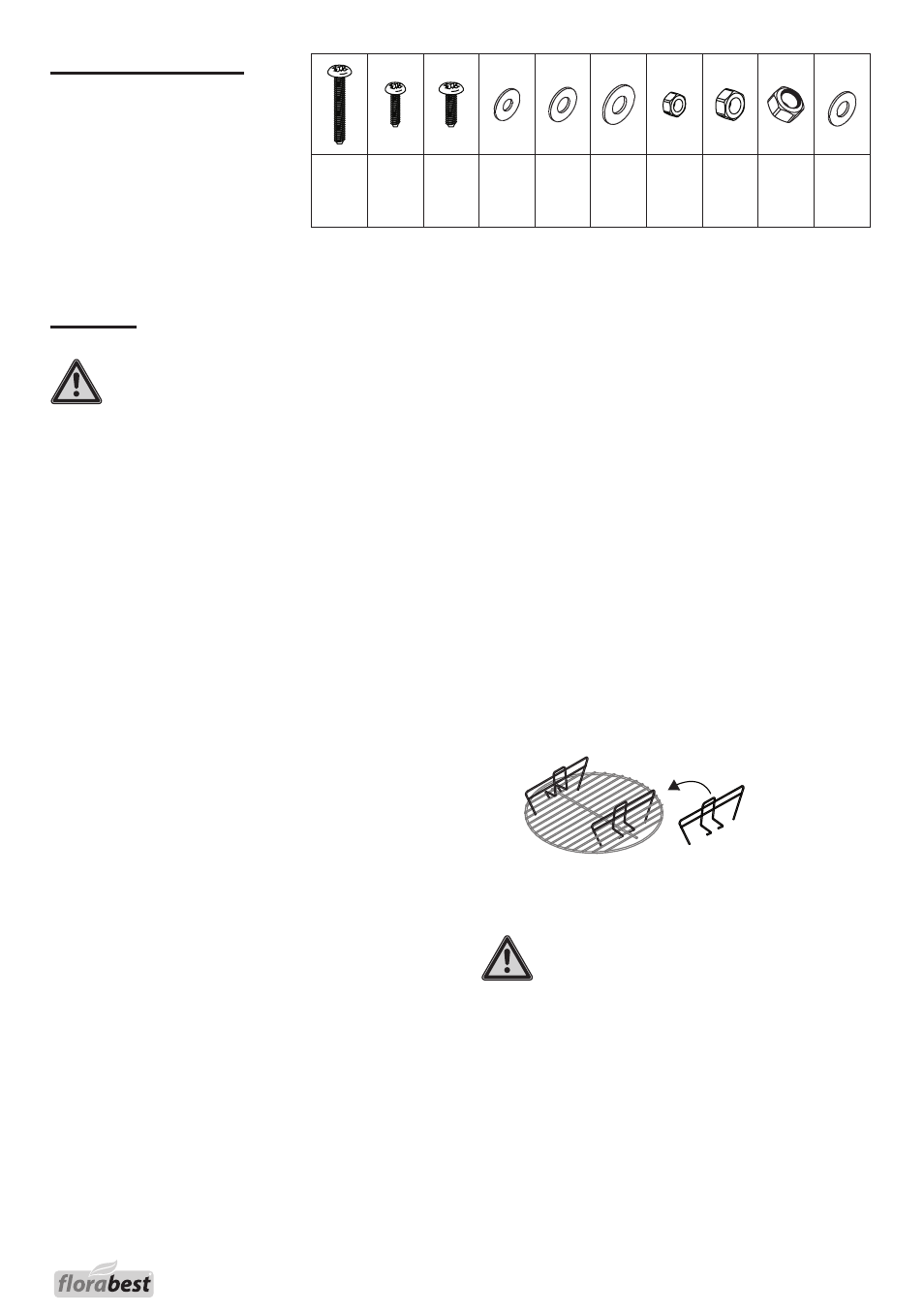

Connecting elements
M4x10
2x
M6x10
6x
Ø4,2
2x
Ø6,4xØ12
6x
Ø6,4xØ18
3x
M4
2x
M6
6x
M6x30
3x
M8
2x
Ø8xØ18
2x
