1. Installation RO
i
880 A/C/K/R - RO
i
889 B/C/K

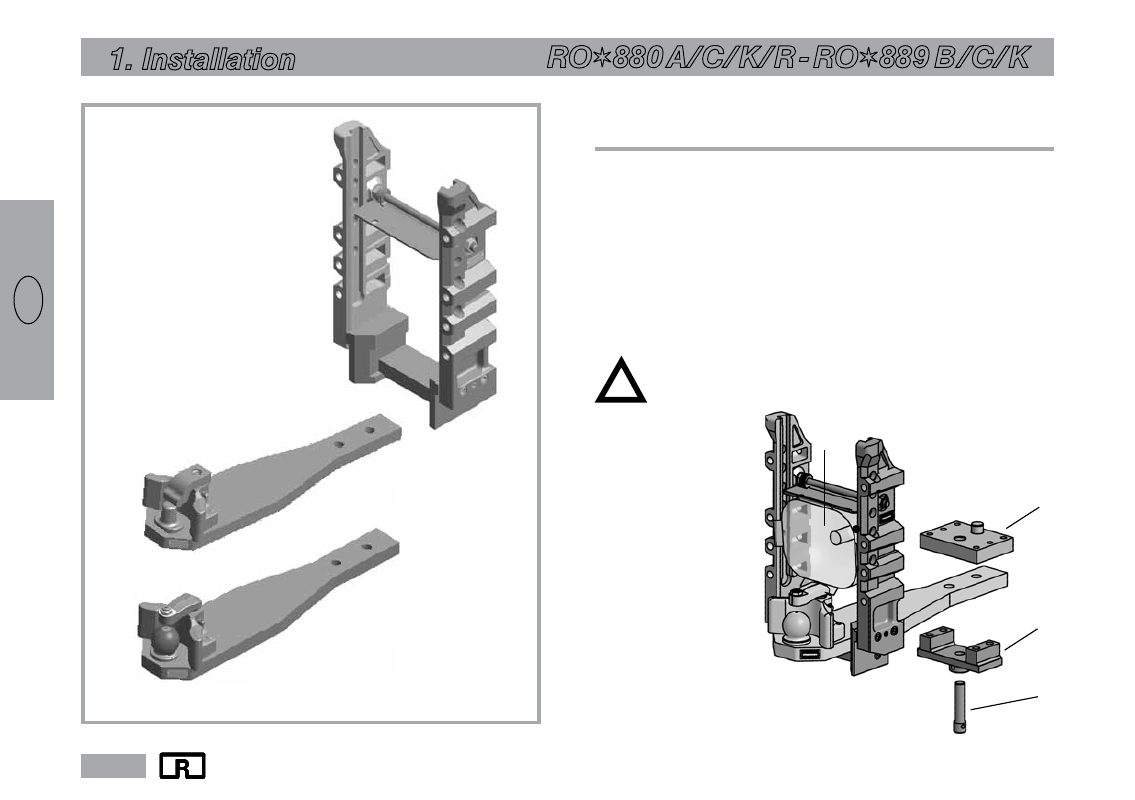

1. Installation of drawbar with ball/piton in the
ladder 880 R
x Select the matching adapter (C) and drawbar bearing (B) in accor-
dance with the list on page 12.
x Screw the adapter (C) and drawbar bearing (B) at the appropriate
point under the transmission and tighten with the specified
tightening torque.
x Slide the drawbar with ball/piton through the frame into the drawbar
holder.
x Insert the pin (A) through the borings of the drawbar holder (B),
drawbar and adapter (C) and secure them with the linchpin.
x Attention! Observe vertical load and D-value of the
drawbar. The PTO shaft space † sollte must remain free.
†
C
B
A
!
Fig. 2
