24
VARYSCAN 4 COMPACT PLUS 575 HMI

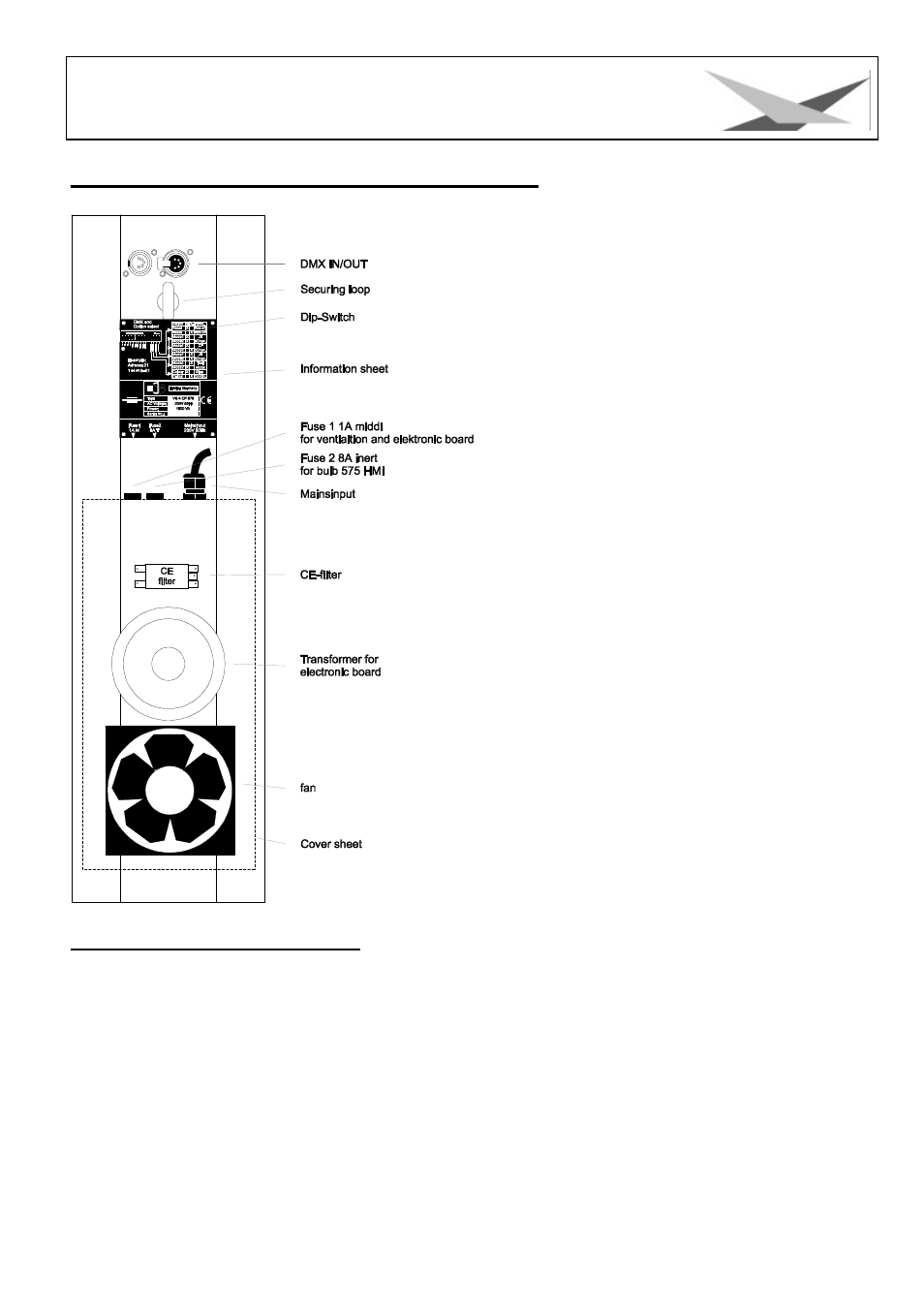

Back view and position of operating sections
Occupation of DMX-sockets
DMX-in
DMX-out
Pin No. signal
Colour of wire Pin No. Signal Colour of wire
1
Ground black
1
Ground black
2
DMX -
white
2
DMX -
white
3
DMX + red
3
DMX + red
4
free
4
not connected
5
free
green/black
5
not connected
