37
VARYSCAN 4 COMPACT PLUS 575 HMI

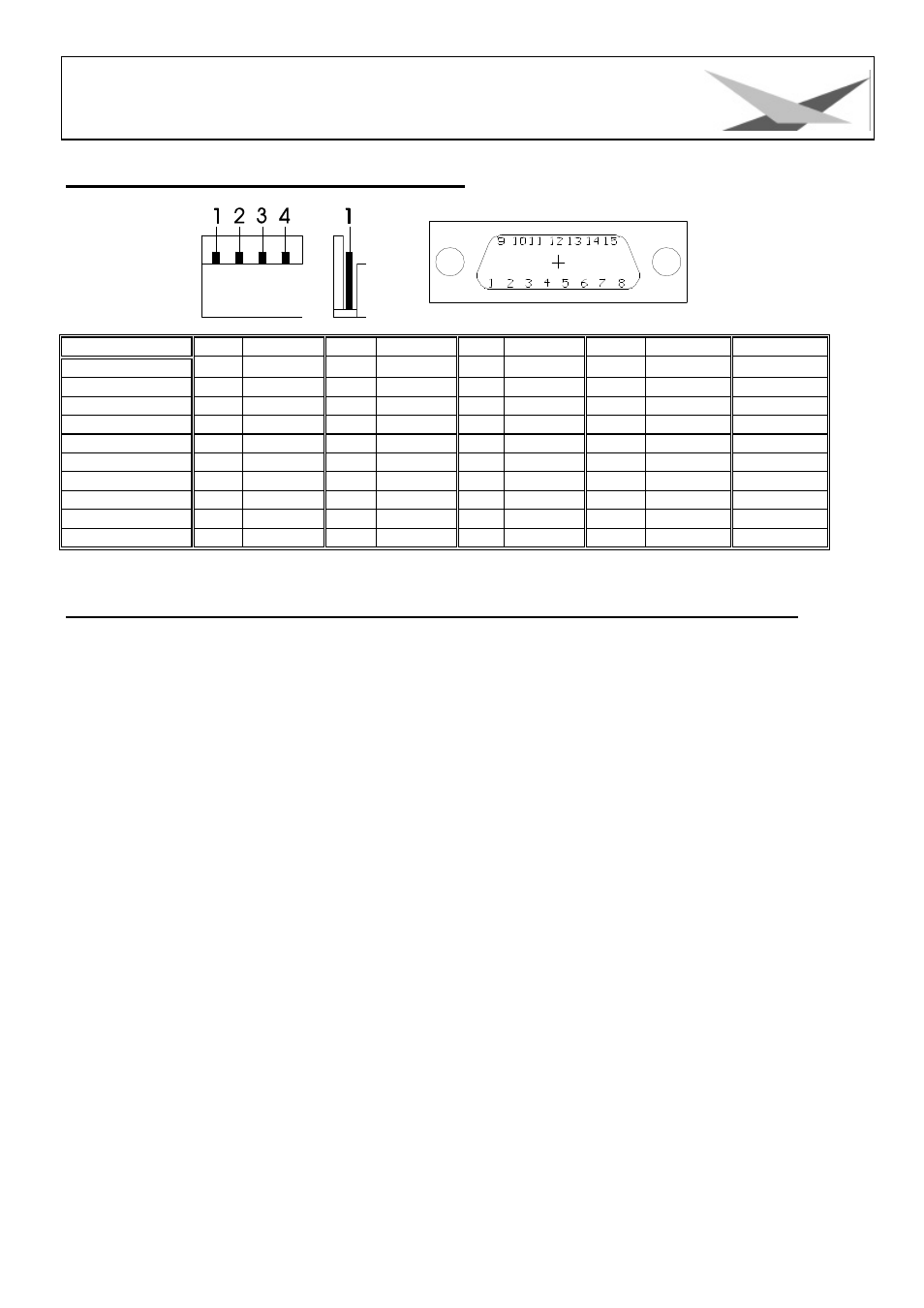

Occupation of connectors and Jumper
Pin colour Pin colour Pin colour Pin colour connector
x-motor 1 orange 2 blue 3 red 4 yellow JP2
y-motor 1 white 2 blue 3 red 4 yellow JP3
effect wheel 1 orange 2 blue 3 yellow 4 red P2
colour wheel 5 orange 6 blue 7 yellow 8 red P2
shutter/dim.1 1 orange 2 blue 3 red 4 yellow JP4
shutter/dim.2 1 orange 2 blue 3 red 4 yellow JP5
gobo wheel 5 orange 6 blue 7 yellow 8 red P1
gobo rotation 1 orange 2 blue 3 yellow 4 red P1
Iris 13 white 14 red 15 black free free P1
DMX In/Out 1 white 2 red 3 black 4 gr/bl JP1
List of parts for electronic board of Varyscan ® 4 Compact Plus 575 HMI
R1 10M 0,6W R41 1R 1W
R2 22K 0,6W R42 36R 1W
R3 9*10K Sip 0,25W R43 36R 1W
R4 9*10K Sip 0,25W R44 1R 1W
R5 10K 0,6W R45 1R 1W
R6 10K 0,6W R46 768R 0,6W
R7 10K 0,6W R47 249R 0,6W
R8 470R 0,6W
R9 2k2 0,6W U1 M68HC11F1FN
R10 15 k 0,6W U2 EPROM27C256
R11 1k 0,6W U3 AM 26LS32
R12 1k 0,6W U4 74HC245
R13 15k 0,6W U5 74HC138
R14 1k 0,6W U6 PBL3771
R15 15k 0,6W U7 PBM3960
R16 0R68 1W U8 PBL3771
R17 0R68 1W U9 PBM3960
R18 1R 1W U10 PBL3771
R19 1R 1W U11 PBM3960
R20 1k 0,6W U12 TCA3727
R21 1R 1W U15 TCA3727
R22 1k 0,6W U18 TCA3727
R23 1R 1W U20 TCA3727
R24 1k 0,6W
R25 1R 1W S1 SW DIP-10
R26 1R 1W S2 SW DIP-4
R27 30R 1W
R28 60R 0,6W
R29 240R 0,6W
R30 120R 0,6W
R31 30R 1W
R32 60R 0,6W
R33 240R 0,6W
