33
5. Installation Instructions
• Make sure the power is removed before the installation.
• Follow the order for applying power.
First, connect the low voltage (AC4V or DCV), then plug the AC adapter to AC outlets to avoid an improper reset
from power jitter and a damage from the surge voltage when no load.
• In Manual Focus Mode, Focus and Zoom can be adjusted just operating Near/Far and Zoom In/Out with Joystick.
5.1. Mounting the Camera on Wall
5.1.1 Without using an Easy Bracket
) Drill the holes on wall or ceiling using a supplied template.
) Insert the anchors () to the drilled holes.
3) Match Foot mount Hole (4x) (e) to the drilled position.
4) Fix the bracket by using Wall fixing screws (3).
56
76
45
57

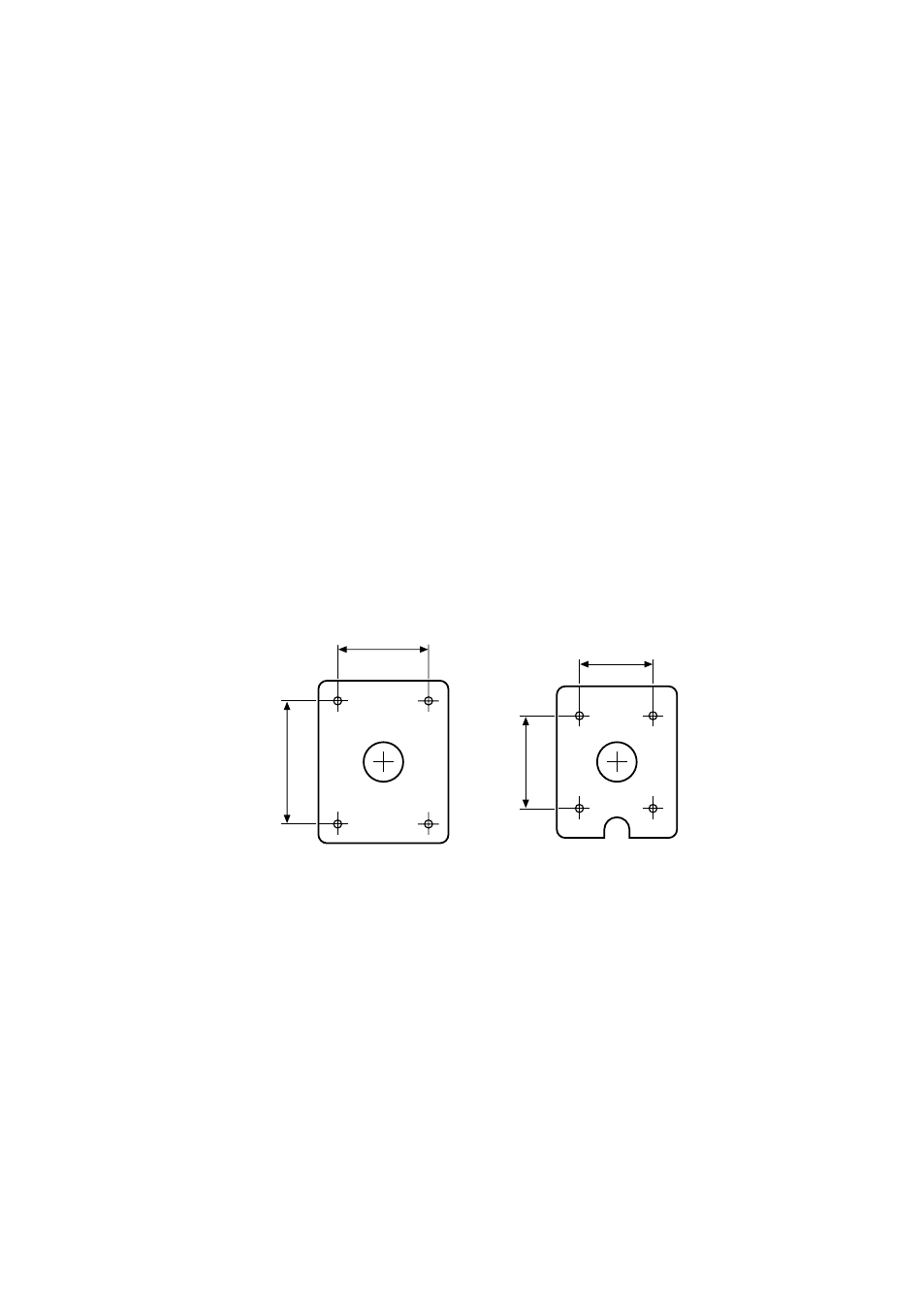

For Standard bracket For Easy bracket
Mounting Template
Dimensions: mm
5.1.2 With using an Easy Bracket
) Drill the holes on wall using a supplied template.
) Insert the anchors () to the drilled holes.
3) Match the EASY BRACKET to the drilled position.
4) Fix the EASY BRACKET by using Wall fixing screws (3).
5) Connect hook (j) to peg (l).
6) Fix Bracket Foot (d) to EASY BRACKET by using wrench bolts (4) through Foot mount Hole (4x) (e).
