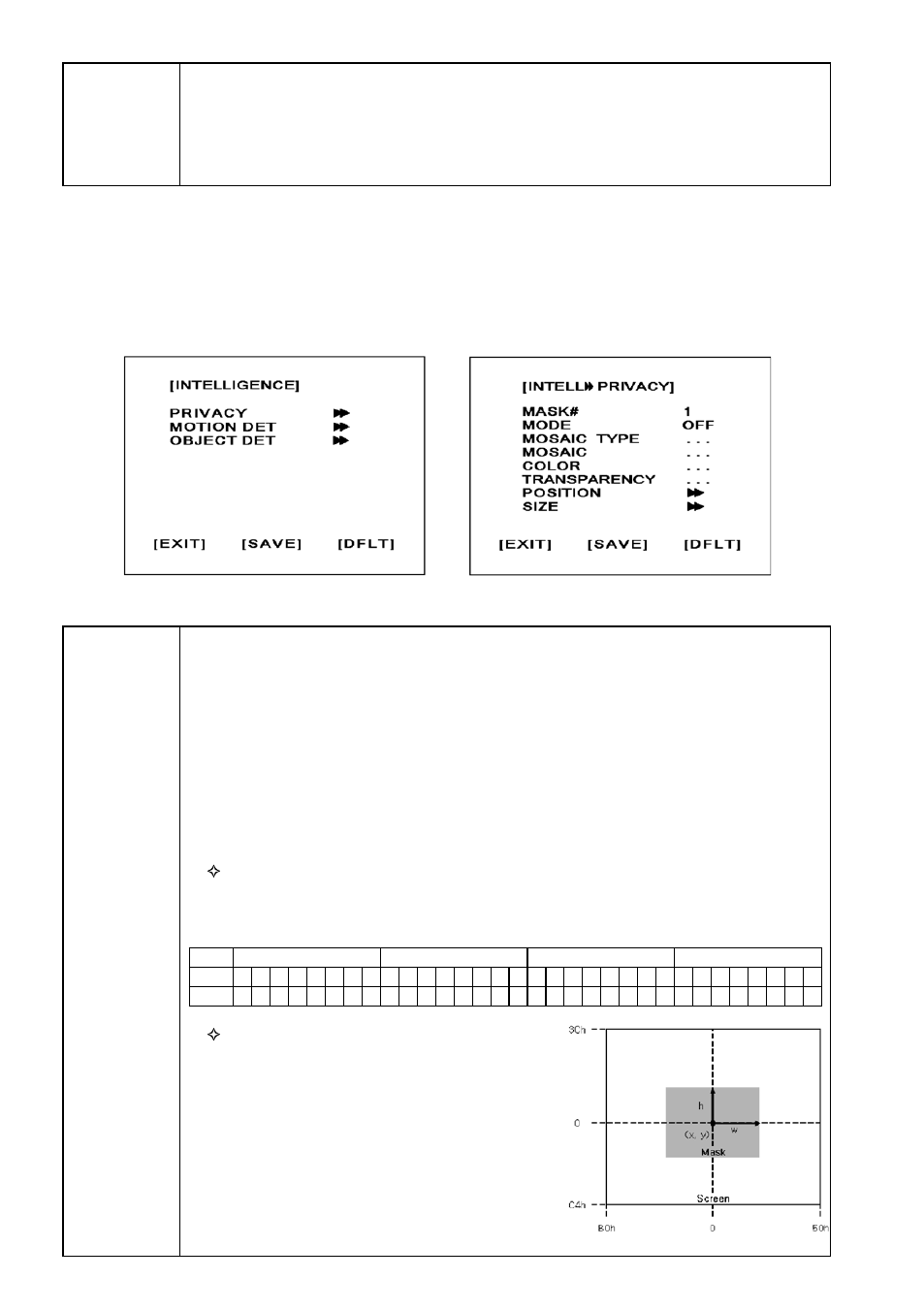

6.2.5 INTELLIGENCE
FREEZE
It captures an image in the field memory of the camera so that this image can be output
continuously.
Select real or still mode
• OFF/ON
PRIVACY
Hide an area you want to hide on the screen
• Mask can be set on up to 6 places according to Pan/Tilt positions.
• Individual on/off zone masking settings
• Two groups from among 4 colours in each group including mosaic and transparency can
be individually set for each or 6 privacy zones.
• Interlocking control with zooming
• Interlocking control with Pan/Tilt (Interlock mode)
• Parameters in Visca Command (Privacy related commands in Command List)
Mask Number (mm)
Mask A = 00h ~ Mask P = 0Fh
Mask A has highest priority and Mask P has lowest priority.
pp pp pp pp
Bit 7 6 5 4 3   0 7 6 5 4 3   0 7 6 5 4 3   0 7 6 5 4 3   0
Mask # – – – – – – – – – – – – P O N M – – L K J I H G – – F E D C B A
Mask setting bit (pp pp pp pp)
Mask Modify setting (nn)
00h = modifying the mask size for the
existing mask size
0h = setting newly the mask size to default
value
Mask Center Position
x (pp) = B0h (-50h) ~ 50h
y (qq) = C4h (-3Ch) ~ 3Ch
