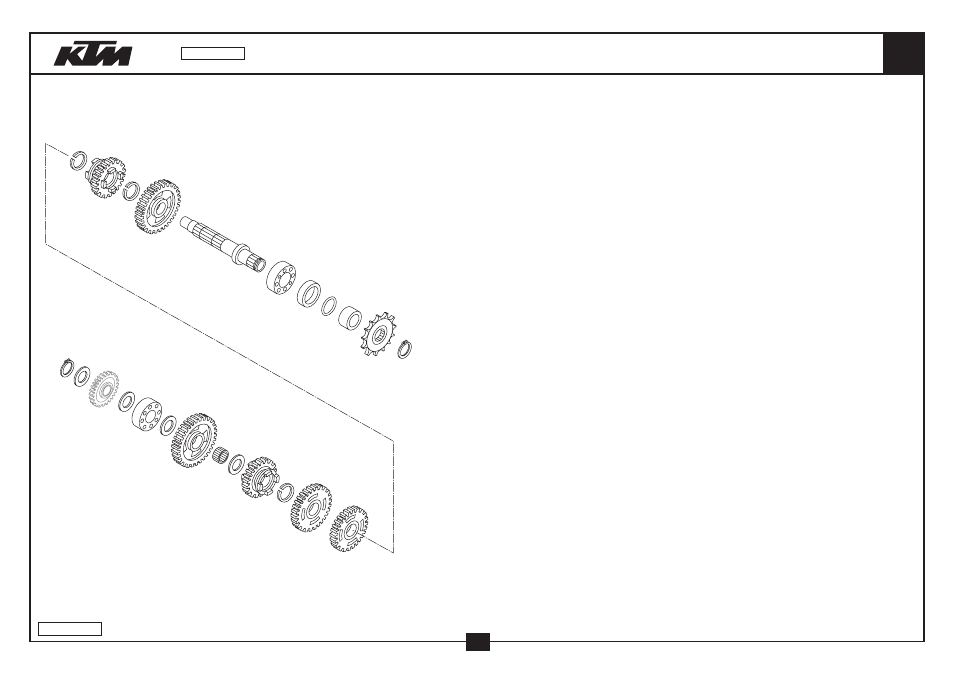

GETRIEBE II - ABTRIEBSWELLE TRANSMISSION II - COUNTERSHAFT 85
3
bl
bm
bn
bo
bp
bq
ck
cm
cn
cr
cs
ct
dk
dl
dm
dq
dq
dq
em
en
en
en
03-470.33.2
33
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
3 470.33.003.000 ABTRIEBSWELLE 85 SX 2003 COUNTERSHAFT 85 SX 2003 1
11 470.33.011.000 LOSRAD 2.G. 28-Z 03 IDLER GEAR 2ND G. 28-T 03 1
12 470.33.012.000 SCHIEBERAD 6.G. 21-Z 03 SLIDING GEAR 6TH G. 21-T 03 1
13 470.33.013.000 LOSRAD 3.G. 26-Z 03 IDLER GEAR 3ND G. 26-T 03 1
14 470.33.014.000 LOSRAD 4.G. 26-Z 03 IDLER GEAR 4TH G. 26-T 03 1
15 470.33.015.000 SCHIEBERAD 5.G. 25-Z 03 SLIDING GEAR 5TH G. 25-T 03 1
16 470.33.016.000 LOSRAD 1.G. 29-Z 03 IDLER GEAR 1ST G. 29-T 03 1
20 470.33.099.000 NADELKRANZ K15X19X10S NEEDLE BEARING K15X19X10S 1
22 490.33.091.000 SEEGERRING AS20X1,75 DIN 471 CIRCLIP AS20X1,75 1
23 0471 150010 SICHERUNGSRING DIN0471-15X1 CIRCLIP DIN0471-15X1 1
27 0625 160026 RILLENKUGELLAGER 16002 BALL BEARING 16002 1
28 0625 062041 RILLENKUGELLAGER 6204 JR2 C4 BALL BEARING 6204 JR2 C4 1
29 470.33.029.013 KETTENRAD 13-Z 85 SX 2003 ENGINE SPROCKET 13-T 85 SX 03 X
29 470.33.029.014 KETTENRAD 14-Z 85 SX 2003 ENGINE SPROCKET 14-T 85 SX 03 1
30 470.33.030.000 DISTANZBÜCHSE KETTENRITZEL SPACER FOR SPROCKET 1
31 460.33.031.000 O-RING 18,77X1,78 O-RING 18,77X1,78 1
32 0760 263570 WELLENDICHTRING 26X35X7 B SHAFT SEAL RING 26X35X7 B 1
36 0417 210120 SPRENGRING SW21 CIRCLIP SW21 3
42 470.33.040.000 ANLAUFSCHEIBE 15X25X1 STOP DISC 15X25X1 1
43 470.33.043.000 ANLAUFSCHEIBE 15X25X0,5 STOP DISC 15X25X0,5 3
