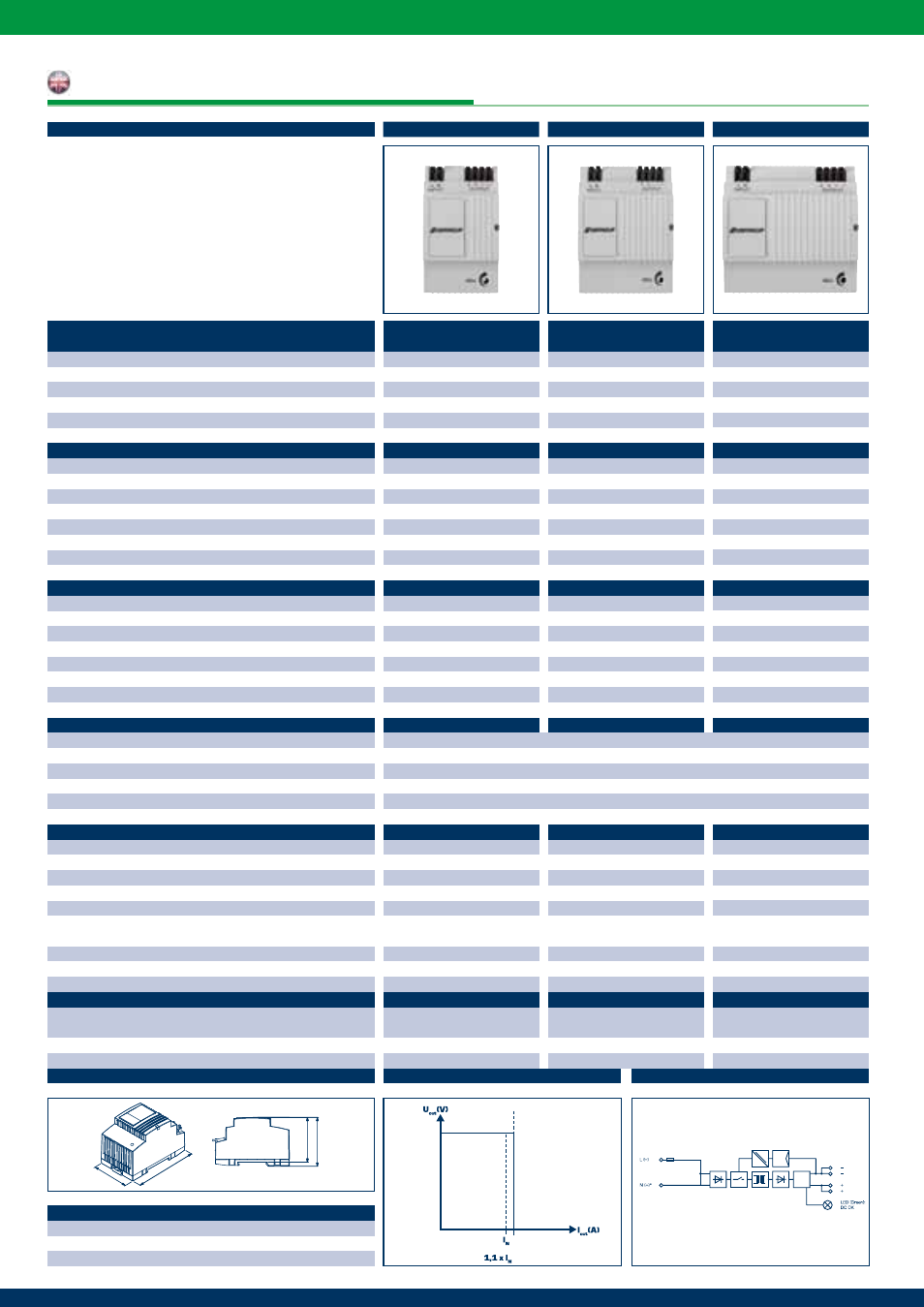

PSPI direct current power supplies
PSPI 230/24-1,3 PSPI 230/24-2,5 PSPI 230/24-4
Functional circuit diagram
• Primary clocked switch-mode power supply
• Easy to mount on TS35 DIN rail
• Wide-range input
• Adjustable output voltage
• No-load and short-circuit safe
• Thermal overload protection
• Ambient temperature: -25 to 55°C
• IP 20 protection
• Step-shaped profile is perfect for small distributor installation
• Standards: EN 61558-2-17, EN 60950 (safety);
EN 61204-3 (EMC)
Type
Cat. no.
Size (L x W x H) with TS35 x 7.5 mm
Weight
Classification
Mount on DIN rail
Connection type
Wire connection cross-section
Input data
Nominal input voltage
Input voltage range
Nominal frequency range
Input current at nominal load (110 / 230 V AC)
Inrush current limit
Input fuse, internal
Recommended series fuse*
Mains failure bridging at nominal load (110 / 230 V AC)
Output specifications
Output voltage
Output voltage range
Output current
Overload behaviour
Can be wired in parallel
Can be wired in series
Efficiency
Residual ripple (nominal load)
Safety and protection
Protection
Test voltage
Protection class
Connection cable
Intended use
Resistance to feedback current
Surroundings
Indicator
Storage temperature
Ambient temperature
Derating
Mounting position
Permitted air humidity
Current capacity at any mounting position
Cooling
Distance from adjacent components
Standards
Safety
EMC
UL approvals
Dimension diagram
PSPI 230/24-1,3
PSPI 230/24-2,5
PSPI 230/24-4,0
PSPI 230/24-1,3 Qty.
16110.2 1
89 x 54 x 62
170 g
Primary clocked switch-mode power supply
TS35 acc. to EN 60715
tension-spring connection
max. 2.5 mm²
100 - 240 V AC
85 - 264 VAC (120-373 VDC)
44 - 66 Hz
0.7/0.5 A
< 30 A, NTC
2 A (slow-acting)
6A, 10A, 16A characteristics B,C
10 / 80 ms
24 V DC ± 2%
22.8 - 26.4 V DC
1.3 A
constant current (U/I characteristic curve)
yes
yes
typ. 82%
typ. 100mVss
LED green
-25 to +80°C
-25 to +55 °C
-3%/K > +45°C
horizontal for TS35
30% to 85% relative humidity,
no condensation allowed
max. 0.9 A
self-cooling
15mm right/left, 70mm top/bottom
EN 61558-2-17
EN 60950 (SELV)
EN 61204-3
pending
Output characteristic curve
PSPI 230/24-2,5 Qty.
16111.2
1
89 x 72 x 62
240 g
Primary clocked switch-mode power supply
TS35 acc. to EN 60715
tension-spring connection
max. 2.5 mm²
100 - 240 V AC
85 - 264 V AC ( 120-373 V DC)
44 - 66 Hz
1.4 / 0.6 A
< 30 A, NTC
2 A (slow-acting)
6A, 10A, 16A characteristics B,C
10 / 80 ms
24 V DC ± 2%
22.8 - 26.4 V DC
2.5 A
constant current (U/I characteristic curve)
yes
yes
typ. 88%
typ. 100mVss
LED green
-25 to +80°C
-25 to +55 °C
-3%/K > +45°C
horizontal for TS35
30% to 85% relative humidity,
no condensation allowed
max. 1.6 A
self-cooling
15mm right/left, 70mm top/bottom
EN 61558-2-17
EN 60950 (SELV)
EN 61204-3
pending
PSPI 230/24-4 Qty.
16112.2 1
89 x 90 x 62
300 g
Primary clocked switch-mode power supply
TS35 acc. to EN 60715
tension-spring connection
max. 2.5 mm²
100 - 240 V AC
85 - 264 V AC ( 120-373 V DC)
44 - 66 Hz
1.6 / 0.9 A
< 30 A, NTC
2 A (slow-acting)
6A, 10A, 16A characteristics B,C
15 / 100 ms
24 V DC ± 2%
22.8 - 26.4 V DC
4.0 A
constant current (U/I characteristic curve)
yes
yes
typ. 88%
typ. 100mVss
LED green
-25 to +80°C
-25 to +55°C
-3%/K > +45°C
horizontal for TS35
30% to 85% relative humidity,
no condensation allowed
max. 2.4 A
self-cooling
15mm right/left, 70mm top/bottom
EN 61558-2-17
EN 60950 (SELV)
EN 61204-3
pending
IP 20
4.2 kV DC
II (in a closed electrical cabinet)
Use for connecting copper cable, with min. 60°C or 60/75°C
For use in zones with contamination degree 2
Max. 30 V DC
A B C D
54 89 59 54
72 89 59 54
90 89 59 54
C
B
A
D
* A DC series fuse is required for the the DC input voltage.
