Guntermann & Drunck GmbH Operating Instructions
CATVision (MC)
4 Power Supply
4.1 In general
Connect the delivered power cables to the
Main POWER jack of the devices
(CATVision-CPU and CATVision-CON).
As an option you can connect a redundant power via Optional Red. Power
jack. For this use the power set Power-Set 12/Typ 2 (available as option).
Connection for the
main power supply
Connection for the optional
redundant power supply
Keyb PS/2.
Mouse PS/2
Monitor
CPU
Line In Line Out RS 232
VGA Keyb. Mouse CPU
Trans
USB K/M
CPU
USB 1.1
Transmission 12V DC/0,6A
Red. Power
100-240V
/6
0-50H
z
140-82m
A

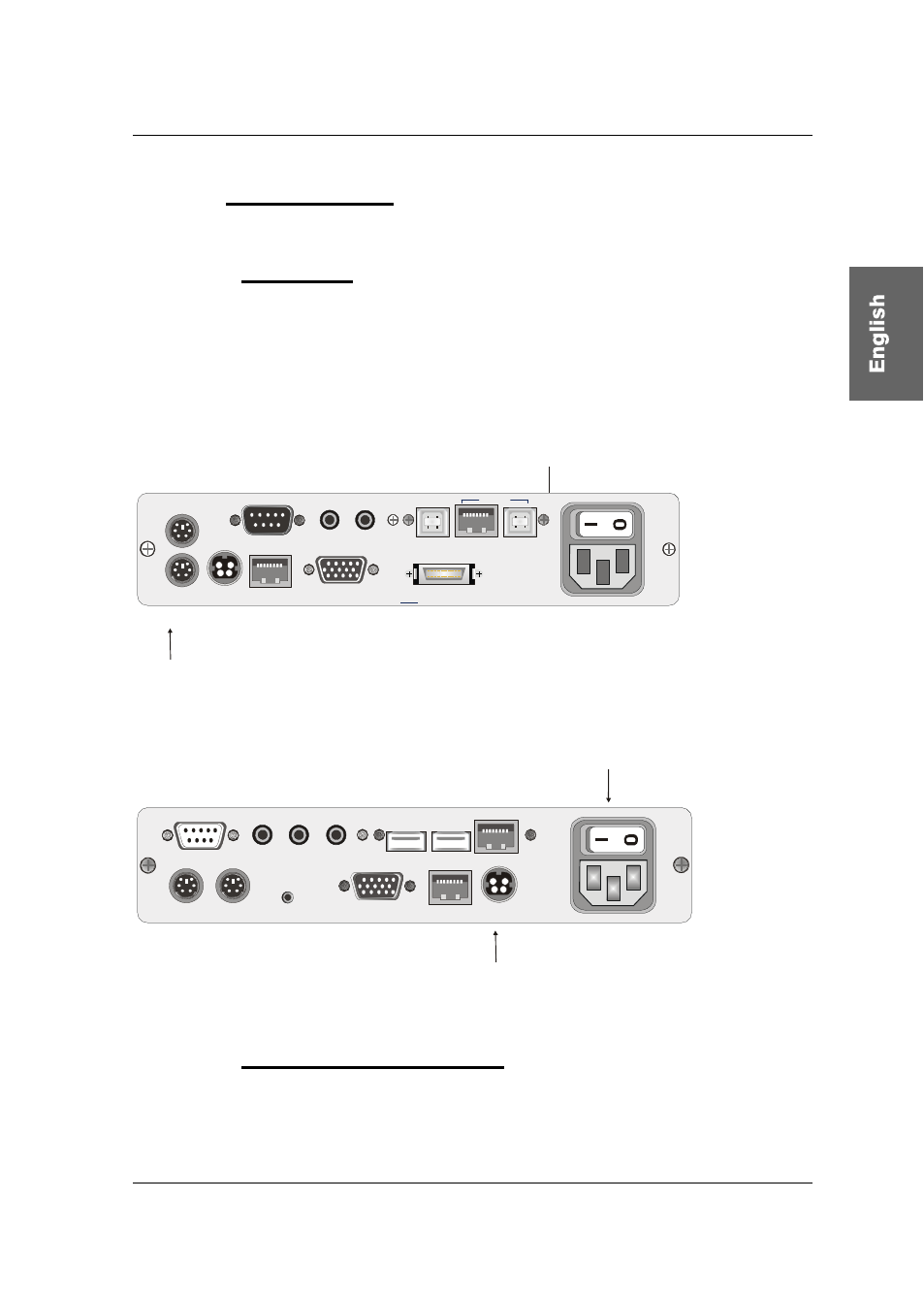

Rear view of CATVision-CPU
Connection for the optional
redundant power supply
Connection for the
main power supply
Line In Micro In RS 232 Speaker
Keyb. Mouse PS/2
12V DC/0,9A
Monitor Transmission Red. Power Service
Keyb. Mouse USB
USB Trans
100
-240V
/60-5
0H
z
0,
24
-0
,1A
Rear view of CATVision-CON
4.2 Note for USB-operation
Only high-Power USB devices (up to 500 mA) are supported by the
CATVision-System.
page 13
