Installation
3 · MultiPower-6

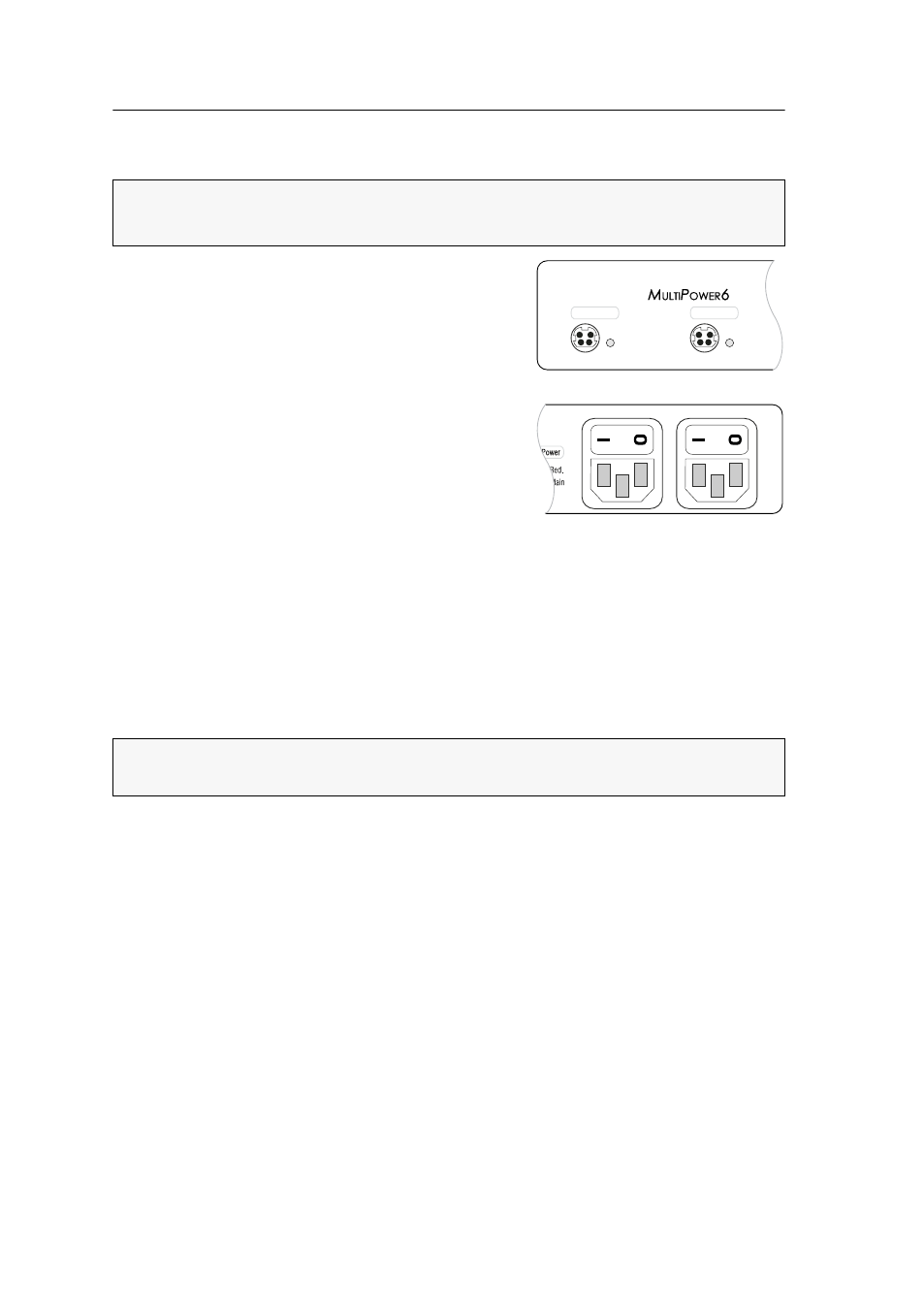

Installation
1. Use a power loop cable to connect one of the
compatible devices (12VDC/1.2A) to one of the
six Power Out sockets.
2. Connect one of the supplied power cables to the
Main Power socket.
Connect the power cable to a power outlet.
3. If necessary, connect one of the supplied power
cables to the Red. Power socket to establish a
redundant power supply.
Connect the power cable to a power outlet of another power circuit.
Startup
1. Turn on the power switch of the internal Main Power power pack.
2. Turn on the power switch of the internal Red. Power power pack.
NOTE: The MultiPower-6 supplies up to six devices with 12 Volt.
The maximum power consumption permitted per device is 1.2 A.
NOTE: After you turn on the central power supply, the outputs are turned on suc-
cessively.
Power Out 1
Status
12VDC/1,2A
Power Out 2
Status
12VDC/1,2A
