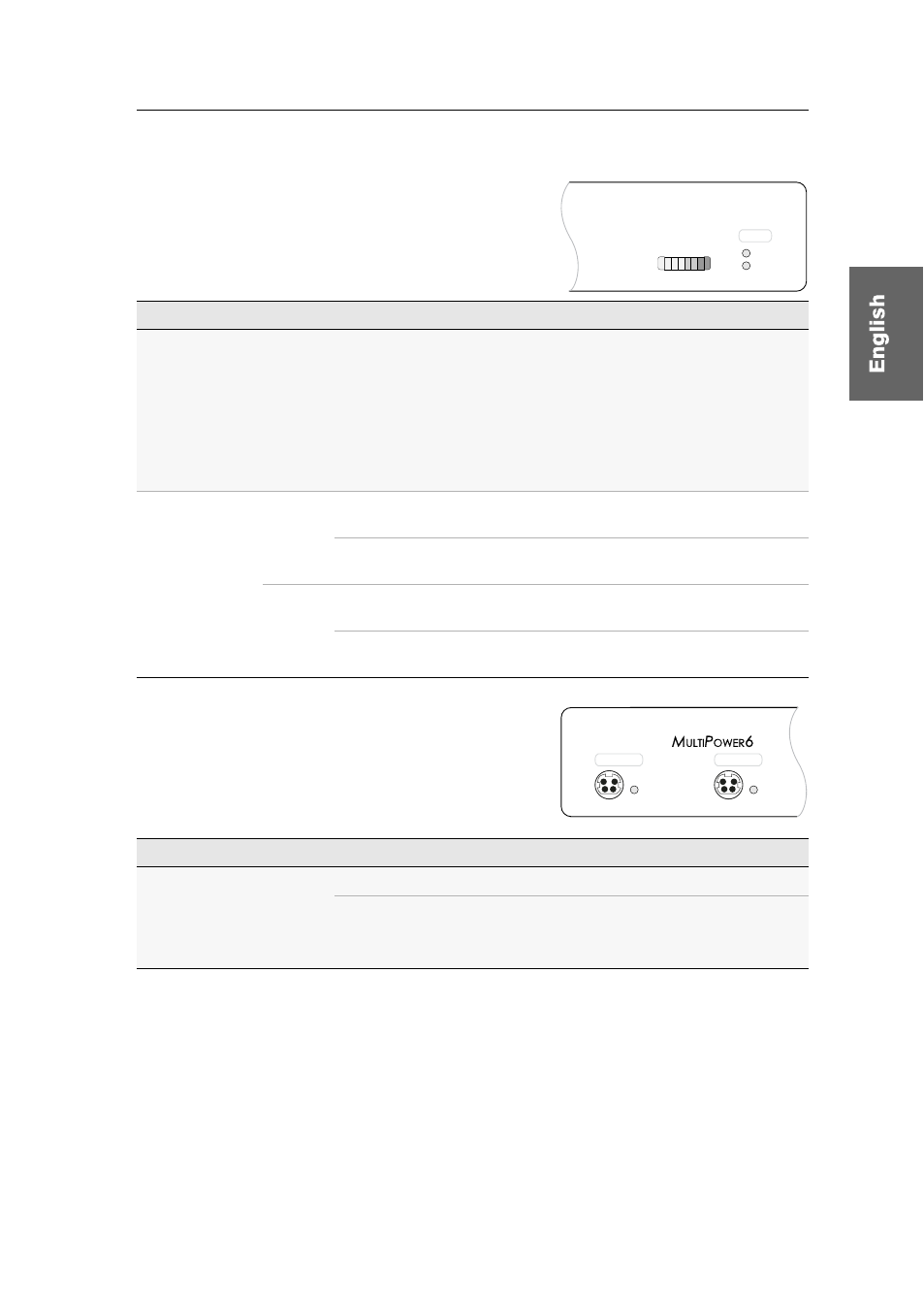

Status displays
MultiPower-6 · 4
Status displays
The Load and Power LEDs on the front and the
back panel of the central power supply show the
device status and the load of active devices.
The LED next to each Power Out socket on the back
panel shows the status of the socket.
Section LED Status Meaning
Load The load of the active devices is displayed in an LED scale.
Four green and two yellow LEDs highlight the reaching of
the maximum load.
If the maximum load is exceeded, one or two red LEDs
light up.
Note: If one or two red LEDs indicate that the temperature
within the device is too high, make sure to cool the device.
Power Red. On The power pack is turned on and supplies the required
voltage.
Off The power pack is turned off, or there is no connection to
the mains.
Main On The power pack is turned on and supplies the required
voltage.
Off The power pack is turned off, or there is no connection to
the mains.
Section LED Status Meaning
Power Out [x] Status On Voltage available at this output.
Off No voltage available at this output.
In case of an overload or a short circuit, the output is disa-
bled but becomes active after 10 seconds.
Load
Red.
Main
Power
Power Out 1
Status
12VDC/1,2A
Power Out 2
Status
12VDC/1,2A
Power Out 1
Status
12VDC/1,2A
Power Out 2
Status
12VDC/1,2A
