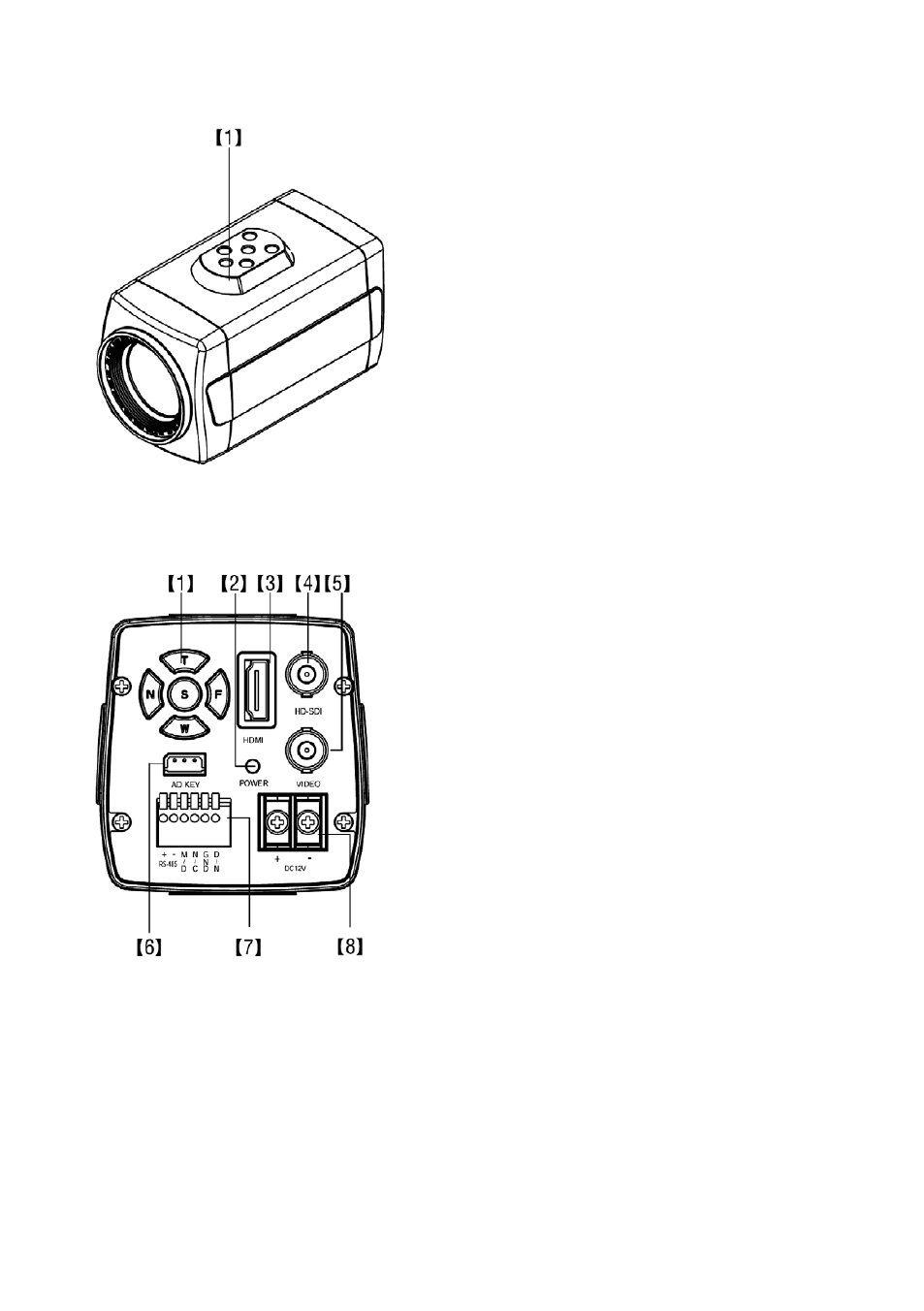

5. Part Names and Functions
(1) OSD / Zoom / Focus control
(2) Power LED
(3) HDMI
(4) HD-SDI: BNC Cable
(5) CVBS Out
(6) AD Key
: GND
: AD-key
3: GND
(7) Control Terminal
: RS-485 (+)
: RS-485 (-)
3: Motion Detection Out
4: No Connection
5: Ground
6: Day&Night Input (Low: Night, High: Day)
(8) Power: DCV
(1) Camera installation bracket
The bracket can be fixed at the top or bottom of the camera.
