6. Connections

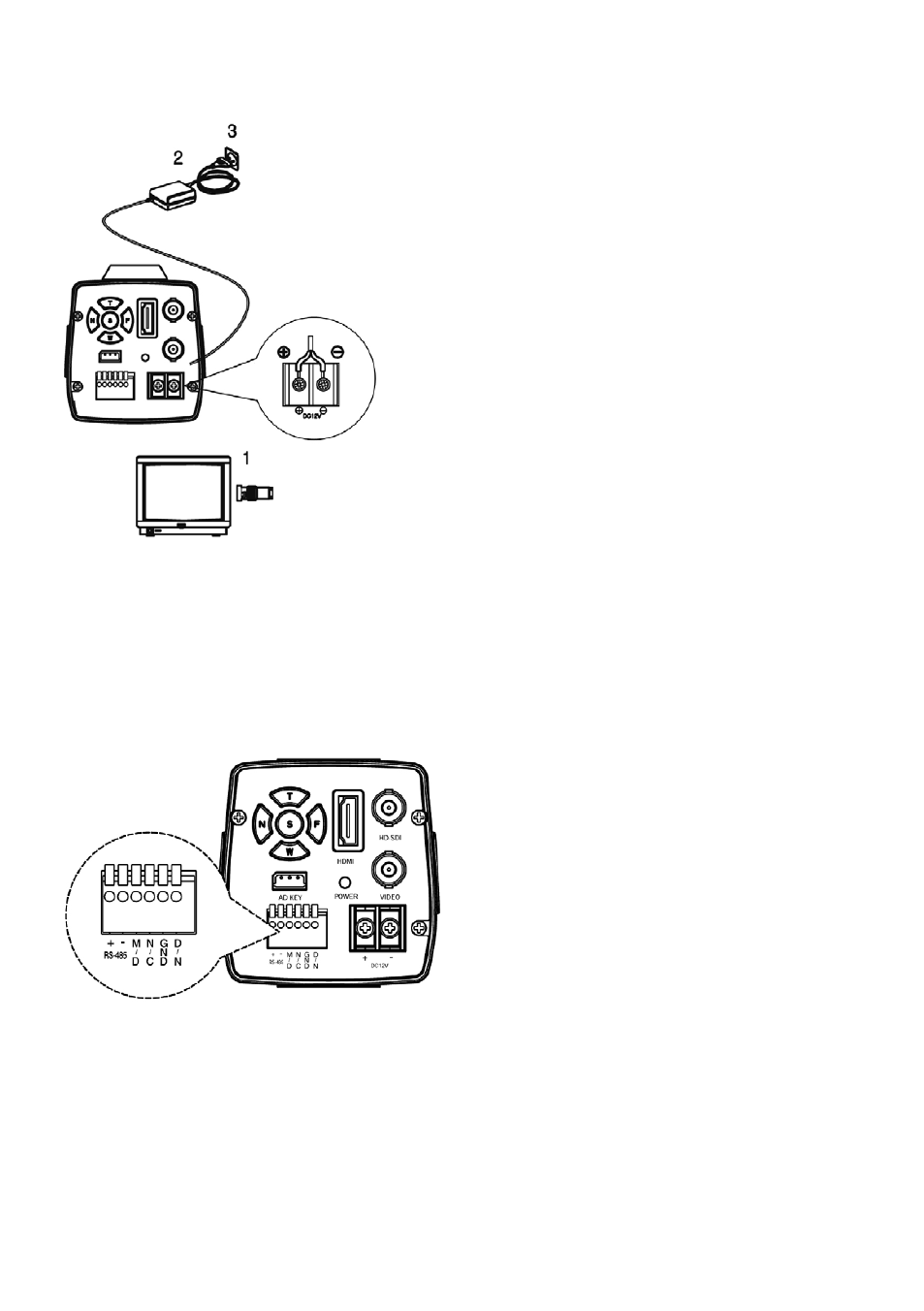

Basic connection
The peripheral devices (DVR, monitor, lens, etc), DC adaptor
and cables are not supplied.
1. Connecting the monitor
Make the video signal connection between the camera
and the monitor or time lapse monitor or DVR.
2. Use a commercially available DC12V adaptor
Connect an DC V power source to the DC V input
terminal on the back of the camera.
3. Insert the plug of this power cord into a wall outlet.
The POWER indicator will light. Adjust the picture on the
monitor using the Brightness and Contrast controls etc.
To monitor’s Video Input
or Camera Input
6.1 External Device Connections
RS-485 COMMUNICATION
Connect to an external controller of RS-485 format
Motion Detection Out
When the motion detection function is working.
DC3.3V is output to OUT pin and GND pin.
Day & Night input
Day/Night mode of the camera can be switched by
signal from an external device.
To use this function, <DAY&NIGHT> setting of the
camera should be set to the <EXT>.
NOTE: Use a relay unit if the voltage or current of
the connected device exceeds the ratings.
