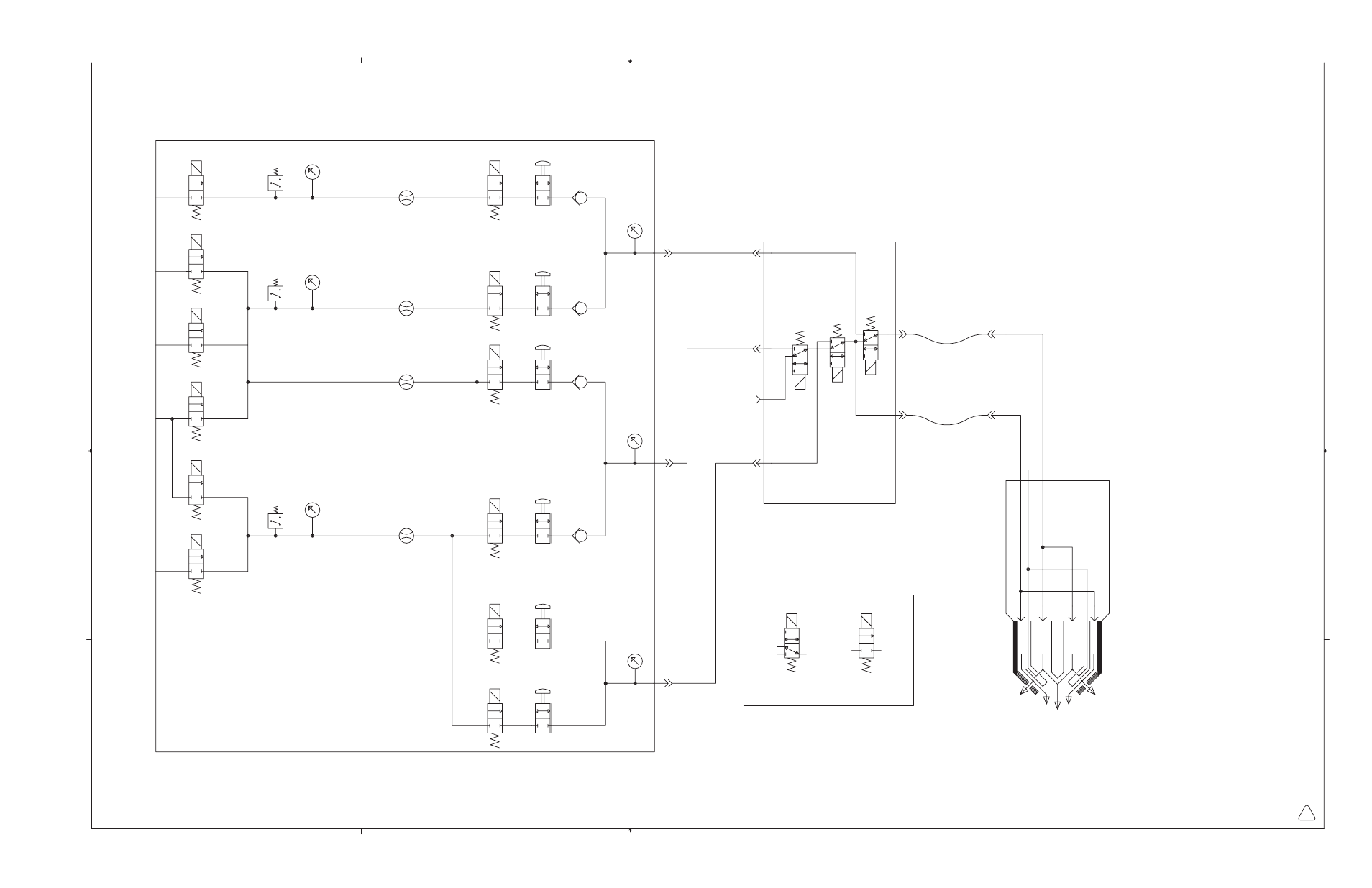

SCHEM:HD3070 GAS CSL MANUAL
013-2-318
1 OF 4
CHK1
CHK2
CHK4
CHK3
HYDEF GAS CONSOLE
H35 IN
AIR IN
O2 IN
N2 IN
CH4 IN
P/N 078059
P/N 129239
Off Valve Sub Assembly
P/N 128101 (15A)
MV5
MV1
MV4
MV3
MV2
PS2
PS1
PG5
PG4
PG3
PG2
PG1
FM4
FM3
FM2
Metering Valve, H35 Plasma Gas
Pressure Gauge, Plasma Gas Operating
Pressure Gauge, Shield Gas Inlet
Metering Valve, N2 Preflow
Metering Valve, N2 or CH4 Shield Gas
Metering Valve, Plasma Gas
Metering Valve, O2 or Air Shield Gas
Pressure Switch, O2 or Air Gas Inlet
Pressure Switch, H35 Gas Inlet
Pressure Gauge, Shield Gas Operating
Pressure Gauge, Plasma Gas Inlet
Pressure Gauge, H35 Plasma Gas Inlet
Flow Meter, N2 or CH4 Shield Gas
Flow Meter, O2 or Air Shield Gas
Flow Meter, Plasma Gas
PAC186 Torch Assembly
FM1
Flow Meter, H35 Gas
Metering Valve, O2 or Air Preflow
MV6
Pressure Switch, N2 or CH4 Gas Inlet
PS3
Pressure Gauge, Preflow Gas
PG6
FM1
MV1
PG4
MV4
MV3
FM3
PG6
PG1
MV5
PS1
MV2
PS2
FM2
PG2
MV6
PG3
PG5
PS3
FM4
ATM
48"
Shield
Grey
48"
Plasma
Clear
SV14
SV15
SV16
UNENERGIZED
IN
OUT
EXH
UNENERGIZED
IN
OUT
A
B
C
D
4
3
2
1
A
B
C
D
1
4
3
2
35'
Plasma Operating
Clear
Grey
Shield Operating
35'
Red
Plasma & Shield Preflow
35'
SV1
SV2
SV3
SV5
SV6
SV11
SV12
SV10
SV9
SV8
SV7
SV4
A
17
