KTM SXC 540 Benutzerhandbuch
Seite 16

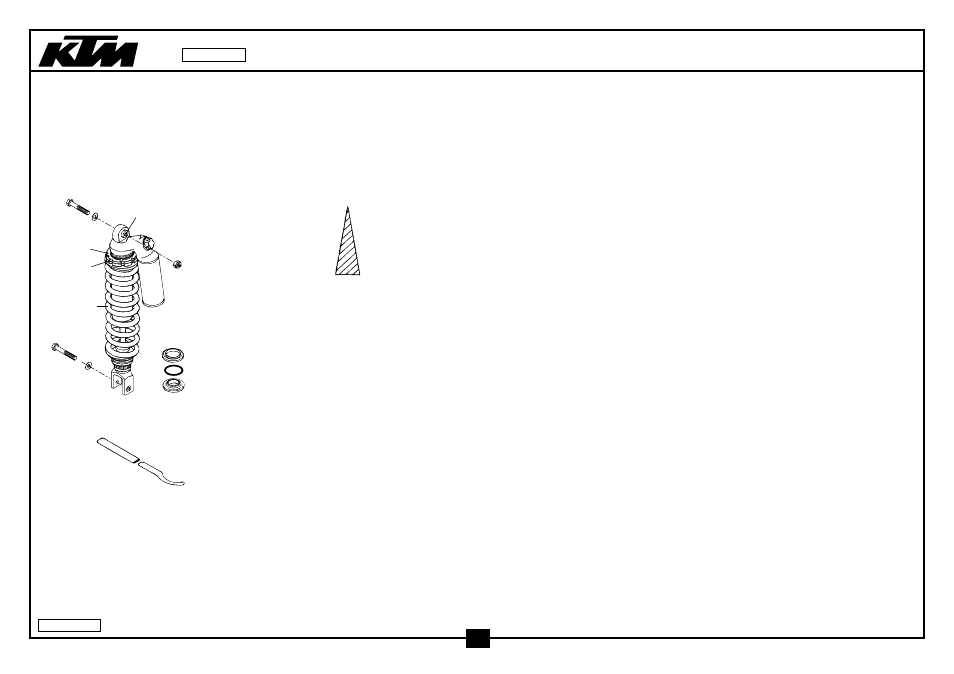

FEDERBEIN WHITE POWER
SHOCK ABSORBER WP
400/540 ‘98
1
3
10
11
12
14
15
16
16
17
20
25
7
8
FEDER / SPRING / RESSORT
Weich / soft / douce
Hart / hard / dure
54-260
57-260
60-260
63-260
66-260
70-260
95-583.04.2
14
FIG
TEILNR/PARTNR
BEZEICHNUNG
DESCRIPTION
QTY
1
583.04.010.800
MONOSHOCK WP „0118Q782“ ‘96
MONOSHOCK WP „0118Q782“ ‘96
1
3
583.04.011.054
FEDER WP 54-260
SPRING WP 54-260
X
3
583.04.011.057
FEDER WP 57-260
SPRING WP 57-260
X
3
583.04.011.060
FEDER WP 60-260
SPRING WP 60-260
X
3
583.04.011.063
FEDER WP 63-260
SPRING WP 63-260
1
3
583.04.011.066
FEDER WP 66-260
SPRING WP 66-260
X
3
583.04.011.070
FEDER WP 70-260
SPRING WP 70-260
X
7
542.04.109.000
KONTERMUTTER
COUNTER NUT
1
8
542.04.009.000
EINSTELLMUTTER
ADJUSTING NUT
1
10
583.04.017.000
RING FÜR MONOSHOCK
RING FOR SHOCK ABSORBER
1
11
583.04.090.000
O-RING 32 X 8
O-RING 32 X 8
1
12
583.04.018.000
O-RING TRÄGER 14MM HOCH
O-RING CARRIER 14MM HIGH
1
14
565.03.086.000
SONDERSCHRAUBE M10X47 10.9
SPECIAL SCREW M10X47 10.9
1
15
565.03.093.000
SONDERSCHRAUBE M10X55 10.9
SPECIAL SCREW M10X55 10.9
1
16
0125 100003
UNTERLEGSCHEIBE DIN0125-A10,5
WASHER DIN0125-A10,5
2
17
543.10.086.100
SS.MUTTER M10 CU SW=14
SELF LOCKING NUT M10 CU WS=14
1
20
542.04.020.100
BUCHSE KPL. D=24MM B=24MM
BUSHING CPL. D=24MM B=24MM
1
25
543.12.024.000
HAKENSCHLÜSSEL KPL.
HOOK WRENCH CPL.
2
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
98-583.04.2
