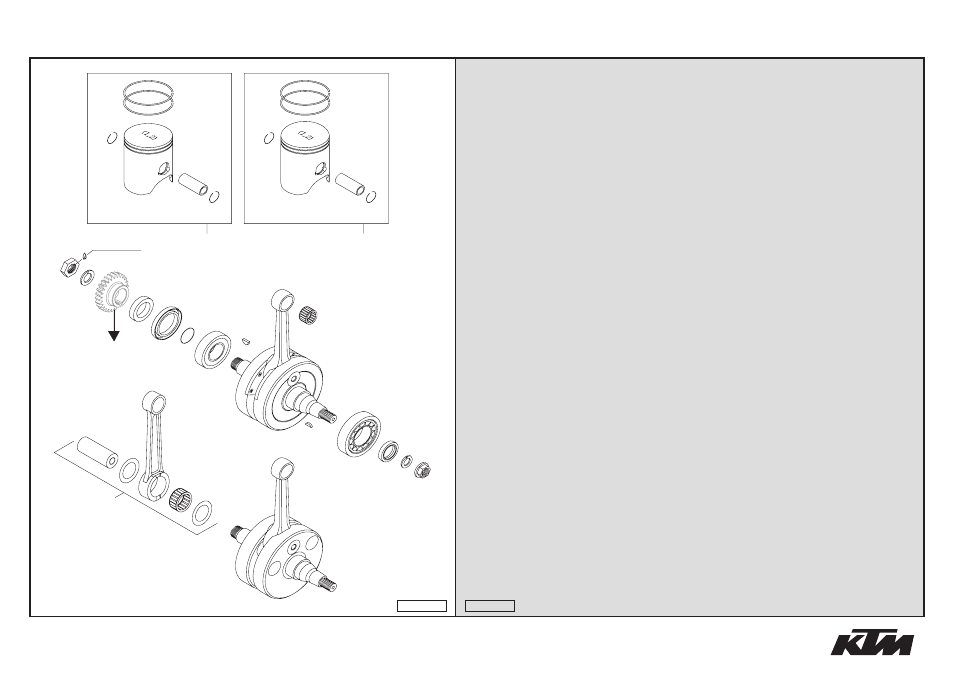

KURBELWELLE · KOLBEN
»
CRANKSHAFT · PISTON 250-300 / 2005
* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1* 548.30.007.100/ I KOLBEN I KPL.250 SX VERTEX 05 PISTON I CPL.250 SX VERTEX 05 1
1* 548.30.007.100/ II KOLBEN II KPL.250 SX VERTEX 05 PISTON II CPL.250 SX VERTEX 05 1
2 546.30.207.100/ I KOLBEN I KPL. 66,4MM 250 2000 PISTON I CPL. 66,4MM 250 2000 1
2 546.30.207.100/ II KOLBEN II KPL. 66,4MM 250 2000 PISTON II CPL. 66,4MM 250 2000 1
2 548.30.107.000/ I KOLBEN I KPL. 300 VERTEX 2004 PISTON I CPL. 300 VERTEX 2004 1
2 548.30.107.000/ II KOLBEN II KPL. 300 VERTEX 2004 PISTON II CPL. 300 VERTEX 2004 1
3 540.30.074.000 DRAHTSPRENGRING C18X1,5 WIRE LOCK RING C18X1,5 2
4 546.30.233.000 KOLBENBOLZEN 18X55,8 250 2000 PISTON PIN 18X55,8 250 2000 1
6 546.30.029.000 SK-MUTTER M18X1,5-LINKS HEX.NUT L/SH M18X1,5 1
7 581.32.072.000 SPERRKANTRING VSK 18 LOCK WASHER VSK 18 1
9 548.30.016.000 DISTANZHÜLSE 28X38X10 03 SPACER SLEEVE 28X38X10 03 1
10 0760 385273 WELLENDICHTRING 38X52X7 BTSL SHAFT SEAL RING 38X52X7BTSL 1
11 0625 623204 RILLENKUGELLAGER 32X65X17 NTN BALL BEARING 32X65X17 NTN 1
12* 548.30.018.200 KURBELWELLE 250 SX 05 CRANKSHAFT 250 SX 05 1
SX SX
13 548.30.118.000 KURBELWELLE 250/300 MXC,EXC 04 CRANKSHAFT 250/300 MXC, EXC 04 1
EXC+MXC EXC+MXC
14 544.30.034.000 NADELLAGER KBK 18X22X20 NEEDLE BEARING KBK 18X22X20 1
15 0888 030050 SCHEIBENFEDER DIN6888-3X5X13 WOODRUFF KEY DIN6888-3X5X13 1
16 565.30.123.200 ZYLINDERROLLENL. NJ207ET2XCS42 CYLIND.ROL.BEAR. NJ207ET2XCS42 1
17 6 946 005 SCHEIBENFEDER 5X6,5 GEHÄRTET WOODRUFF KEY 5X6,5 HARDED 1
18 0760 253570 WELLENDICHTRING 25X35X7 BTSL SHAFT SEAL RING 25X35X7 BTSL 1
19 502.30.029.012 SPERRKANTRING VSK 12 LOCKING RING VSK 12 1
20 490.30.021.000 BUNDMUTTER M12X1 RECHTS COLLAR NUT M12X1 R/S 1
30 548.30.015.044 PLEUEL-REP. SATZ 250/300 CONROD REP. KIT 250/300 1
31 0770 250015 O-RING 25,00X1,50 NBR 70 O-RING 25,00X1,50 NBR 70 1
32 546.30.232.000 R-RING 66,4MM 250 2000 SQUARE RING 66,4MM 250 2000 2
250 250
32 548.30.132.000 R-RING 72,0MM 300 2004 R-RING 72,0MM 300 2004 2
300 300
05-548.30.2
6
1
7
9
bk
6
bl
bo
bp
bq
br
bs
bt
ck
dl
bm
3
3
4
bn
dm
LOCTITE 243
SX
KUPPLUNG
CLUTCH
dk
3
3
4
2
dm
MXC, EXC
05-548.30.2
