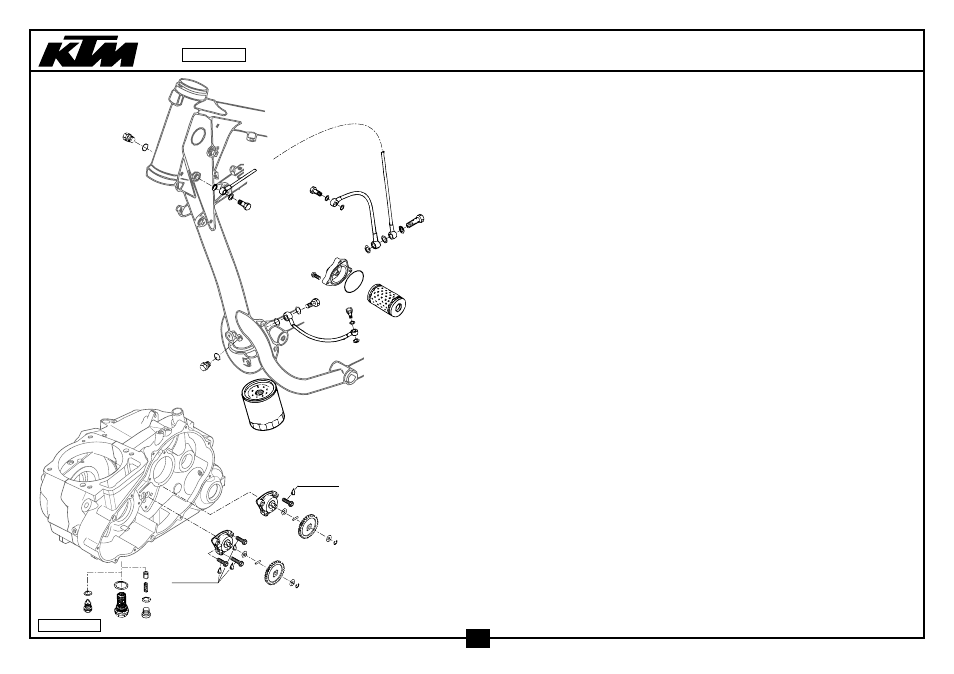

SCHMIERSYSTEM LUBRICATING SYSTEM 640 ‘98
25
26
45
45
12
44
46
46
30
40
45
45
45
20
43
12
45
45
25
26
9
18
15
16
17
18
19
13
60
32
32
150
46
47
LOCTITE 242
5
6
3
2
6
7
8
23
22
21
LOCTITE 242
4
3
3
5
6
2
1 6
7
97-577.38.0
12
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1 580.38.001.100 ÖLPUMPENRAD 31-Z OIL PUMP GEAR 31-T 1
2 0402 251980 NADELROL. DIN5402 NRA 2,5X19,8 NEEDLEROL.DIN5402 NRA 2,5X19,8 2
3 0015 060203 SK.BUNDSCHRAUBE M 6X20 SW=8 HH COLLAR SCREW M 6X20 WS=8 5
4 0015 060253 SK.BUNDSCHRAUBE M 6X25 SW=8 HH COLLAR SCREW M 6X25 WS=8 1
5 580.38.007.700 ÖLPUMPE MIKUNI G-73-10 OIL PUMP MIKUNI G-73-10 2
6 580.38.007.755 ANLAUFSCHEIBE 8,1 X 15 X 0,5 STOP DISK 8,1 X 15 X 0,5 4
7 0799 060000 SICH.SCHEIBE DIN6799-RS 6,0 TAB WASHER DIN6799-RS 6,0 2
8 584.38.001.000 ÖLPUMPENRAD 26-Z OIL PUMP GEAR 26-T 1
9 580.30.021.000 ÖLABLASSCHRB.M.MAGNET M12X1,5 OILDRAIN PLUG W.MAGNET M12X1,5 1
12 543.13.025.000 HOHLSCHRAUBE M10 X 1 HOLLOW SCREW M10 X 1 2
13 580.38.028.000 VENTILKOLBEN D=10MM VALVE PISTON D=10MM 1
15 580.38.019.100 ÖLVERSCHLUSSCHRAUBE M22X1,5 OIL DRAIN PLUG M22X1,5 1
16 580.38.017.100 CU-DICHTRING DIN7603-22X27X2 CU-SEAL RING DIN7603-22X27X2 1
17 0908 120153 VERSCHL.SCHR. DIN0908-M12X1,5 PLUG DIN0908-M12X1,5 1
18 580.38.022.000 CU-DICHTRING DIN7603-12X18X1,5 CU-SEAL RING DIN7603-12X18X1,5 2
19 580.38.023.300 DRUCKFEDER L=25MM D=1MM PRESSURE SPRING L=25MM D=1MM 1
20 580.38.005.000 ÖLFILTER OIL FILTER 1
21 0770 055020 O-RING 55,00X2,00 NBR70 0-RING 55,00X2,00 NBR70 1
22 580.30.008.600 FILTERDECKEL M10X1 FILTER COVER M10X1 1
23 0015 060253 SK.BUNDSCHRAUBE M 6X25 SW=8 HH COLLAR SCREW M 6X25 WS=8 3
25 0910 100003 VERSCHL.SCHR. DIN0910-M10X1 PLUG DIN0910-M10X1 2
26 580.38.022.900 CU-FÜLLRING 10 X 14 X 1,5 CU-SEAL RING 10 X 14 X 1,5 2
30 580.38.234.700 ÖLLEITUNG FILTER-RAHMENROHR OIL LINE FILTER-FRAME TUBE 1
R10/R10 - 865 MM R10/R10 - 865 MM
32 583.38.034.000 ÖLLEITUNG KUPP.DECKEL-RAHMEN OIL LINE CLURCH COVER-FRAME 2
R10/R8 - 203 MM R10/R8 - 203 MM
40 580.38.033.100 DOPPELHOHLSCHRAUBE M10 X 1 DUAL BANJO BOLT M10 X 1 1
43 580.38.130.000 DÜSENSCHRAUBE M 8 X 1 „150“ JET SCREW M 8 X 1 „150“ 1
44 580.38.030.000 HOHLSCHRAUBE M 8 X 1 DIN7643 BANJO BOLT M8 X 1 DIN7643 1
45 580.38.032.010 CU-DICHTRING DIN7603-10X14X1 CU-SEAL RING DIN7603-10X14X1 7
46 580.38.032.000 CU-DICHTRING DIN7603- 8X12X1 CU-SEAL RING DIN7603- 8X12X1 3
47 580.38.032.300 CU-FÜLLRING 8 X 12 X 1,5 CU-SEAL RING 8 X 12 X 1,5 1
60 583.38.045.000 SCHRAUBFILTER LC4’94 SCREW TYPE FILTER LC4’94 1
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
