KTM 640 - Handbuch (Seite 24)

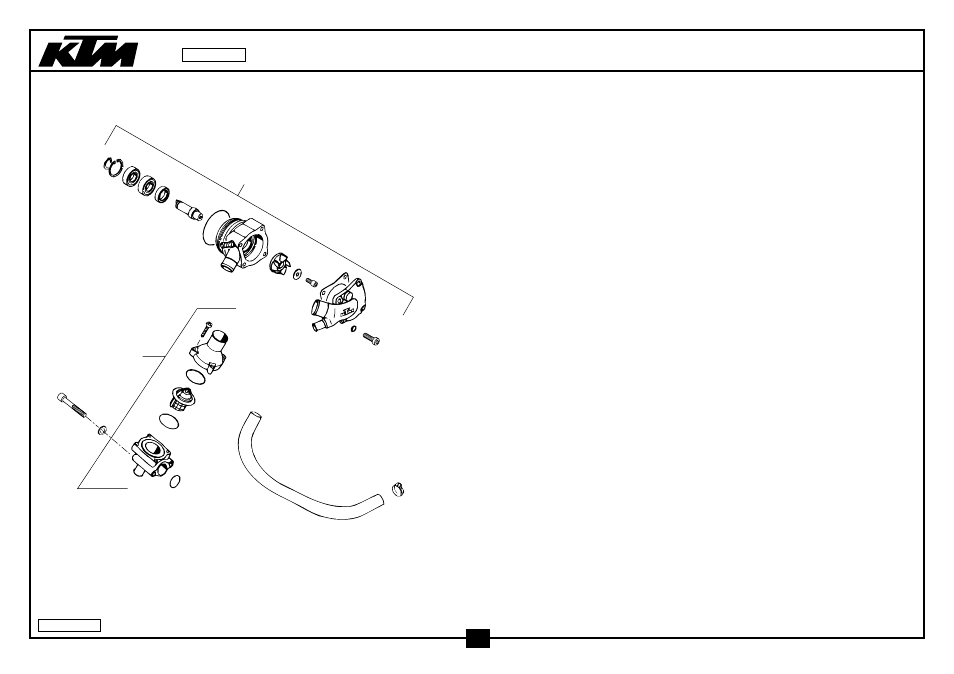

WASSERPUMPE WATER PUMP 640 ‘98
1
30
35
21
20
33
31
32
31
2
3
4
4
5
6
7
8
9
10 11
12
13
15
14
36
97-577.35.3
22
FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY
1 583.35.050.044 WASSERPUMPE MECHANISCH KPL.’94 WATER PUMP MECHANIC CPL.’94 1
2 0471 120010 SICHERUNGSRING DIN0471-12X1 CIRCLIP DIN0471-12X1 1
3 0472 280120 SICHERUNGSRING DIN0472 28X1,2 CIRCLIP DIN0472-28X1,2 1
4 0625 060016 RILLENKUGELLAGER 6001.2RSR C3 GROOVED BALL BEARING 6001.2RSR 2
5 0760 152472 WELLENDICHTRING 15X24X7 A-DUO SHAFT SEAL RING 15X24X7 1
6 544.35.010.000 WASSERPUMPENWELLE WATER PUMP SHAFT 1
7 0770 047015 O-RING 47,00X1,50 NBR 70 O-RING 47,00X1,50 NBR 70 1
8 580.35.002.600 WASSERPUMPENGEHÄUSE LOSE ‘92 WATER PUMP HOUSING ‘92 1
9 565.35.005.300 WASSERPUMPENRAD WATER PUMP WHEEL 1
10 0021 050003 SCHEIBE DIN9021-A 5,3 WASHER DIN9021-A 5,3 1
11 0912 050123 ISK.SCHRAUBE DIN0912-M 5X12 AH SCREW DIN0912-M 5X12 1
12 565.35.003.300 PUMPENDECKELDICHTUNG WATER PUMP COVER GASKET 1
13 583.35.001.000 WASSERPUMPENDECKEL LC4’94 WATER-PUMP COVER LC4’94 1
14 0984 060203 ZYL.SCHRAUBE DIN6912-M 6X20 AH SCREW DIN6912-M 6X20 4
15 0603 061001 CU-DICHTRING DIN7603- 6X10X1 CU-SEAL RING DIN7603- 6X10X1 4
20 583.35.025.001 KÜHLERGEWEBESCHLAUCH 12 X 3 RADIATOR HOSE(REENFORCED)12X3 1
21 583.35.099.000 SCHLAUCHBINDER GEMI 10-16 HOSE CLAMP GEMI 10-16 2
30 583.35.013.044 THERMOSTAT KPL. 70 GRAD LC4’94 THERMOSTAT CPL. 70 DG LC4’94 1
31 0770 320020 O-RING 32,00X2,00 O-RING 32,00X2,00 2
32 583.35.017.000 THERMOSTAT 70 GRAD LC4’94 THERMOSTAT 70 DEGREES LC4’94 1
33 0770 021020 O-RING 21,00X2,00 NBR70 O-RING 21,00X2,00 NBR70 1
35 0912 060453 ISK.SCHRAUBE DIN0912-M 6X45 AH SCREW DIN0912-M 6X45 2
36 0125 060003 UNTERLEGSCHEIBE DIN0125-A 6,4 WASHER DIN0125-A 6,4 2
* = NEUTEIL / NEW PART X = NACH BEDARF / AS REQUIRED
97-577.35.3
