Grundsystem-Anschluß
SYSTEMANSCHLÜSSE
4
8
12
16
3
7
11
15
2
6
10
14
1
5
9
13
PUSH OPEN
16
POWER
LOCK
ON
OFF
ALARM
MULTI
SCREEN
MULTISCREEN
SELECT
RESET
SPOT
SEQUENCE
VCR
CAM
CAMERA/PRESET POSITION
1
2
3
4
5
6
7
8
9
MON
CAM
0
System Controller for WJ-FS
616
F3
F4
F2
F1

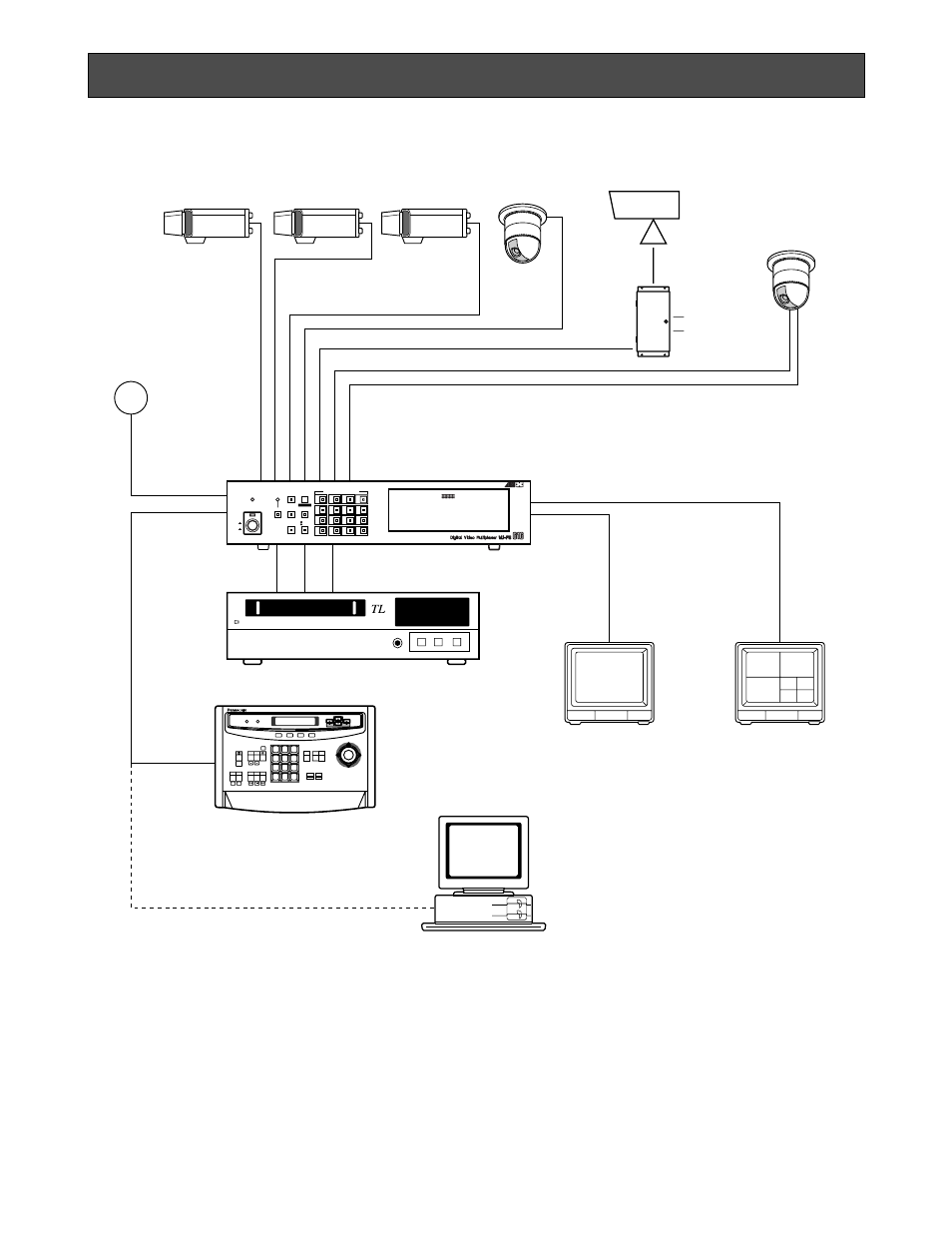

Die Abbildung zeigt die Anschlüsse für ein einfaches System mit Grundausstattung.
Alarm-Sensor
AUX
Alarm
Videosignal
Schnittstellenkabel RS-485
Video-Multiplexer
WJ-FS616
Langzeit-VTR
RS-232C (Festverdrahtet)
Spot-Monitor
Live Kanal 1-16
Multiscreen-Monitor
Live Kanal 1-16
Wiedergabe Kanal 1-16
Systemsteuergerät
WV-CU550A
Personal Computer
(Software)
