The
value of A12 in chain depends on the local power network. Never use more than three
in
one line.
Power
cable must be rated 20A min., have three conductors 1,5mm² min. conductor size
and
a outer cable diameter of 5-15mm. Use only original PowerCon plug from Neutrik. See
installation
manual from manufacturer (www.neutrik.com).
brown black live “L”
blue white neutral “N”
yellow/green green ground
EU cable: US cable:
35

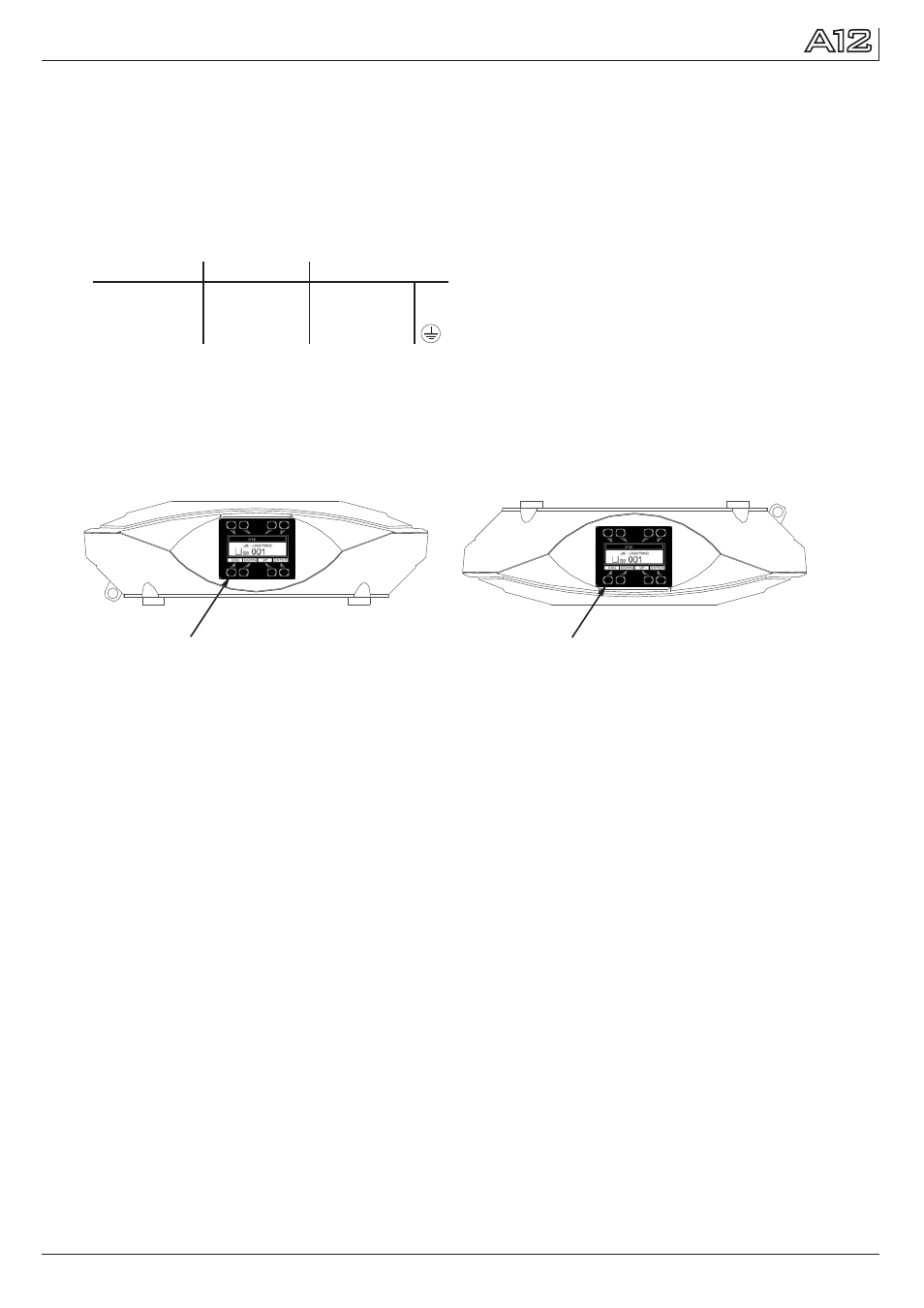

4. Control panel
The
A12 is equiped with a backlit graphic display, which can be rotated through 180 deg.
if
the unit is installed upside down
.
Rotating
the display
The orientation of the display relys to the keys which are being pressed. There are two
sets of keys located above and below the display and it orientates itself to the direction of
keys of which one key has been pressed. To adjust the personal setting of the A12 zoom
use keys located on the control panel. Functions see menu on the following page.
The A12 can be addressed in the main menu. For addressing in a case, the reset can be
aborted by pressing the right base button during powering the fixture. The main menu
also informs about the DMX-mode. If wireless DMX is used, the field intensity from the
sender will be displayed.
Press "ENTER" to enter a menu, select a function or apply a selection.
Press keys "DOWN" and "UP" to scroll within a menu or set values.
To escape a function press key "ESC".
A few functions can be entered or recalled by means of a combination of two key. For
example
in the area and in the
. To enter these functions press “ENTER” and keep it down and press
“ESC” in addtion. To leave the menu press the combination in the revers order. Press
"ESC" (keep it down) and press "ENTER" in addition.
The main menu can be locked to avoid an accidental change of the configuration. To lock
The display is not illuminated during reset. Slow flashing of the display illumination means
no DMX signal is connected. Fast flashing of the display illumination showing
means a failure was reported and stored in the ERROR LIST (To clear - see menu navi-
gation on page 24). Fast flashing of the display illumination showing an error message
means an current failure is reported, e. g.
- please contact your dealer or
our service department. If the A12 receives a DMX-signal the display illumination dims out
after 30 seconds in order not to irritated during standard operation.
FINE ADJUST SERVICE
STANDALONE
JB-Lighting
*PAN TIMEOUT
MODIFY RUN REMOTE
, and
press “ENTER” and keep it down and press “ESC” in addition. To unlock press "ESC"
(keep it down) and press "ENTER" in addition.
Special functions are assigned to the display lighting:
