Extended 8 Bit
(E8)
Channel 1 Pan
Channel 2 Pan fine
Channel 3 Tilt
Channel 4 Tilt fine
Channel 5 Control
Channel 6 Shutter
Channel 7 Dimmer
Channel 8 Zoom
Channel 9 Pattern
Channel 10 CTC
Channel 11 Fixed Colors
Channel 12 Pan/Tilt speed
Channel 13 Effect speed
Channel 14 Blackout move
Channel 15 Red
Channel 16 Green
Channel 17 Blue
Channel 18 White
Channel 19 Red
Channel 20 Green
Channel 21 Blue
Channel 22 White
Channel 23 Red
Channel 24 Green
Channel 25 Blue
Channel 26 White
Channel 27 Red
Channel 28 Green
Channel 29 Blue
Channel 30 White
Channel 31 Red
Channel 32 Green
Channel 33 Blue
Channel 34 White
Channel 35 Red
Channel 36 Green
Channel 37 Blue
Channel 38 White

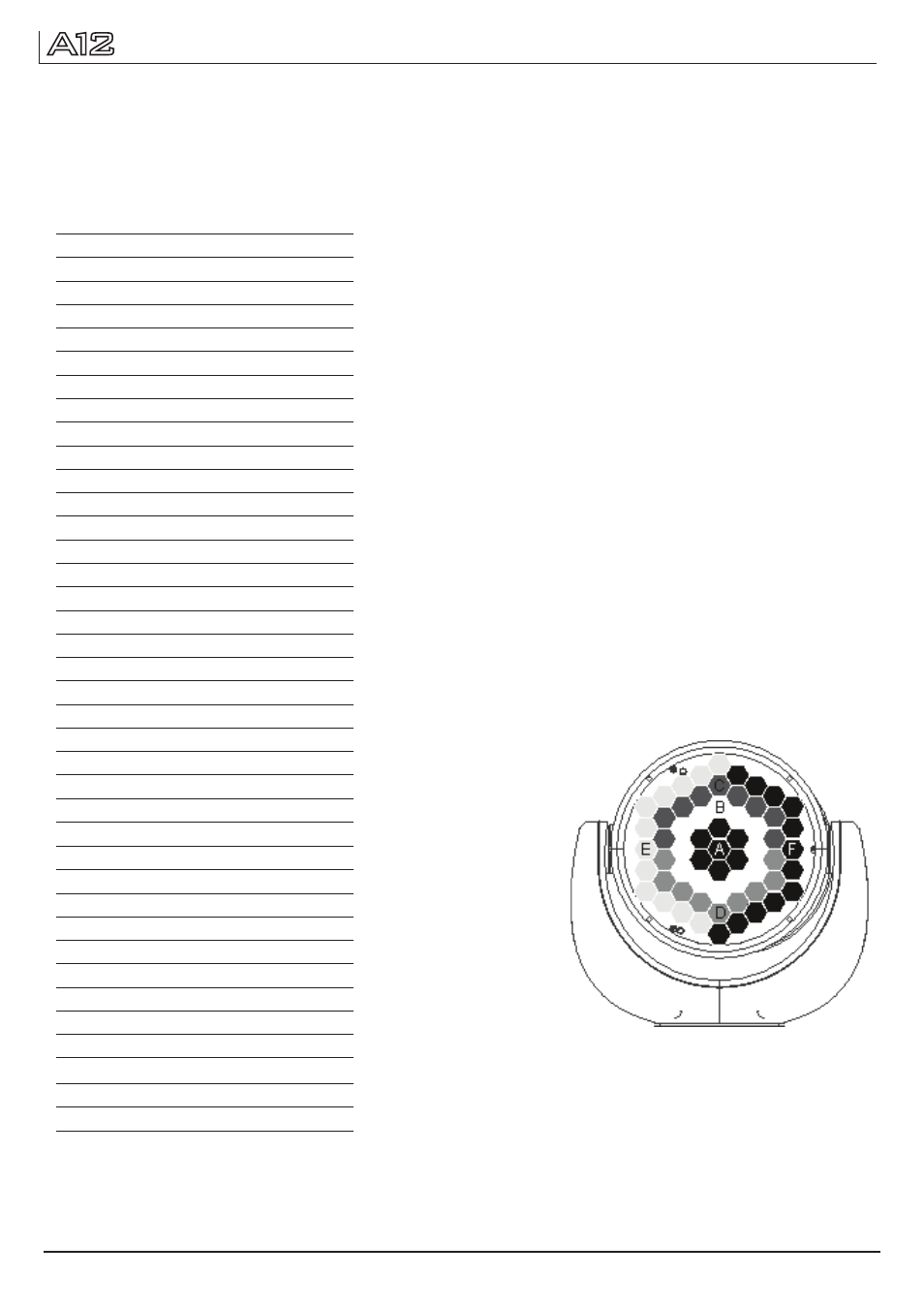

1. ring (LED middle - A)
2. ring (B)
3. ring (upper half ring - C)
3. ring (lower half ring - D)
}
}
}
}
4. ring (left half ring - E)
4. ring (right half ring - F)
}
}
