Note:
If this display will flash the protection circuit turn off speaker in case of failure or
overload. Reset will be possible if you operate power switch (9) located at back
panel again.

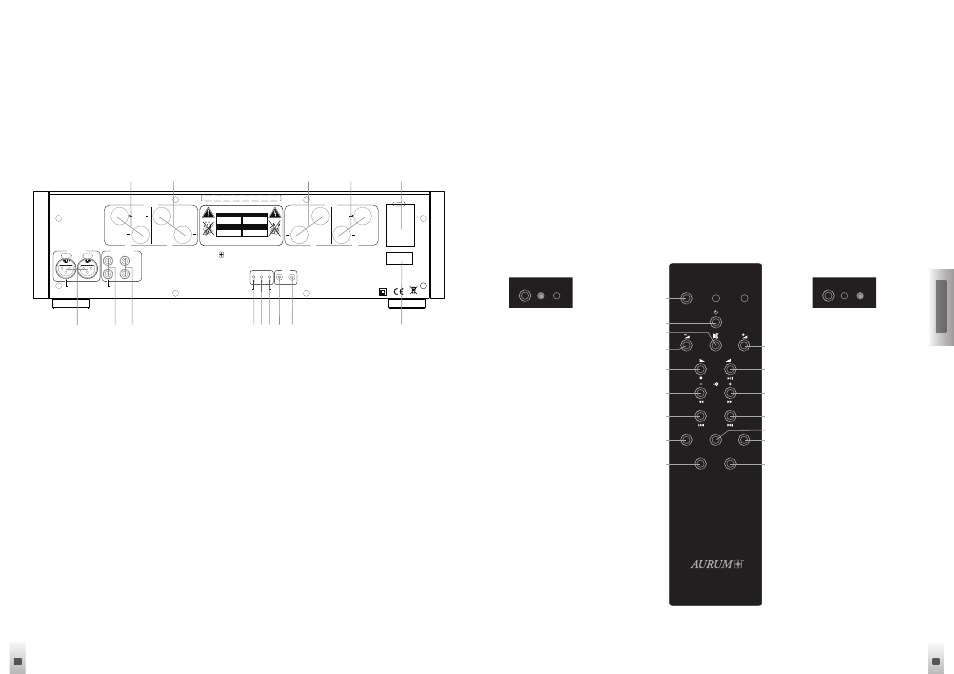

Connections on the M8 rear panel
1 Balanced In Balanced XLR Inputs
2 Unbalanced In Stereo inputs
3 RCA Stereo inputs that may also be used as outputs
4 RCA / XLR Operating mode switch to forward the input signals (2)
for inputs 1 – 3
5 Mono / Stereo Operating mode switch
6 Gain Multi-stage switch used to adjust the input sensitivity.
(+3dB / 0dB / -10dB). Please mind the information pertaining
to the installation/startup.
7 Link In Input for the 12V control connection of the P8
pre-amplifier
8 Link Out Output socket used to forward the control voltage to other
devices
9 Power switch Completely disconnects the device from the power
supply
10 Power supply socket
11 Loudspeaker output A (Left Channel)
12 Loudspeaker output B (Left Channel)
13 Loudspeaker output B (Right Channel)
14 Loudspeaker output A (Right Channel)
Note:
If the buttons 4, 5 and 6 are pressed, there is a pause of about 5 seconds until all
operating points can be stabilized and the signal is released/cleared.
RC 2 Remote Control (OPTIONAL)
The AURUM amplifiers P8 / M8 / A5 / A3 and the AURUM CD players C3 / C5 / C5 DA
may be individually controlled using the RC-2 System Remote Control.
Important note:
If you want to remotely control the amplifier or CD player functions, you must use
the SELECT button to select the relevant operating mode beforehand.
Amplifier operation
1 SELECT button
2 ON / OFF button
3 MUTE
4 Volume - minus
5 Volume - plus
6 Left balance
7 Balance plus
8 Signal source
downwards
9 Signal source
upwards
14 Level setting (for
each input using
buttons 4 & 5)
15 Display brilliance
CD operation
1 SELECT button
2 ON / OFF button
3 MUTE
4 Stop
5 Repeat / Pause
6 Search backwards
7 Search forwards
8 Scan backward
through the titles
9 Scan forward
through the titles
10 File down
11 File forward
12 Repeat (title / all)
13 Shuffle
15 Display brilliance
16 Unassigned
(optional)
Repeat
R L
Select AMP CD
Prog.
Opt.
Random
Display
Select AMP CD Select AMP CD
1
2
3
4
6
8
10
12
15
5
7
9
11
13
14
16
RC-II
On Off
max. Power Consumption: 1,2kW
Fuse: 100V / 115V: T6.3, A L250V 230V: T3.15, A L250V
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ACHTUNG
STROMSCHLAG GEFAHR NICHT ÖFFNEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR
ATENCIÓN
RIESGO DE DESCARGA ELCTRICA NO ABRIR
DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO NOT EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN.
In Out
Link
Gain
Mono / Stereo
RCA / XLR +3 / 0 / -10 dB
quadral GmbH & Co. KG - Am Herrenhäuser Bahnhof 26-28 - D-30419 Hannover
Handmade in Germany ® AURUM Balanced In
Right Left
Mono In
Unbalanced In
Right
Left
Mono In
A B
Right
+ + Mono
A B
Left
+ + Mono+
1 2 3 4 5 7 6 8 9
10 11 12 13 14
