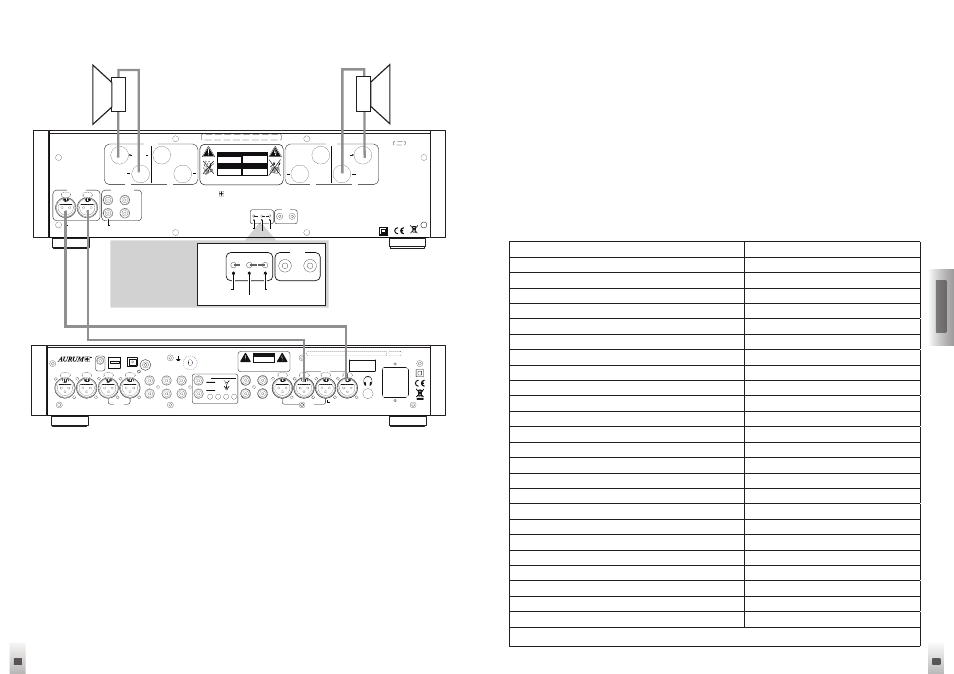

Seite 13: Ab right, Mono a b left, Mono
Stereo connection
(speaker A)
8. You may now switch your M8 and P8 devices on using the power switches.
9. Move the M8 power switch (9) and P8 power switch (13) on the back sides of the
devices to the ON position. The standby LEDs on the front panels will now come
on.
10. Now press the On / Standby button (5) on the front of the P8 pre-amplifier or
the button (2) on the remote control to start your devices. The M8 is switched on
together with the P8, if there is a LINK connection between them.
11. If there is no LINK connection, you additionally have to press button (4) on the M8
front panel.
Note:
As your P8 / M8 uses a special power-saving standby circuit, you can always
switch on / off during normal operation using the On / Standby button on the unit
or the RC-2 remote control.
The RC-2 remote control makes it easier for you to change
your settings.
Mute (button 3)
Balance setting (buttons 6 & 7)
Multi-level adjustment of display brightness (button 15 / only for P8, A5, A3)
Input level setting for all inputs (button 14)
Example: Input level adjustment
Use buttons 8 (-) or 9 (+) to select the signal source and then press button 14 (Prog.)
and use the volume buttons (4 & 5) to set up the input volume to suit yourself. Press
button 14 (Prog.) once again to save the settings.
Technical Data M8
Input sensitivity for 1 W at 4 ohms
-26 dBV
Input impedance
47 kOhm
Voltage gain
22/32/35 dB
Maximum input voltage
6 V
Maximum voltage at speaker output (Stereo)
50 V
Maximum voltage at speaker output (Mono)
70 V
Minimum loudspeaker impedance (Stereo)
2 ohms
Minimum loudspeaker impedance (Mono)
2 ohms
Stereo output power at 8 ohms
120 W
Stereo output power at 4 ohms
200 W
Mono output power at 8 ohms
240 W
Mono output power at 4 ohms
350 W
Frequency response
1 Hz - 110 kHz (-3 dB)
Harmonic distortion
< 0.03%
A-weighted signal-to-noise ratio
85 dB
Mains power connection
115V / 230V, switchable
Power consumption (in normal mode)
25 W
Power consumption (at maximum volume)
max. 1200 W
Power consumption (in standby mode)
< 0.5W
Inputs
2 pairs of RCA, 1 pairs of XLR
Speaker outputs
2 x pair
12V Link Connection In + Out (short-circuit-proof)
3.5mm Mono minijack
Protective circuits
Temperature, overload
Dimensions (W x H x D)
453 x 130 x 330 mm*
Weight
1,38kg
* Width including wooden sides, Height including feet, Depth with speaker terminals
Switch position
XLR and Stereo
On
Off
max. Power Consumption: 1,2kW
Fuse:
100V / 115V: T6.3, A L250V
230V: T3.15, A L250V
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ACHTUNG
STROMSCHLAG GEFAHR
NICHT ÖFFNEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
ATENCIÓN
RIESGO DE DESCARGA ELCTRICA
NO ABRIR
DO NOT REMOVE COVER. NO USER
-
SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
TO REDUCE THE RISK OF ELECTRICAL SHOCK OR FIRE, DO NOT
EXPOSE THIS APPLIANCE TO MOISTURE OR RAIN.
In
Out
Link
Gain
Mono / Stereo
RCA / XLR
+3 / 0 / -10 dB
