9
Power Cord Connector
WARNING: ROUTE POWER CORDS SO THAT THEY ARE NOT A TRIPPING HAZARD.
MAKE CERTAIN THE POWER CORD WILL NOT BE PINCHED OR ABRADED BY
FURNITURE. DO NOT INSTALL POWER CORDS UNDER RUGS OR CARPET.
THE POWER CORD HAS A GROUNDING PIN. IF YOUR POWER OUTLET DOES
NOT HAVE A GROUNDING PIN RECEPTACLE, DO NOT MODIFY THE PLUG.
DO NOT OVERLOAD THE CIRCUIT BY PLUGGING TOO MANY DEVICES IN TO
ONE CIRCUIT.
Configuration
Front Panel Buttons and LEDs

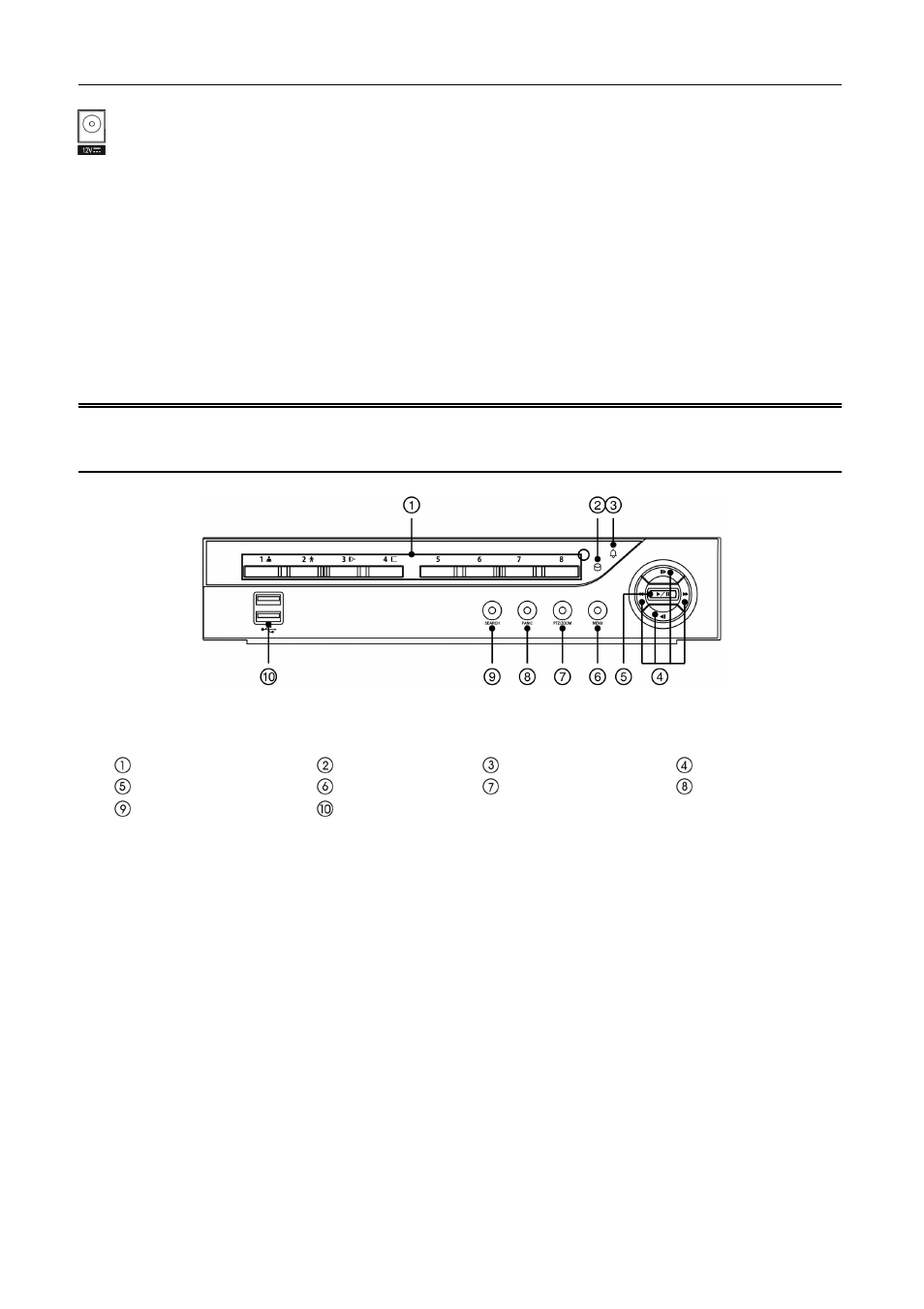

< 8-Channel DVR front panel >
Camera Buttons HDD LED Alarm LED Arrow Buttons
Play/Pause Button Menu Button PTZ/Zoom Button Panic Button
Search Button USB Connector
NOTE: A separate Alarm button on the front panel is not provided. Pressing any button on the front panel
resets alarm output including the internal buzzer when the alarm is activated. However, when you
are in the menu or PTZ mode, you have to exit the menu or PTZ mode first to reset alarm output.
The infrared sensor on the DVR is just to the left of the HDD LED. Make certain that nothing blocks
the sensor, or the remote control will not function properly.
When you use wireless communication devices (such as Wi-Fi or Bluetooth) near the DVR, the
remote control might not function properly.
You can also use a USB mouse (not supplied) to navigate through the screens and menus much
like you would on a computer.
Camera Buttons
Pressing the individual camera buttons will cause the selected camera to display full screen,
and pressing the button again toggles between different display formats. The available
formats are: PIP, 2x2, 1+5, 1+7 and 3x3. Buttons are also used to enter passwords.
In the PTZ mode, pressing the button 1 zooms in the screen and the button 2 zooms out
the screen, and pressing the button 3 focuses near and button 4 focuses far.
HDD LED The HDD LED flickers when the DVR is recording or searching video on the hard disk
drive.
Connect the connector of the adaptor to the DVR, and connect the AC power cord to the adaptor
and then to the wall outlet.
