Multi-Contact MA003 Benutzerhandbuch
Multi-Contact Relais
Advanced Contact Technology
www.multi-contact.com
1 / 8
KBT.../...-W
KST.../...-W
*Available colours: 20-29
MA003 (de_en)
Montageanleitung
MA003 (de_en)
Assembly instructions
KBT10/...-W, KBT14/...-W
KST10/...-W, KST14/...-W
KBT10/...-W, KBT14/...-W
KST10/...-W, KST14/...-W
Inhalt
Sicherheitshinweise....................................................................2
Notwendiges Werkzeug ............................................................3
Teile vorbereiten ........................................................................3
Vorbereitung der Leitung ...........................................................4
Crimpen der Kontakte ................................................................4
Buchsenmontage ......................................................................4
Steckermontage ........................................................................4
Montage der Schutzkappe ........................................................5
Montage der Halteplatte............................................................5
Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Preparation of parts ...................................................................3
Cable preparation ......................................................................4
Cimping the contacts ................................................................4
Socket mounting .......................................................................4
Plug mounting ...........................................................................4
Protective cap mounting ...........................................................5
Mounting plate HD-W ...............................................................5
*Lieferbare Farben: 20-29

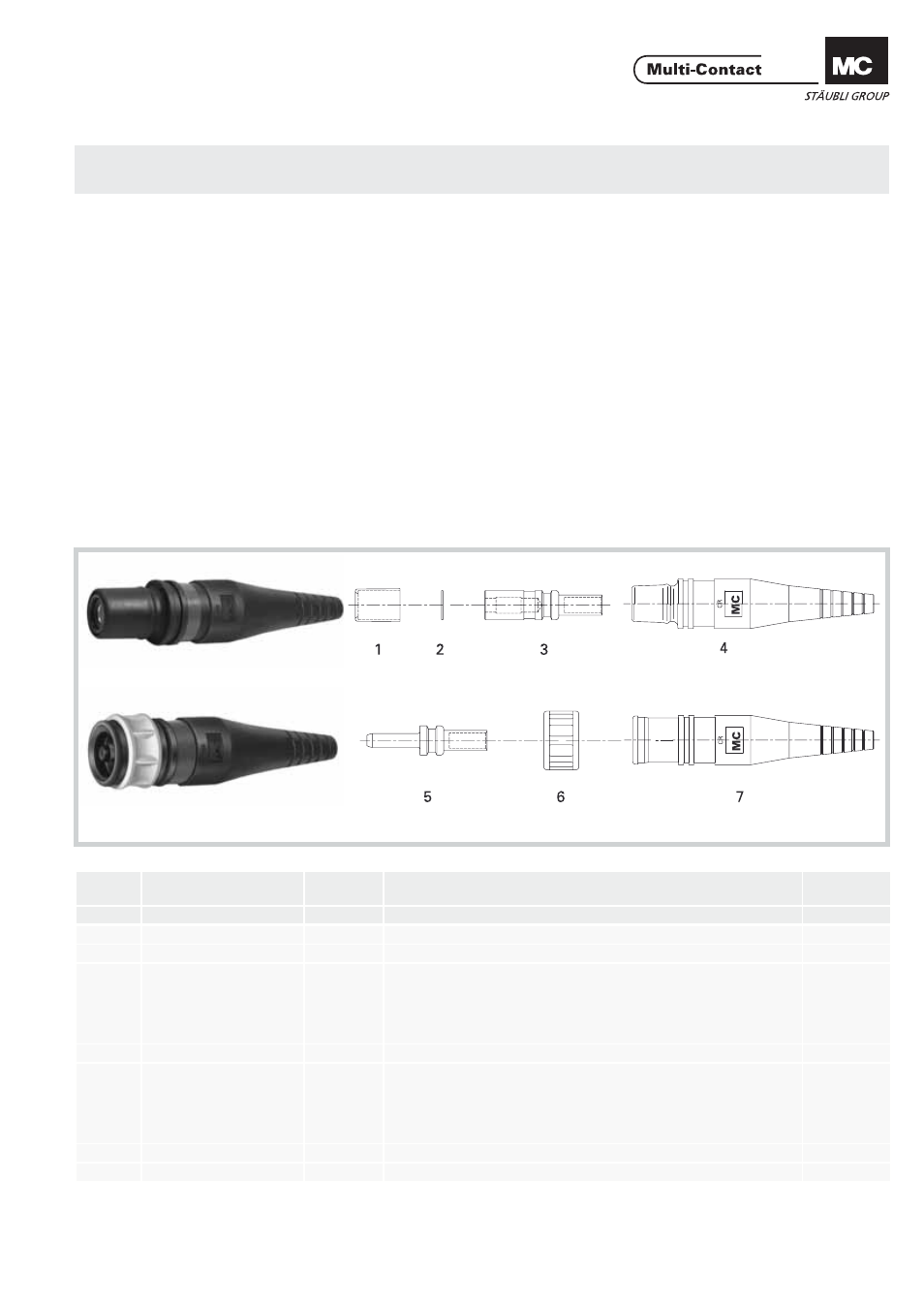

No.
Typ
Type
Bestell-Nr.
Order No.
Bezeichnung
Description
Leiter
Conductor
mm
2
1
IH14
14.5032-*
Isolierhülse/Unsulating sleeve
-
2
SCH-KBT10-W
15.5018
Schutzscheibe/Protective ring
-
3
BP10/25-W
BP10/35-W
BP10/50-W
BP14/70-W
BP14/95-W
01.0537
01.0536
01.0535
01.0539
01.0538
Buchseneinsatz/Socket insert
Buchseneinsatz/Socket insert
Buchseneinsatz/Socket insert
Buchseneinsatz/Socket insert
Buchseneinsatz/Socket insert
25
35
50
70
95
4
T10/14B-W
15.5015
Neoprentülle/Neoprene sleeve
-
5
SP10/25-W
SP10/35-W
SP10/50-W
SP14/70-W
SP14/95-W
05.0513
05.0512
05.0511
05.0521
05.0520
Stifteinsatz/Pin insert
Stifteinsatz/Pin insert
Stifteinsatz/Pin insert
Stifteinsatz/Pin insert
Stifteinsatz/Pin insert
25
35
50
70
95
6
A-T10/14S-W
15.5017
Arretier-Schiebering/Locking ring
-
7
T10/14S-W
15.5016
Neoprentülle/Neoprene sleeve
-
