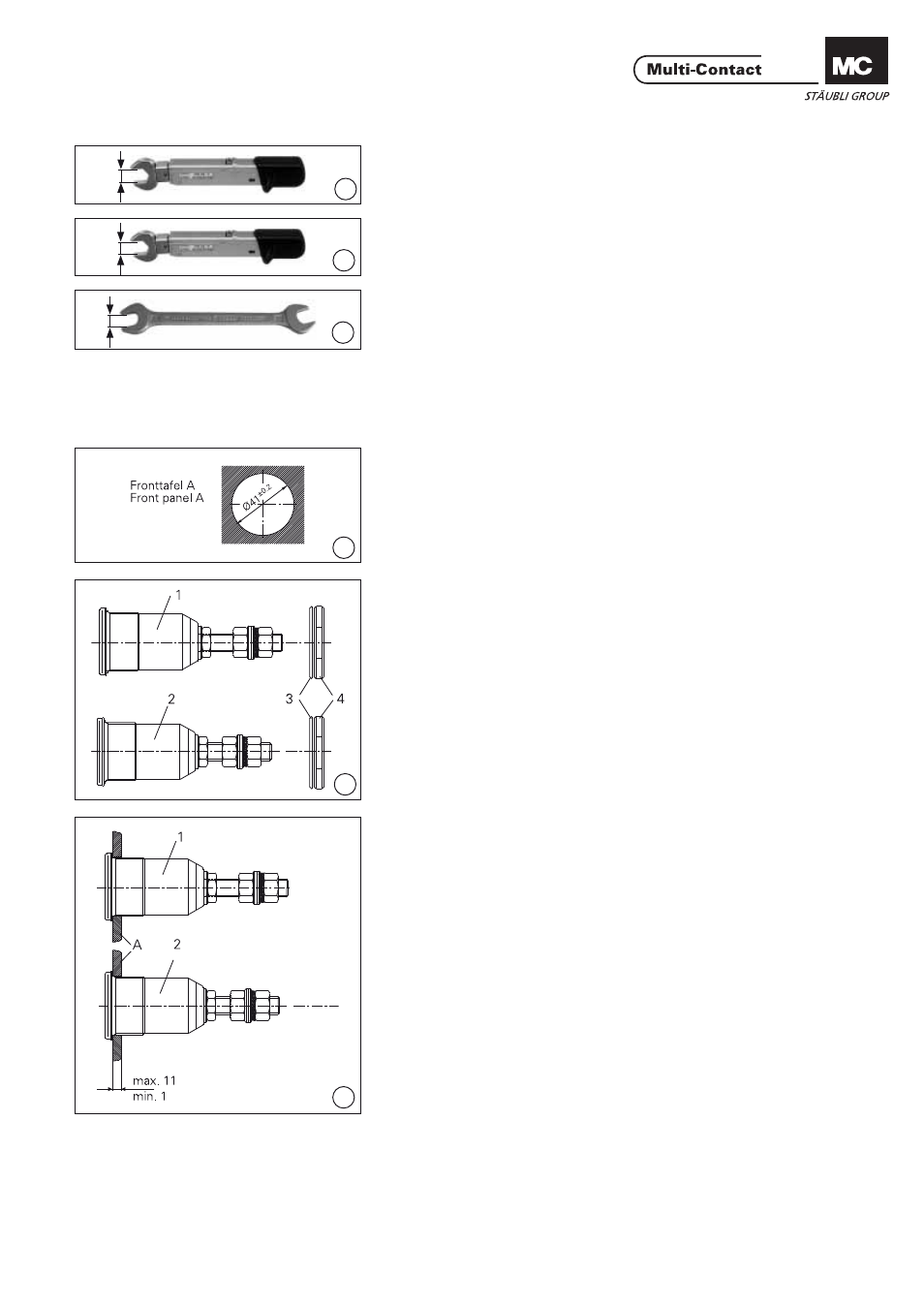

Notwendiges Werkzeug Tools required
(ill. 1)
Drehmomentschlüssel SW46, 200Nm (ill. 1)
Torque spanner 46mm A/F, 200Nm
(ill. 2)
Drehmomentschlüssel SW17, 10Nm (ill. 2)
Torque spanner 17mm A/F, 10Nm
(ill. 3)
Gabelschlüssel SW17 (ill. 3)
Open-end spanner 17mm A/F
1. Steckverbindermontage 1. Connector assembly
(ill. 4)
Fronttafel A gemäss Bohrplan bohren. (ill. 4)
Drill front panel A according to drilling
plan.
(ill. 5)
6kt.-Mutter (4) und PUR-Ring (3) von
Buchse (1) bzw. Stecker (2)
demontieren. Farbring (wenn
vorhanden) auf Buchse/Stecker schie-
ben. (ill. 5)
Remove ring nut (4) and PUR ring (3)
from socket (1) or plug (2). If present,
slip the colour ring onto the
socket/plug.
(ill. 6)
Buchse (1) bzw. Stecker (2) von vorne
in die Fronttafel (A) stecken. (ill. 6)
Insert socket (1) or plug (2) into front
panel (A).
