Typ
Type
Bestell-Nr.
Order No.
Bezeichnung
Description
Leiterquerschnitt
Cable cross section
Sel-No.
mm
2
AWG
M-CZ
18.3800
Crimpzange / Crimping pliers
MES-CZ
18.3801
Locator
0,14
26
1
MES-CZ
18.3801
Locator
0,2
24
2
MES-CZ
18.3801
Locator
0,34
22
3
MES-CZ
18.3801
Locator
0,5
20
4
MES-CZ-CT1
18.3804
Locator
0,25
22
3
MES-CZ-CT1
18.3804
Locator
0,5
20
4
MES-CZ-CT1
18.3804
Locator
0,75
20
4
MES-CZ-CT1,5
18.3805
Locator
0,5
20
4
MES-CZ-CT1,5
18.3805
Locator
1
18
5
MES-CZ-CT1,5
18.3805
Locator
1,5
16
6
MES-CZ-CT3
18.3806
Locator
2,5
14
8
MES-CZ-CT3
18.3806
Locator
4
12
8

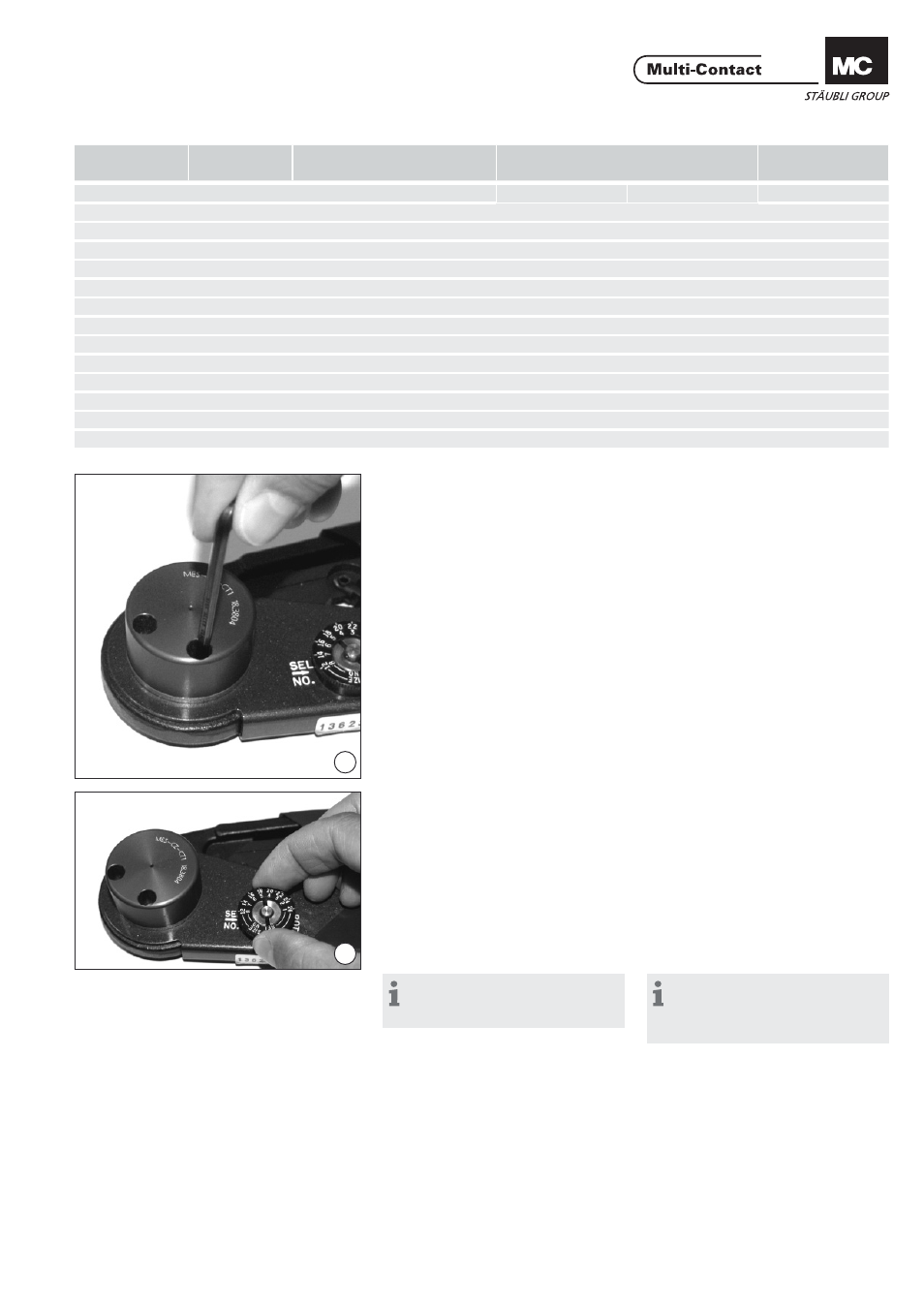

(ill. 1)
Locator befestigen mittels mitgeliefer-
tem 6-kant Schlüssel.
(ill. 1)
Fasten the locator with the supplied
hexagonal wrench.
(ill. 2)
Selektor einstellen.
(ill. 2)
Set the selector.
Hinweis:
Crimphinweise und Wartung
gemäss Hersteller-Anleitung!
Note:
For information and maintenance,
see also the manufacturer instruc-
tions.
