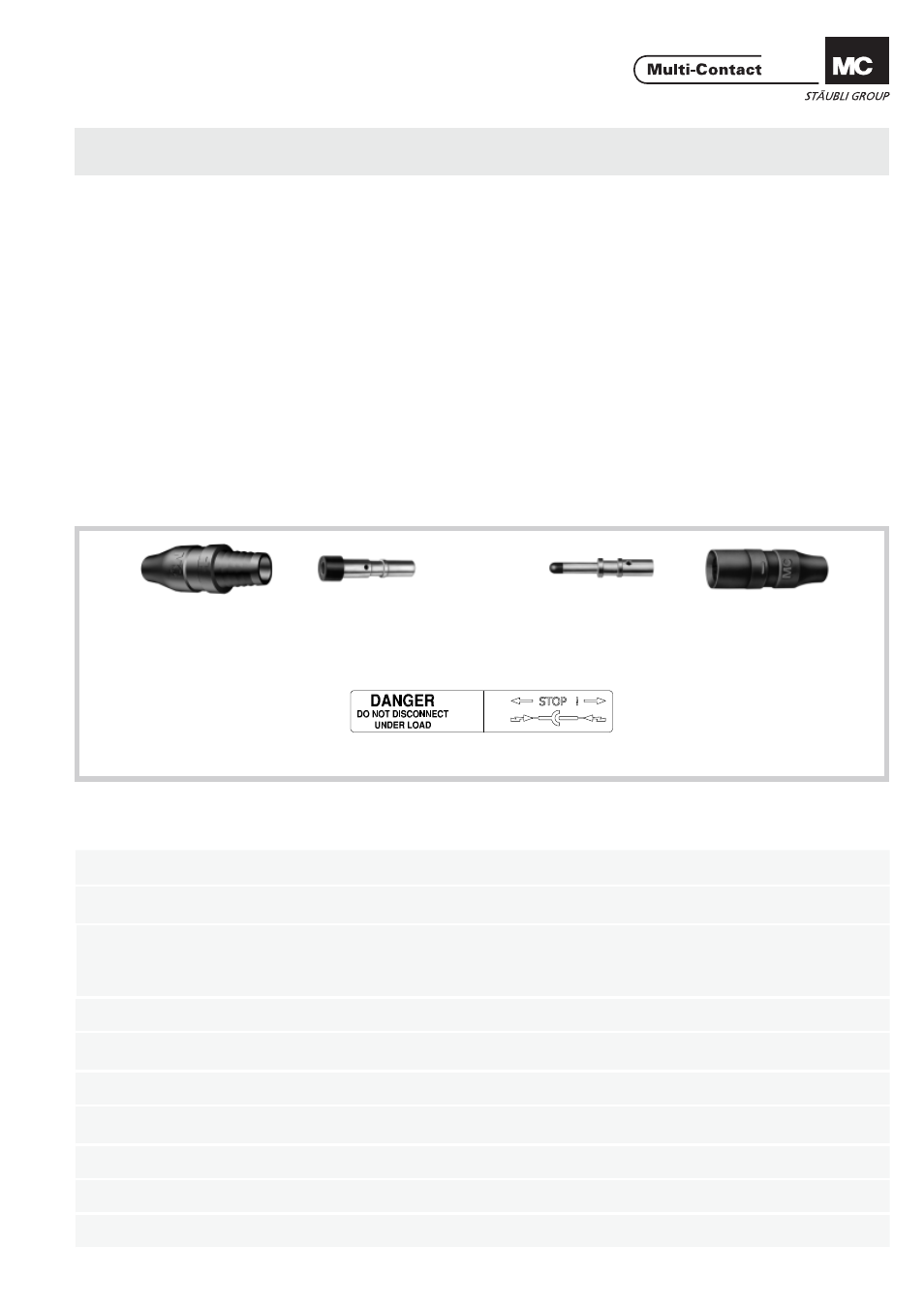

Multi-Contact MA207 - Handbuch

Advanced Contact Technology
www.multi-contact.com 1 / 8
PV-T3.../B
PV-T3.../B-UR* PV-T3.../S
PV-T3.../S-UR* PV-BP3/... PV-SP3/...
* UL fi le E343181 * UL fi le E343181
MA000 (de_en)
Montageanleitung MA000 (de_en)
Assembly instructions MA207 (de_en)
Montageanleitung MA207 (de_en)
Assembly instructions
PV-Kupplungsbuchse PV-KBT3...
PV-Kupplungsstecker PV-KST3... PV female cable coupler PV-KBT3...
PV male cable coupler PV-KST3...
Inhalt
Sicherheitshinweise....................................................................2
Erforderliches Werkzeug ...........................................................3
Anschlussleitung .......................................................................4
Vorbereitung der Leitung ...........................................................4
Crimpanschlüsse .......................................................................4
Crimpen .....................................................................................5
— mit Crimpzange PV-CZM-16100A ..........................................5
— mit Crimpzange PV-CZ ...........................................................6
Montage ....................................................................................6
Leitungsführung ........................................................................8
Verbindung ................................................................................8
Content
Safety Instructions ......................................................................2
Tools required ............................................................................3
Connecting cable .......................................................................4
Cable preparation ......................................................................4
Crimp connections ....................................................................4
Crimping ....................................................................................5
— with crimping pliers PV-CZM-16100A ....................................5
— with crimping pliers PV-CZ .....................................................6
Assembly ...................................................................................6
Cable routing .............................................................................8
Engagement ..............................................................................8
Aufkleber
Sticker
Technische Daten Technical data
Steckverbindersystem Connector system Ø 3mm
Bemessungsspannung Rated voltage
1000V DC (IEC)
600V DC (UL)
Bemessungsstrom Rated current
20A (IEC: 2,5 – 4mm 2 )
(UL: 14AWG, 12AWG)
30A (IEC: 6mm 2 )
(UL: 10AWG)
Prüfspannung Test voltage 6kV (50Hz, 1min.)
Umgebungstemperaturbereich Ambient temperature range
-40°C...+90°C (IEC)
-40°C...+75°C (UL)
Obere Grenztemperatur Upper limiting temperature 105°C (IEC)
Schutzart, gesteckt
ungesteckt
Degree of protection, mated
unmated
IP67
IP2X
Überspannungskat.
Verschmutzungsgrad Overvoltage category
Pollution degree
CATIII/2
Kontaktwiderstand der Steckverbinder Contact resistance of plug connectors 0,5mΩ
Schutzklasse Safety class II
