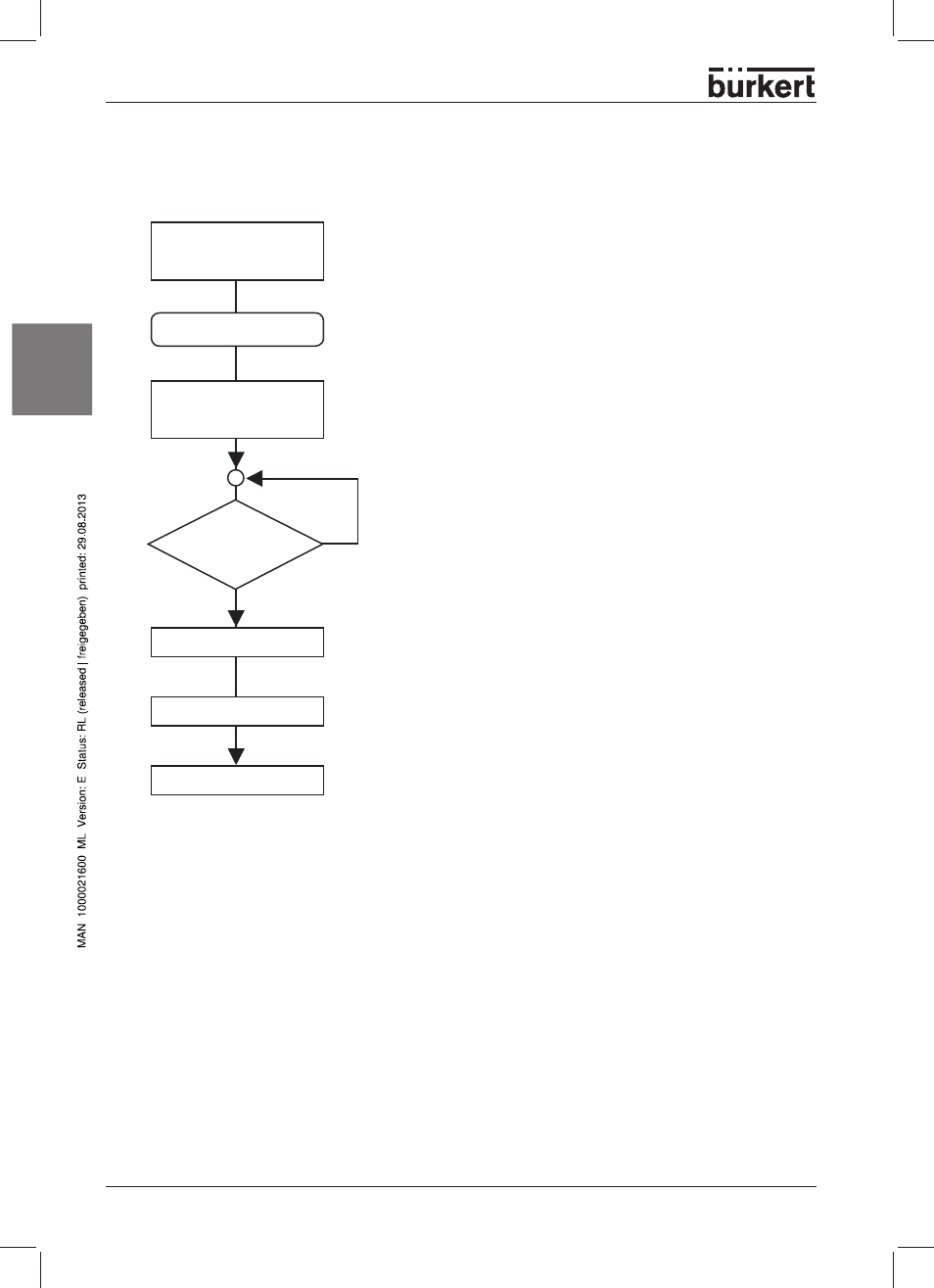

Process Diagram: Stop
STOP:
* C10 (Start/Stop) = 0
OR
* C13 (Key-operated switch) = 1 AND SELECT key
From automated-conveyance
program loop
Stop
Stop lock
Sealing air CLOSED
n
C11 (Empty run) = 0 ?
Conveying valve CLOSED
System ready to operate
Basic function
